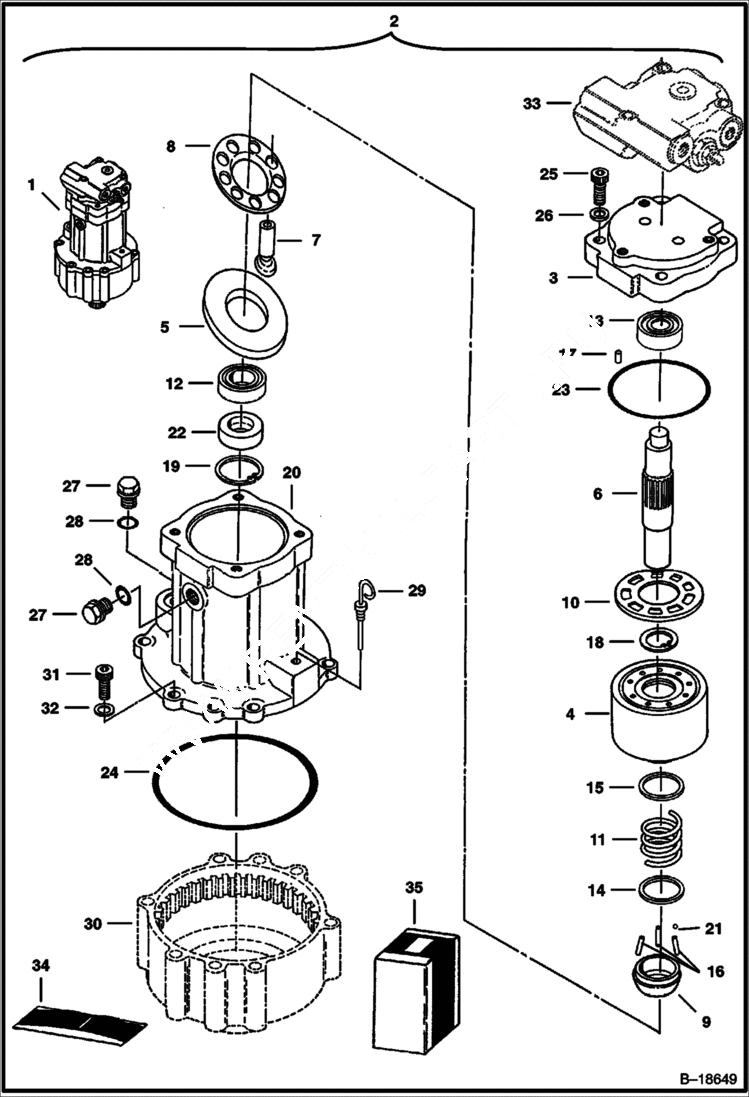

Запчасти Bobcat 231 SWING MOTOR HYDRAULIC SYSTEM

1

MOTOR See Illustration SWING MOTOR/ B18650 See Illustration SWING MOTOR/ C3192 NLA - swing - W/Ref. 2-33 - Also includes Ref. 2 on Ill. C3192 & B18650 - Was 6655394 - A

2

MOTOR NSS - Assy. - W/Ref. 3-29 - Order Ref. 1 - Was 6655983 - A

3

6655985

BLOCK Port

4

BLOCK NSS - Cylinder - See Ref. 35

5

6655987

PLATE

6

6655986

SHAFT

7

PISTON NSS - See Ref. 35

8

6655988

RETAINER

9

6655989

HOLDER

10

6655990

PLATE Valve

11

6655993

SPRING

12

6655991

BEARING

13

6655992

BEARING

14

6655994

COLLAR

15

6655995

COLLAR

16

6655996

PIN 0.858'' (21,8mm) long

17

6653019

PIN 0.55'' (14mm) long

18

6655997

SNAP RING

19

6653162

SNAP RING

20

6655984

CASE

21

BALL NLA - Was 6653035 - A

22

SEAL NSS - See Ref. 34

23

O-RING NSS - See Ref. 34

24

O-RING NSS - See Ref. 34

25

6655998

BOLT

26

6656000

WASHER Was 6655990 - D

27

6655978

PLUG

28

6653442

O-RING

29

6655999

DIPSTICK

30

HOUSING See Illustration SWING MOTOR/ C3192 lower

31

6655976

BOLT

32

6655977

WASHER

33

VALVE See Illustration SWING MOTOR/ B18650

34

6655979

SEAL KIT W/Ref. 22-24

35

KIT NLA - Cylinder block - W/Ref. 4 & 7 - Was 6655981 - A
