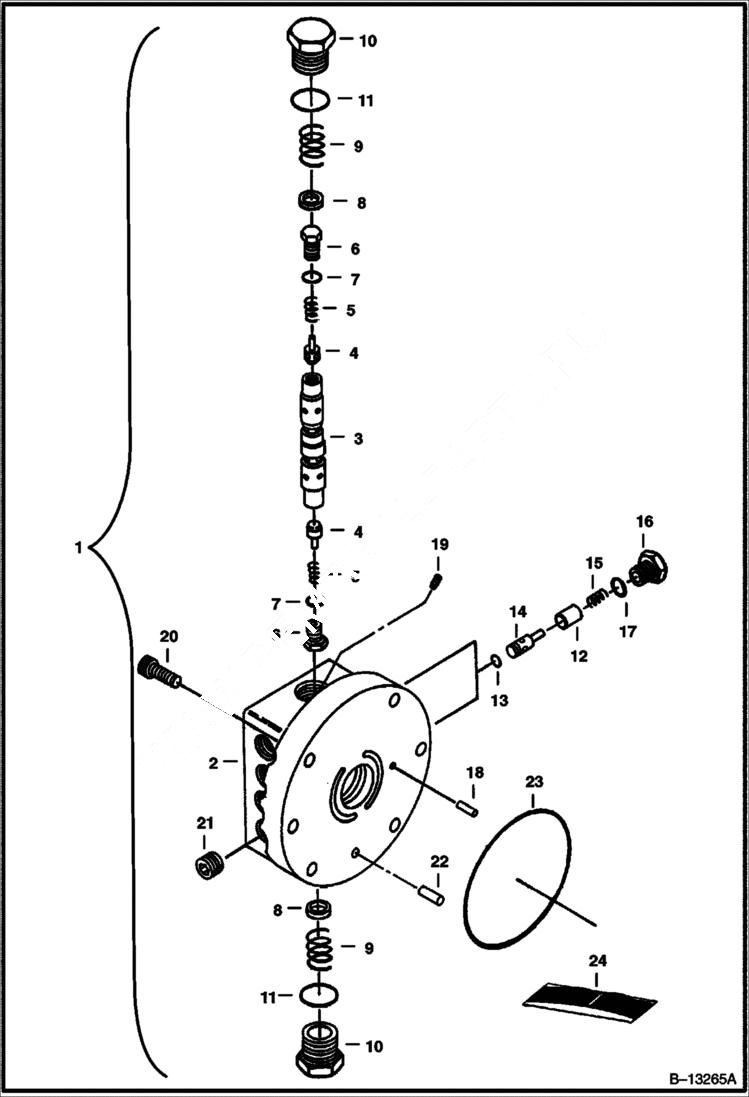

Запчасти Bobcat 231 TRAVEL MOTOR (S/N 11073 & Above) HYDRAULIC SYSTEM

1

See BTIE-051 NLA - Assy - W/Ref. 2-23 - Also includes Ref. 2-49 on Ill. D-2053A - WAS 6656274 - A

2

HOUSING NSS

3

6657163

SPOOL

4

6657164

CHECK VALVE

5

6657165

SPRING

6

6657166

PLUG

7

6670221

O-RING Was 6657167 - A

8

6657168

SEAT

9

6657169

SPRING

10

6657170

PLUG

11

6670222

O-RING Was 6657171 - A

12

6657172

GUIDE

13

6670246

O-RING Was 6657173 - A

14

6657174

POPPET

15

6657175

SPRING

16

6657176

PLUG

17

6670223

O-RING Was 6653442 - A

18

6657177

PIN

19

6657178

PLUG W/Orifice

20

BOLT NLA - Was 6657179 - A

21

6657180

PLUG

22

6657159

PIN

23

6670226

O-RING Was 6657160 - A

24

6670154

SEAL KIT See Illustration TRAVEL MOTOR/ D2053A Ref. 3, 5, 6, 8, 32, 37 - Also includes Refs. 7, 11, 13, 17 & 23 on this Illustration

24

6670155

SEAL KIT See Illustration TRAVEL MOTOR/ D2053A Ref. 5, 8, 32 & 37 - Also Includes REFS. 7, 11, 13, 17 & 23 on this Illustration - DOES NOT INCLUDE REFS. 3 & 6 ON ILL. D-2053A
