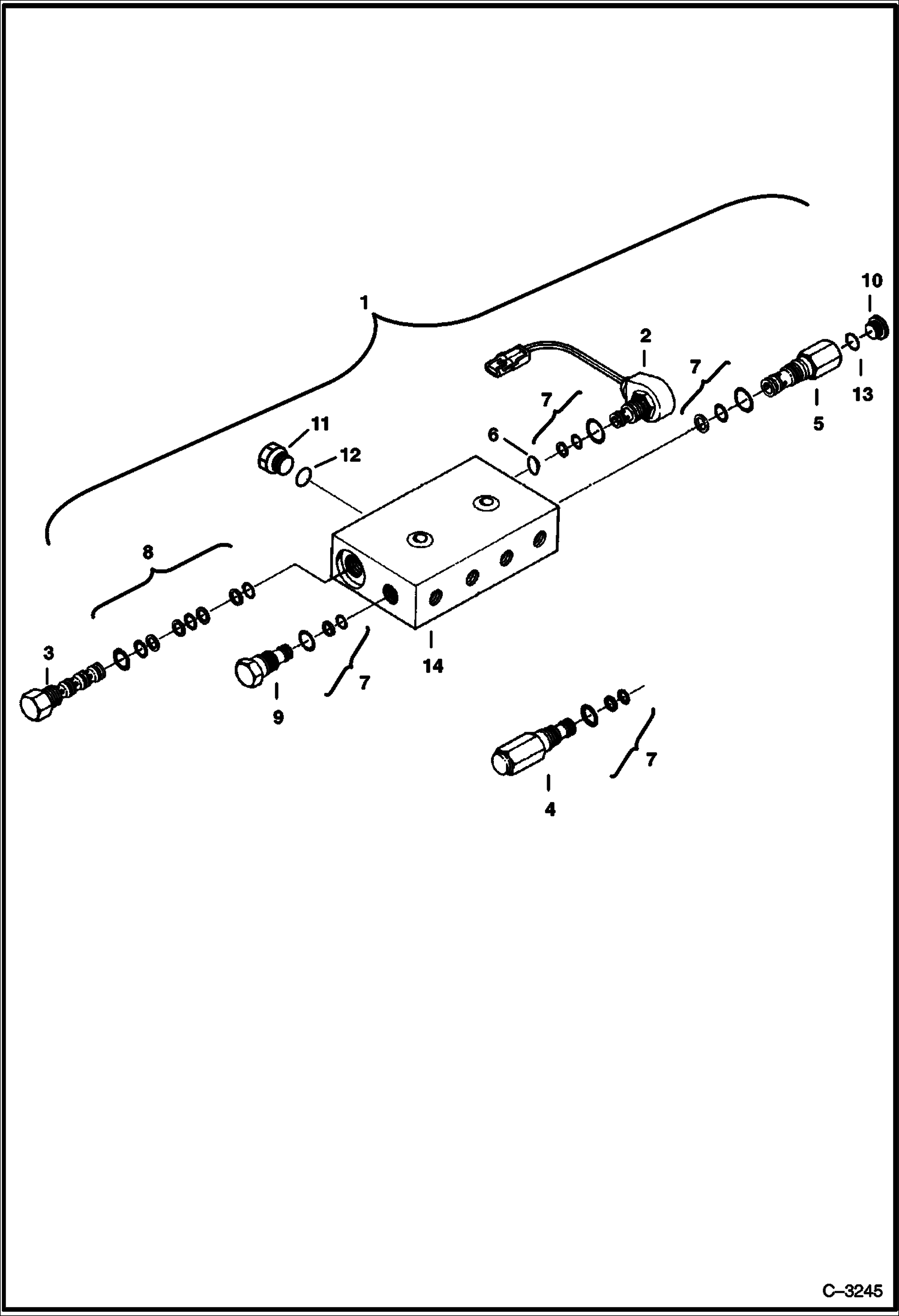

Запчасти Bobcat 231 SOLENOID VALVE HYDRAULIC SYSTEM

1

6657013

VALVE W/Ref.2,3 & 5-14 - Was 6655675 - A

2

6657242

VALVE

3

6657243

COMPENSATOR

4

RELIEF VALVE NLA - Replaced by Ref. 9

5

6657244

RELIEF VALVE W/Ref. 12 & 13

6

6657245

PLATE Orifice .130''

7

6660338

SEAL KIT Viton - Was 6657247 - A

8

6660798

SEAL KIT Viton - Was 6657248 - A

9

6657246

ORIFICED PLUG

10

PLUG NLA - Included W/Ref. 5

11

90KN1

PLUG Also Orde Ref. 12 - Was 47K000001B - A

12

6660800

O-RING Viton

13

6660799

O-RING Included W/Ref. 5 - viton

14

6663965

HOUSING
