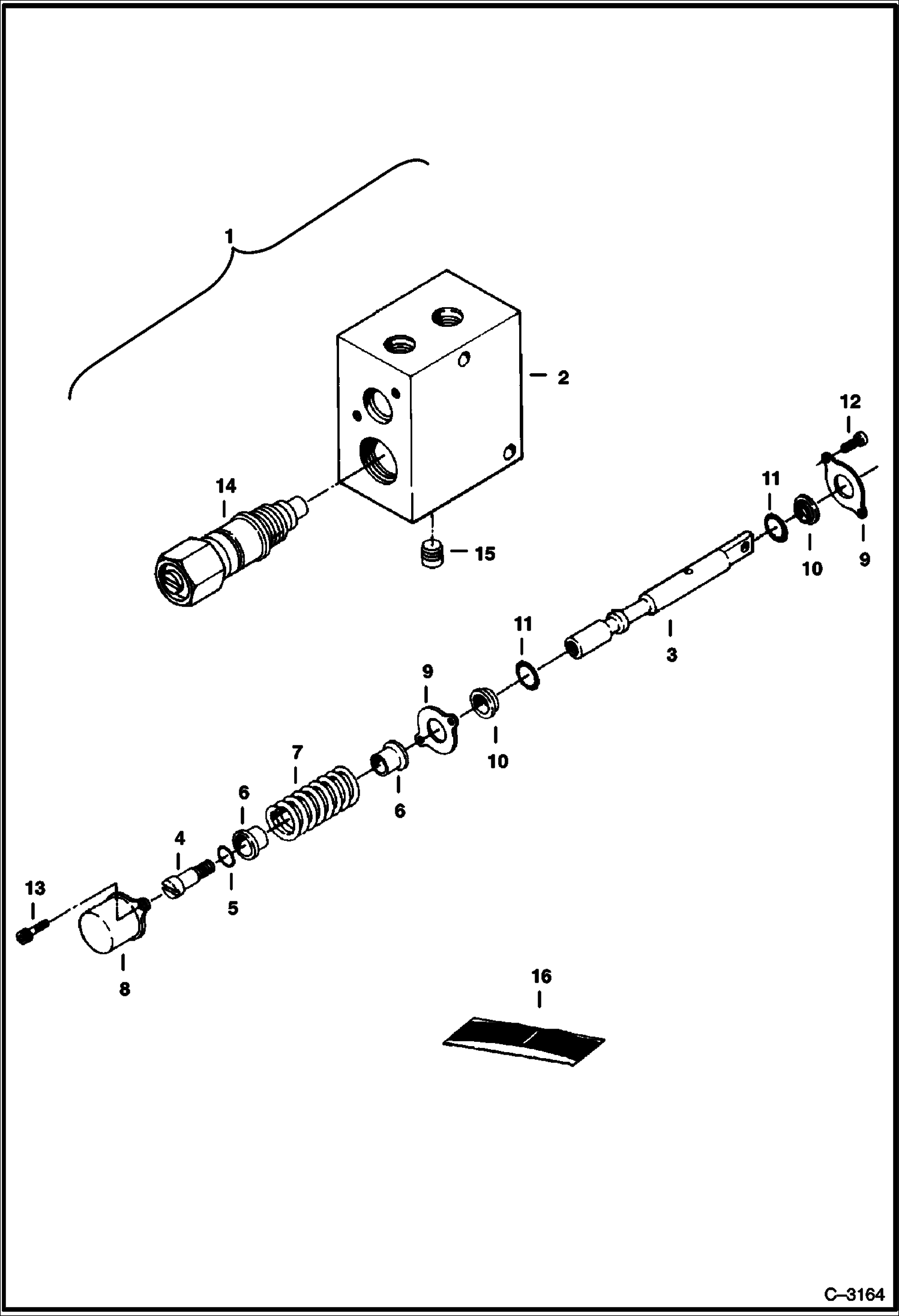

Запчасти Bobcat 231 UNLOAD VALVE HYDRAULIC SYSTEM

1

6654121

VALVE W/Ref. 2-15

2

HOUSING NSS

3

SPOOL NSS

4

BOLT NSS

5

O-RING NSS

6

RETAINER NSS

7

SPRING NSS

8

CAP NSS

9

PLATE NSS

10

WIPER NSS

11

O-RING NSS

12

SCREW NSS

13

BOLT NSS

14

RELIEF VALVE NSS

15

PLUG NSS

16

SEAL KIT NSS - Includes Ref. 10 & 11
