SWIVEL JOINTS FITTINGS

Запчасти Bobcat 231 SWIVEL JOINTS FITTINGS HYDRAULIC SYSTEM

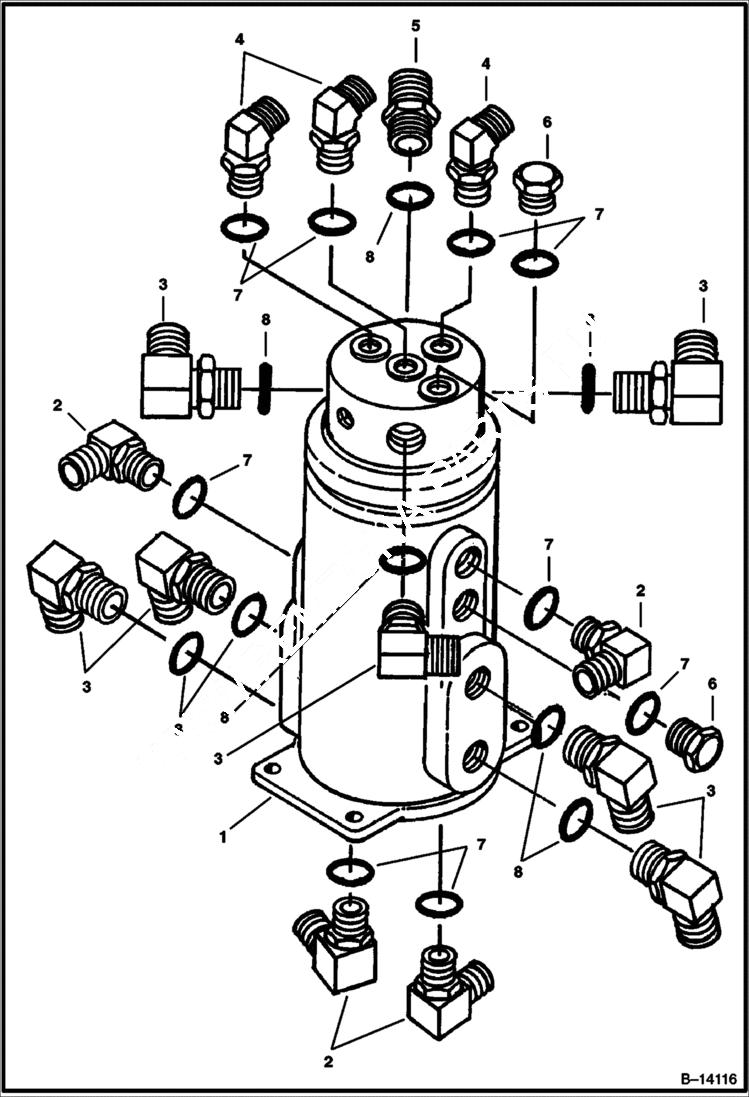

Схема запчастей Bobcat 231 - SWIVEL JOINTS FITTINGS HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

2

ELBOW NLA - W/Ref. 4 - Was 6665110 - A

3

ELBOW NLA - W/Ref. 8 - Was 6665112 - A

4

ELBOW NLA - W/Ref. 7 - Was 6665115 - A

5

6665113

CONNECTOR W/Ref. 8

6

47K5

PLUG W/Ref. 7

7

79K6

O RING 10

8

79K8

O RING 10
