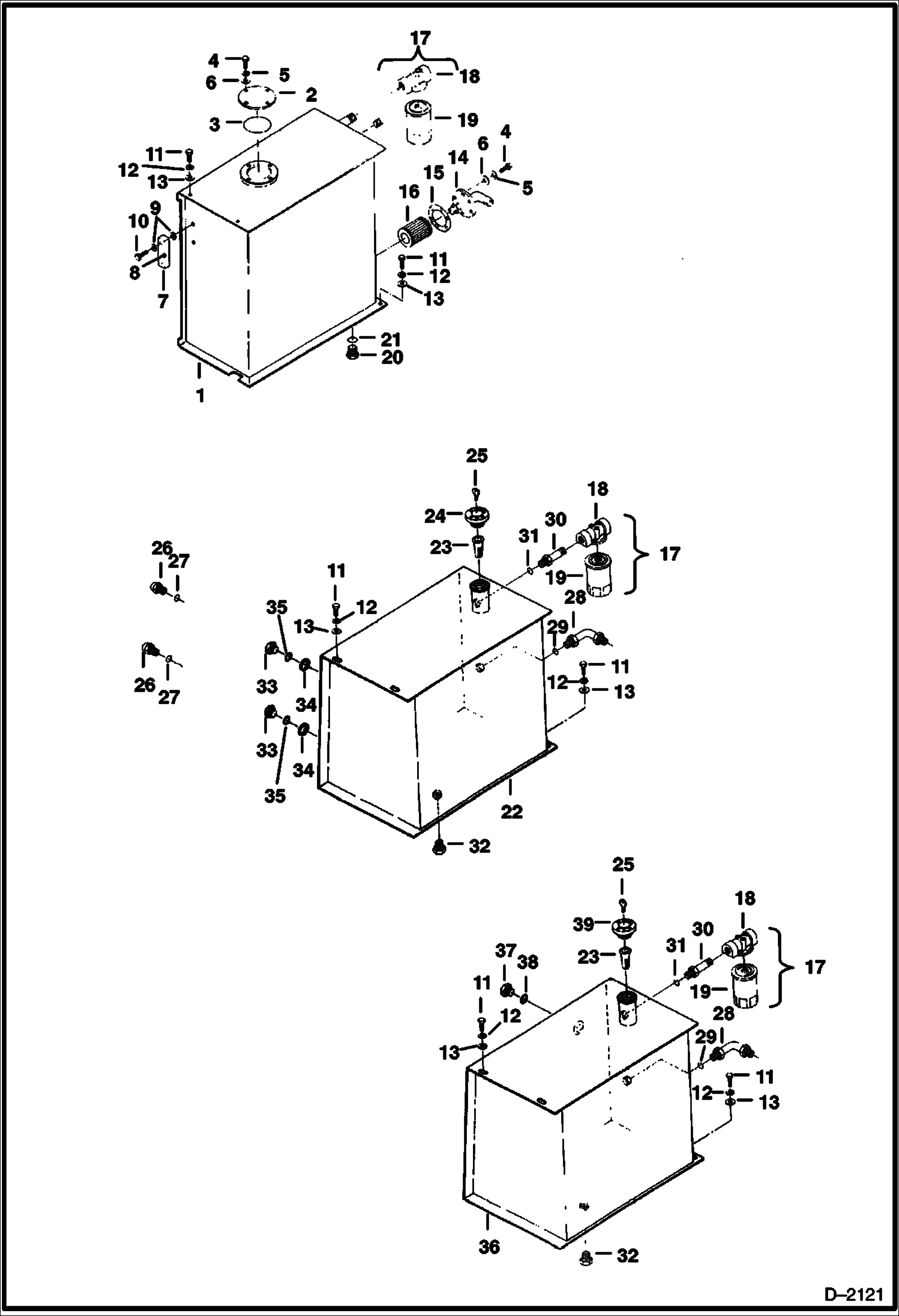

Запчасти Bobcat 231 HYDRAULIC TANK & FILTER HYDRAULIC SYSTEM

1

TANK NLA - Order Ref. 28, 30, 36-39 and Elbow 17K-5, Hose 6700215 & Adapter 6654377 - Was 6536086 - A

2

6535149

PLATE

3

O-RING NLA - Was 6534254 - A

4

1CM820

BOLT

5

6EM80

WASHER, SPRING

6

15EM80

WASHER

7

6535146

GAUGE Sight - Ref. 7-10

8

BALL NSS

9

GASKET NSS

10

BOLT NSS

11

1CM1020

BOLT

12

6EM100

WASHER

13

15EM100

WASHER

14

6535514

PLATE

15

6534834

GASKET

16

6534264

SCREEN Filter

17

FILTER NLA - assy - Ref. 18 & 19 - Was 6655072 - A

18

6655073

HEAD

19

6653336

ELEMENT

20

6534265

PLUG W/Ref. 21

21

6655247

O-RING

22

TANK NLA - W/Ref. 32 - Order Ref. 36-39 - Was 6536183 - A

23

7120881

SCREEN, FILLER Was 6569219 - A

24

6661696

CAP, FUEL LOCKING W/Ref. 25 - Was 6654373 - A

25

6654374

KEY

26

BULB NLA - Sight Gauge - W/Ref. 27 - Order Ref. 33 (2), 34 (2) & 35 (2)

27

O-RING NLA

28

6656340

ELBOW W/Ref. 29

29

91F2

O-RING Was 91F000012B - A

30

6535626

ADAPTER W/Ref. 31

31

79K16

O RING 10 Was 91F000010B - A

32

40K12

PLUG

33

6539386

SIGHT GAUGE

34

6539342

WASHER

35

79K10

O RING 10

36

TANK NLA - W/Ref. 32 - Was 6539307 - A

37

6665915

GAUGE Sight gauge - Was 6656338 - A

38

79K12

O RING 10

39

6659249

CAP Locking - vented - W/Ref. 25 - intake .75 PSI, exhaust 1-1/2 PSI
