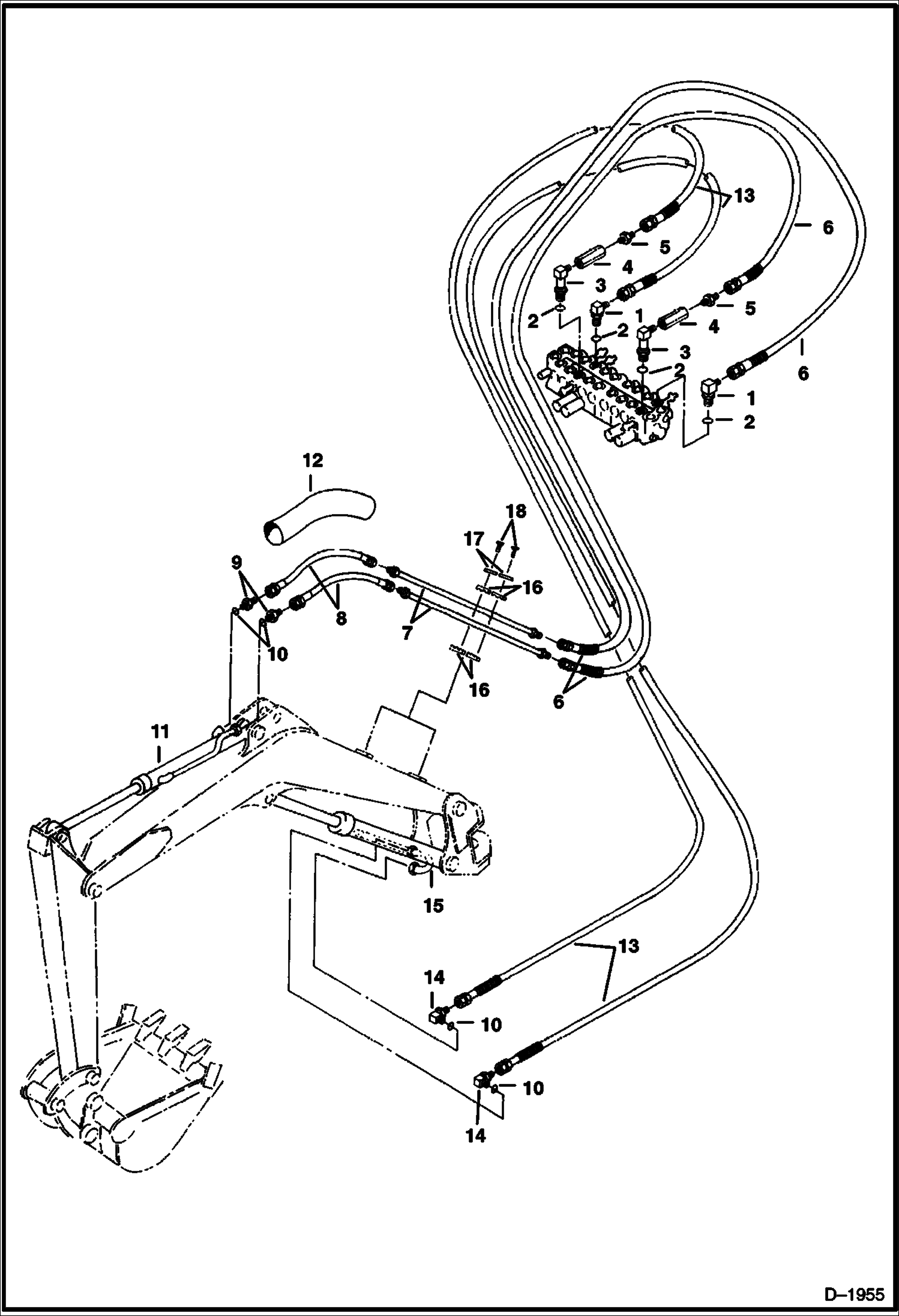

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Arm & Boom) HYDRAULIC SYSTEM

1

6535578

ELBOW W/Ref. 2

2

79K8

O RING 10

3

6535583

ELBOW W/Ref. 2

4

6535584

RESTRICTOR 2.5 mm I.D. (.01'')

5

6535035

ADAPTER

6

6534273

HOSE

7

6536073

TUBE

8

6534290

HOSE

9

6535593

ADAPTER W/Ref. 10

10

6655250

O-RING

11

CYLINDER See Illustration ARM CYLINDER/ B13198 NLA - arm - Was 6655582 - A

12

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID - A

13

HOSE NLA - Was 6655107 - A

14

6535037

ELBOW W/Ref. 10

15

CYLINDER See Illustration BOOM CYLINDER/ B13197 NLA - boom - Was 6655581 - A

16

6577697

CLAMP Was 6701893 - B

17

6652521

PLATE

18

17C520

BOLT 5 Was 17C000524B - A
