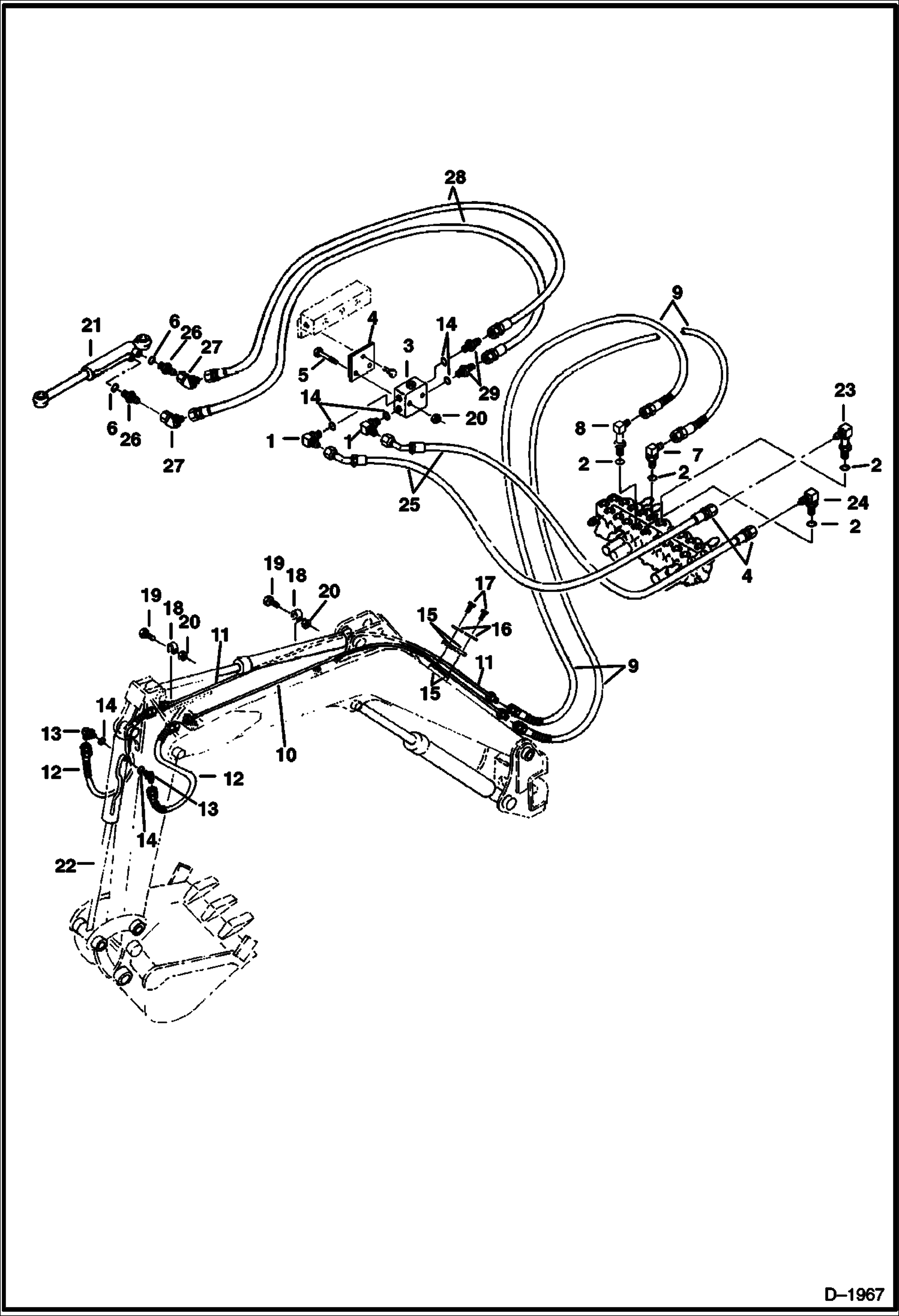

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Bucket & Boom Swing) HYDRAULIC SYSTEM

1

17K5

ELBOW W/Ref. 14

2

79K8

O RING 10

3

6630527

VALVE

3

6660645

SEAL KIT

4

6536772

BRACKET

5

1CM850

BOLT

6

6655244

O-RING

7

6535578

ELBOW W/Ref. 2

8

ELBOW NLA - W/Ref. 2 - Was 6535583 - A

9

6655108

HOSE

10

6536075

TUBE L.H.

11

6536074

TUBE R.H.

12

6655119

HOSE

13

6535037

ELBOW W/Ref. 14

14

79K6

O RING 10

15

6577697

CLAMP Was 6701893 - B

16

6652521

PLATE

17

17C520

BOLT 5 Was 1C000524B - A

18

30H41

CLIP

19

1CM835

BOLT Was 1CM00834B - A

20

1DM8

NUT

21

6655126

CYLINDER See Illustration SWING CYLINDER/ B18654 boom swing

22

6655583

CYLINDER See Illustration BUCKET CYLINDER/ B18653 bucket

23

6812820

ELBOW W/Ref. 2 - Was 6511914 - A

24

17K6

ELBOW W/Ref. 2

25

6536770

HOSE

26

6654895

ADAPTER W/Ref. 6

27

12K5

ADAPTER 45 degrees

28

6536771

HOSE

29

15K5

FITTING W/Ref. 14
