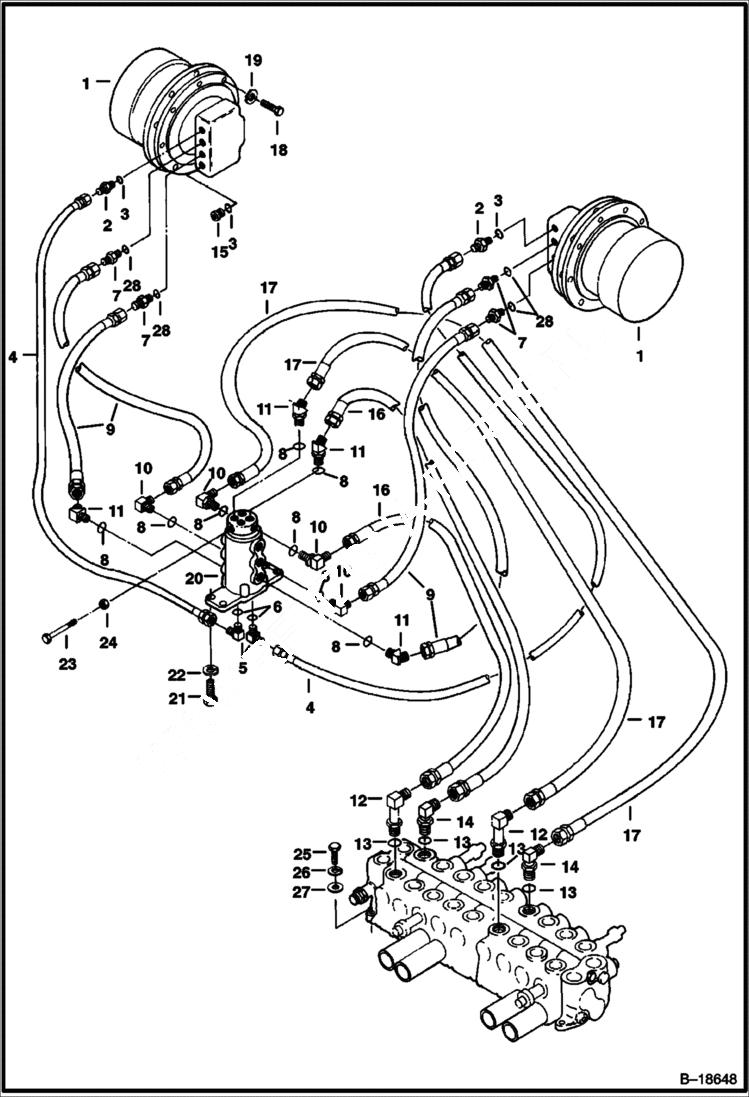

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Valve to Travel Motors) HYDRAULIC SYSTEM

1

MOTOR See Illustration TRAVEL MOTOR/ D2053A See Illustration TRAVEL MOTOR/ D2053

2

6535078

ADAPTER W/Ref. 3

3

6655244

O-RING

4

HOSE NLA - Was 6655103 - A

5

6535567

ELBOW See Illustration SWIVEL JOINTS FITTINGS/ B14116 for fittings if swivel joint has been changed to P/N 6800524 - W/Ref. 3

6

6655250

O-RING

7

6536077

ADAPTER W/Ref. 28

8

79K6

O RING 10

9

6655101

HOSE

10

6535037

ELBOW W/Ref 8 for fittings if swivel joint has been changed to P/N 6800524 - W/Ref. 8

11

6535568

ELBOW See Illustration SWIVEL JOINTS FITTINGS/ B14116 for fittings if swivel joint has been changed to P/N 6800524 - W/Ref. 8

12

6535579

ELBOW W/Ref. 13

13

79K8

O RING 10

14

6535578

ELBOW W/Ref. 13

15

6655071

PLUG W/Ref. 3

16

6587785

HOSE Was 6534272 - A

17

6587786

HOSE Was 6655104 - A

18

1CM1230

BOLT

19

6EM120

WASHER

20

SWIVEL JOINT See Illustration SWIVEL JOINT/ C3160 See BTIE-027 NLA - Was 6534250 - A

20

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

21

1CM1230

BOLT

22

6EM120

WASHER

23

BOLT See Illustration SWIVEL JOINT/ PE3057 NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

24

NUT Use W/NLA 6536147 screw - Was 6536748 - B

25

1CM1030

BOLT

26

6EM100

WASHER

27

15EM100

WASHER

28

6655245

O-RING
