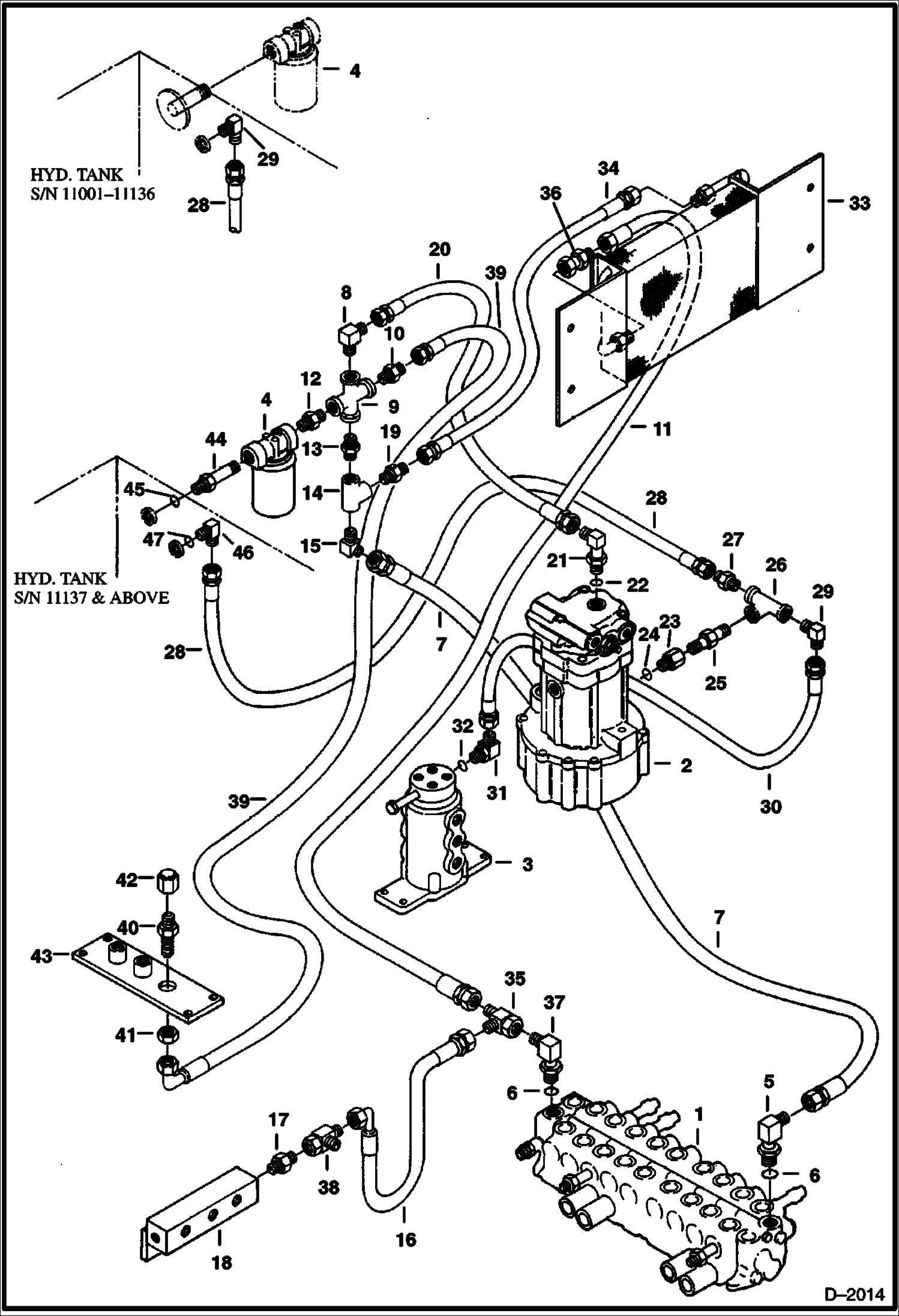

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Valve to Tank) HYDRAULIC SYSTEM

1

6655396

VALVE See Illustration CONTROL VALVE/ B13034 control

2

6655394

MOTOR See Illustration SWING MOTOR/ C3192 swing

3

JOINT See Illustration SWIVEL JOINT/ C3160 See BTIE-027 NLA - Swivel - Was 6534250 - A

3

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

4

FILTER See Illustration HYDRAULIC TANK & FILTER/ D2121 NLA - assy - Was 6655072 - A

5

6535576

ELBOW W/Ref. 6

6

79K10

O RING 10

7

6655115

HOSE

8

6535123

ELBOW

9

6535598

CROSS

10

6655772

ADAPTER

11

6536146

HOSE

12

6535596

ADAPTER

13

6535597

ADAPTER

14

6535599

TEE

15

6535590

ELBOW 45 degrees

16

6536143

HOSE

17

6655790

ADAPTER

18

6535385

MANIFOLD

19

6535589

ADAPTER

20

6534283

HOSE

21

6535569

ELBOW W/Ref. 22

22

6655246

O-RING

23

6535063

ADAPTER W/Ref. 24

24

6535047

O-RING

25

6535574

ADAPTER

26

6535575

TEE

27

6535078

ADAPTER

27

6654377

ADAPTER

28

6535135

HOSE

28

6700215

HOSE

29

6535066

ELBOW

30

6535107

HOSE

31

6535567

ELBOW See Illustration SWIVEL JOINTS FITTINGS/ B14116 for fittings if swivel joint has been changed to P/N 6800524 - W/Ref. 32

32

6655244

O-RING

33

OIL COOLER See Illustration ENGINE MOUNTING/ D2010 NLA - Was 653610 - A

34

6655116

HOSE

35

13K7

FITTING

36

6536142

ADAPTER

37

17K7

ELBOW

38

13K5

TEE

39

6536144

HOSE

40

45K7

CONNECTR Bulkhead

41

86F7

LOCK NUT

42

36K7

FITTING

43

6535381

PLATE See Illustration HYDRAULIC CIRCUITRY/ C3191 See Illustration CONTROL CONSOLE & FLOORBOARDS/ B24229

44

6535626

ADAPTER W/Ref. 45

45

79K16

O RING 10 Was 91F000010B - A

46

17K5

ELBOW W/Ref. 47

47

79K6

O RING 10
