Запчасти Bobcat 231 L.H. JOYSTICK CONTROLS (Boom & Swing) (U.S. Control Pattern) CONTROLS

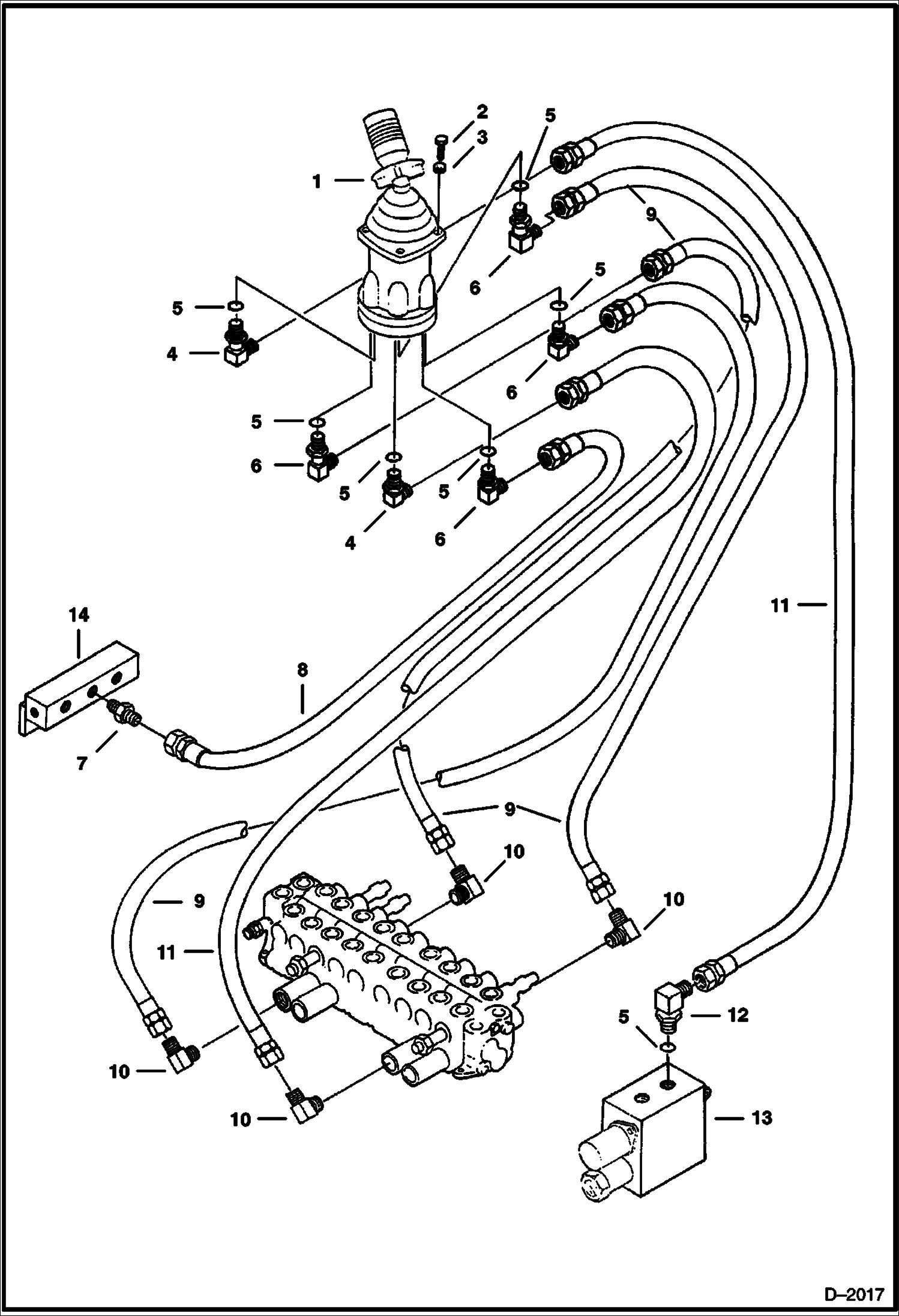

Схема запчастей Bobcat 231 - L.H. JOYSTICK CONTROLS (Boom & Swing) (U.S. Control Pattern) CONTROLS

Артикул

Название

Примечание

Количество

1

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

2

1CM625

BOLT

3

6EM60

WASHER, SPRING

4

6535594

ELBOW W/Ref. 5

5

6655244

O-RING

6

6535567

ELBOW W/Ref. 5

7

6535078

ADAPTER

8

6587605

HOSE Was 6534296 - A

9

6587603

HOSE Was 6534294 - A

10

6535066

ELBOW

11

6587604

HOSE Was 6534295 - A

12

6535567

ELBOW W/Ref. 5

13

6654121

VALVE See Illustration UNLOAD VALVE/ C3164

14

6535385

MANIFOLD See Illustration HYDRAULIC CIRCUITRY/ B18647

Выбрано товаров: 14
