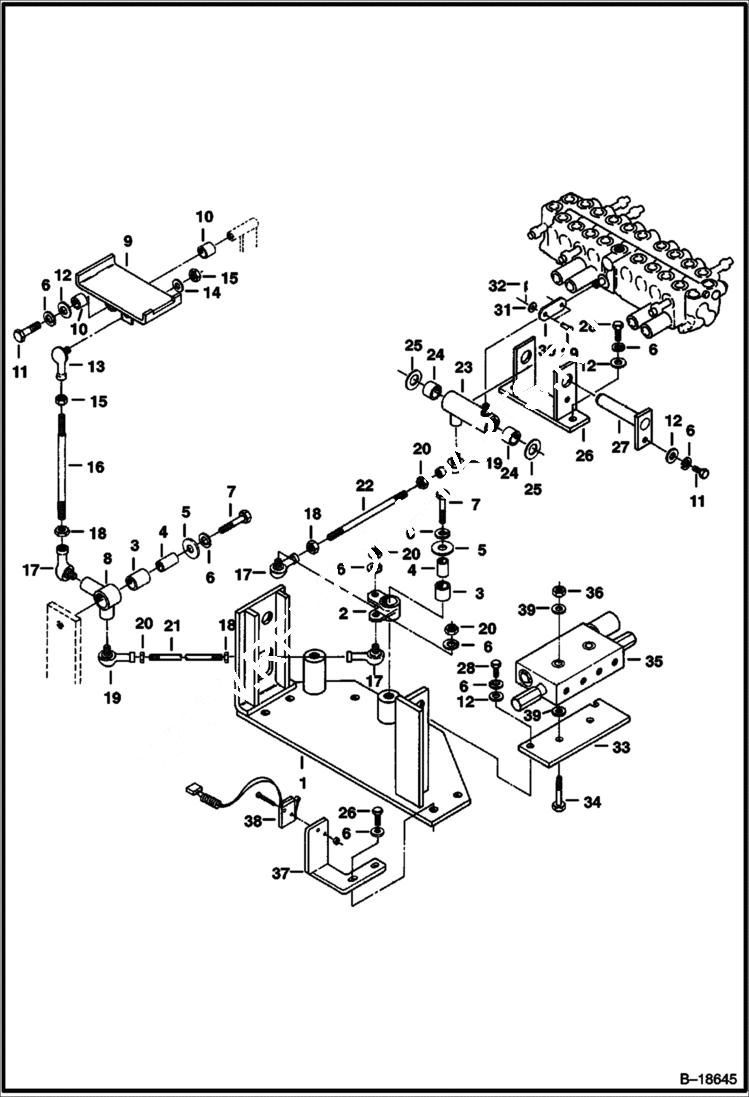

Запчасти Bobcat 231 CONTROL PEDAL (Boom Swing) CONTROLS

1

6535374

PLATE

2

6535356

LEVER W/Ref. 3

3

6535309

BUSHING

4

6535371

SPACER

5

6535665

WASHER

6

6EM100

WASHER

7

1CM1040

BOLT

8

6535380

LEVER W/Ref. 3

9

6535378

PEDAL W/Ref. 10

10

6652555

BUSHING

11

1CM1020

BOLT

12

15EM100

WASHER

13

6535026

BALL JOINT 8 mm thread - R.H.

14

6EM80

WASHER, SPRING

15

1DM8

NUT

16

6535365

ROD

17

6534259

BALL JOINT 10 mm thread - L.H.

18

6533906

NUT

19

6535010

BALL JOINT 10 mm thread - R.H.

20

1DM10

NUT

21

6535361

ROD

22

6536092

ROD

23

6536091

LEVER W/Ref. 24

24

6535309

BUSHING

25

SHIM NLA - Was 6535666 - A

26

6535376

BRACKET

27

6535377

SHAFT

28

1CM1025

BOLT

29

6534700

PIN

30

6535366

LINK

31

6535011

WASHER

32

13JM10016

COTTERPIN

33

6536109

PLATE

34

1CM860

BOLT Was 1CM01060B - D

35

6657013

VALVE See Illustration SOLENOID VALVE/ C3245 WAS 6655675 - A

36

39DM8

NUT Was 39DM00010B - D

37

6535612

BRACKET

38

6579357

SWITCH See Illustration ELECTRICAL SYSTEMS/ D2015

39

1EM80

WASHER
