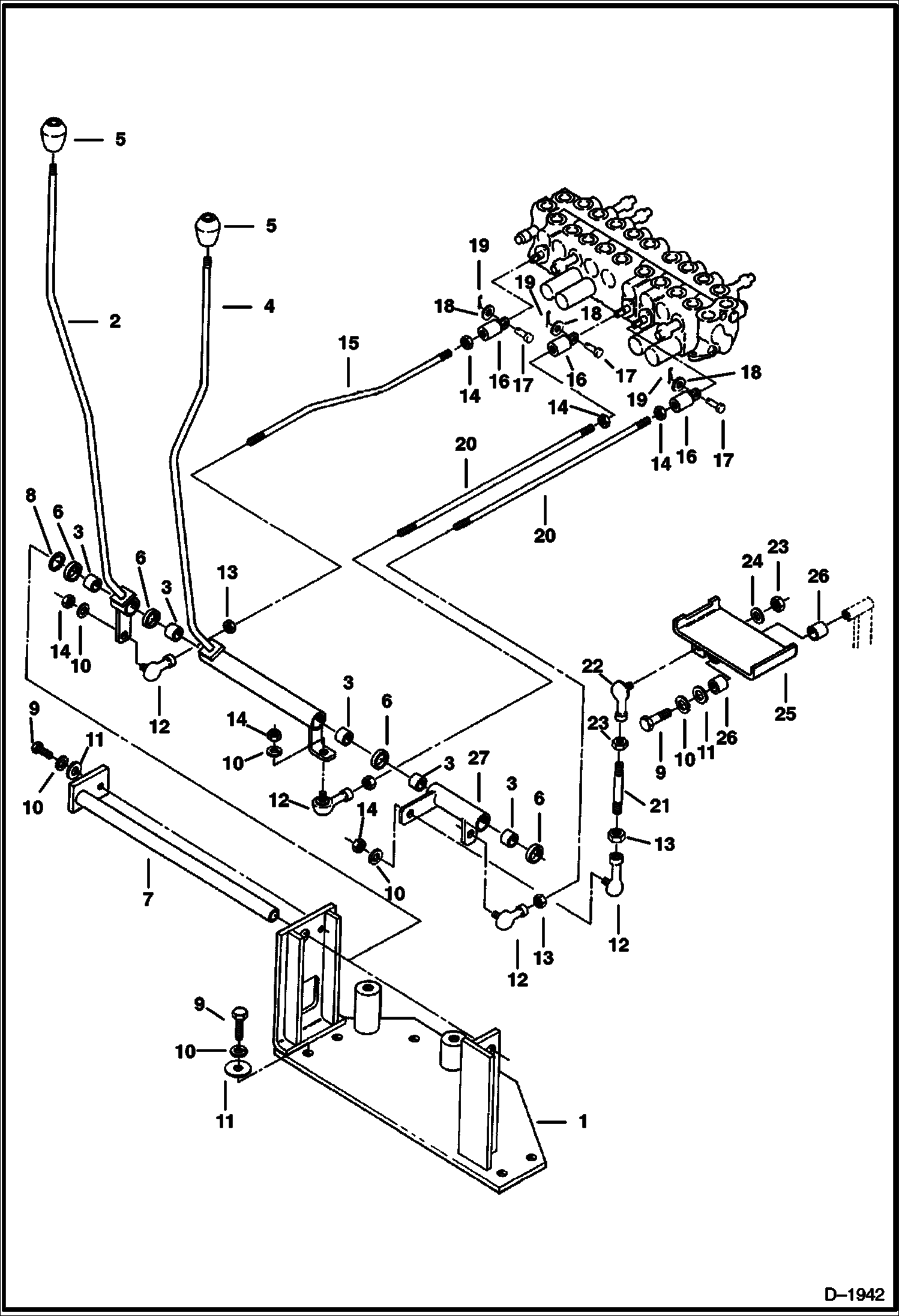

Запчасти Bobcat 231 TRAVEL AND AUXILIARY CONTROLS CONTROLS

1

6535374

PLATE

2

6535348

LEVER W/Ref. 3

3

6535309

BUSHING

4

6535349

LEVER W/Ref. 3

5

6535015

KNOB

6

SPACER NLA - Was 6535367 - A

7

6535375

SHAFT

8

SHIM NLA - Was 6535666 - A

9

1CM1025

BOLT

10

6EM100

WASHER

11

15EM100

WASHER

12

6534745

BALL JOINT 10 mm thread - L.H.

13

6533906

NUT 10 mm thread - L.H.

14

1DM10

NUT

15

6535368

ROD

16

6535369

YOKE

17

6534700

PIN

18

6535011

WASHER

19

13JM10016

COTTERPIN

20

6535357

ROD

21

6535364

ROD

22

6535026

BALL JOINT 8 mm thread - R.H.

23

1DM8

NUT

24

6EM80

WASHER, SPRING

25

6535378

PEDAL W/Ref. 26

26

6652555

BUSHING

27

6535373

LEVER W/Ref. 3
