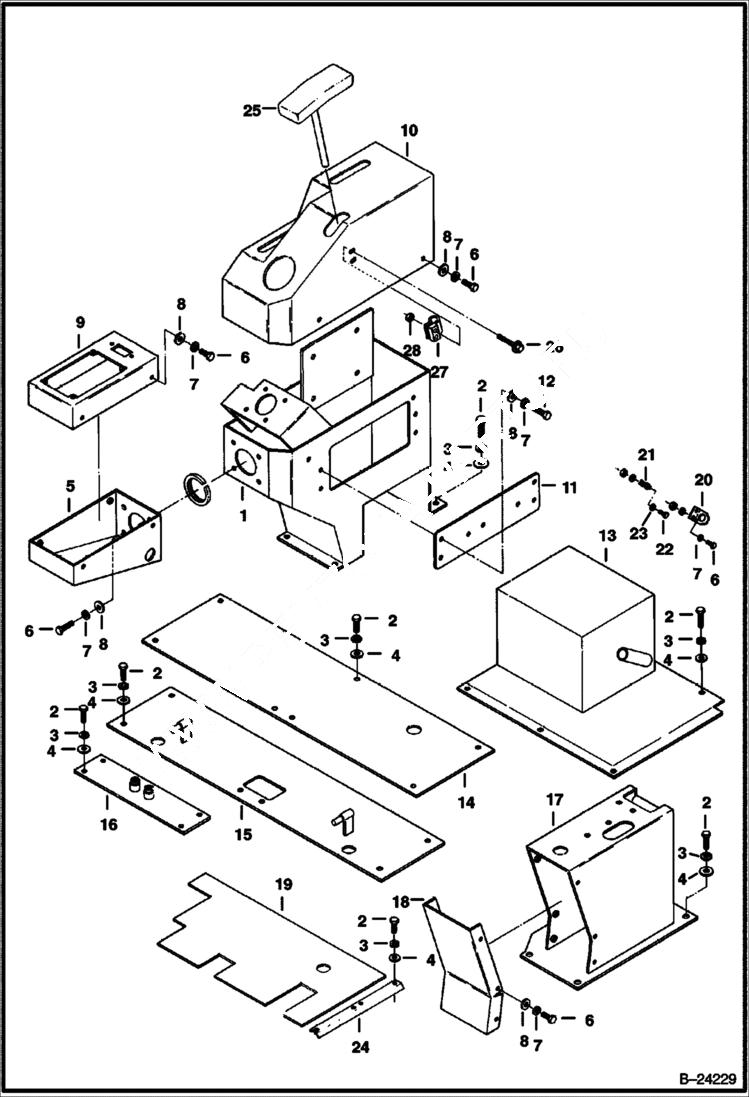

Запчасти Bobcat 231 CONTROL CONSOLE & FLOORBOARDS CONTROLS

1

6535394

CONSOLE R.H.

2

1CM1020

BOLT

3

6EM100

WASHER

4

15EM100

WASHER

5

6535510

PANEL

6

1CM820

BOLT

7

6EM80

WASHER, SPRING

8

15EM80

WASHER

9

PANEL NLA - Instrument - Was 6535511 - A

10

6535506

COVER See BTIE-018 console - R.H.

11

6535501

PLATE

12

1CM816

BOLT Was 1CM00815B - A

13

6535505

COVER

14

6537602

PLATE Was 6536097 - A

15

6535503

PLATE

16

6535381

PLATE Manifold

17

6535534

CONSOLE See Illustration CONTROL CONSOLE/ B18646 L.H.

18

6535399

COVER

19

MAT NLA - Floor - Was 6536080 - A

20

6536287

BRACKET

21

6536288

PLATE Spring

22

1CM510

BOLT

23

6EM50

LOCK-WSHR

24

6535632

ANGLE Floormat Holddown

25

6537510

ARM REST See BTIE-018 for adding arm rest to earlier machine

26

1CM1045

BOLT

27

6537514

MOUNT

28

39DM10

NUT
