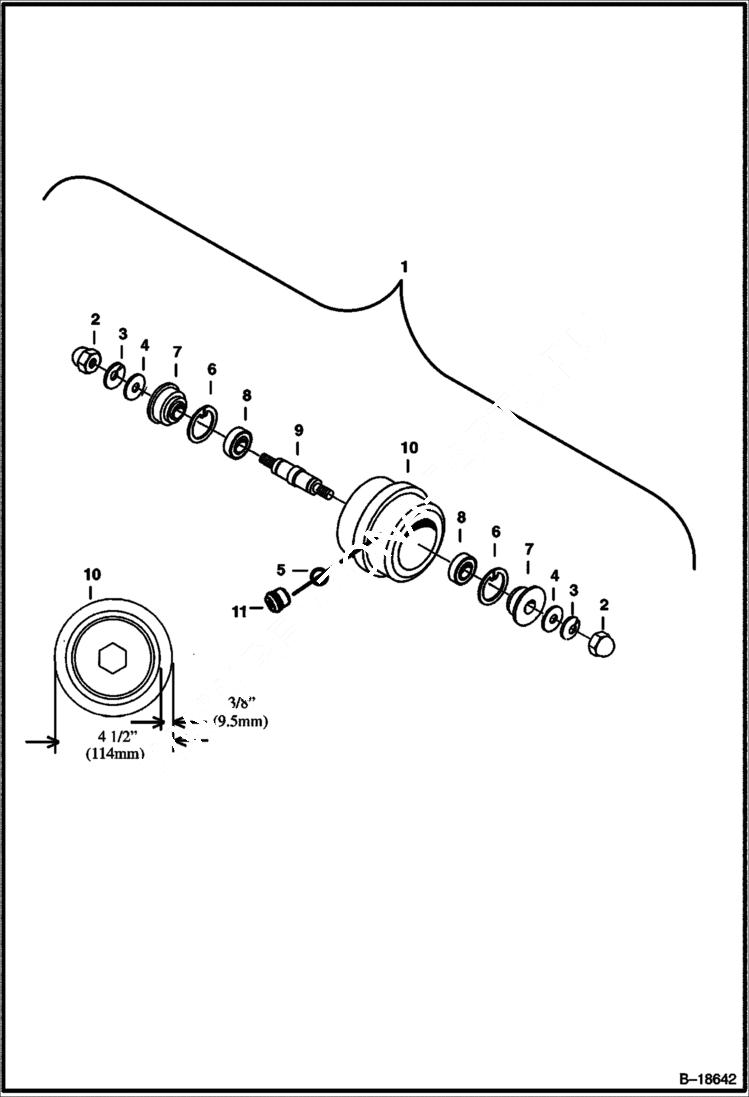

Запчасти Bobcat 231 TRACK ROLLER (Steel or Rubber Track) (W/ Oil Plug) UNDERCARRIAGE

1

ROLLER ASSY. See Illustration TRACK ROLLER/ PE1914 NLA - Order 6815123 assy - Ref. 2-11 - Was 6801770 - A

2

1DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

90K3

PLUG Was 90KV3 - D

6

7JM72

SNAP RING

7

6717802

SEAL

8

6655062

BEARING

9

6810769

SHAFT

10

6810771

ROLLER ASSY

11

95K4

O-RING
