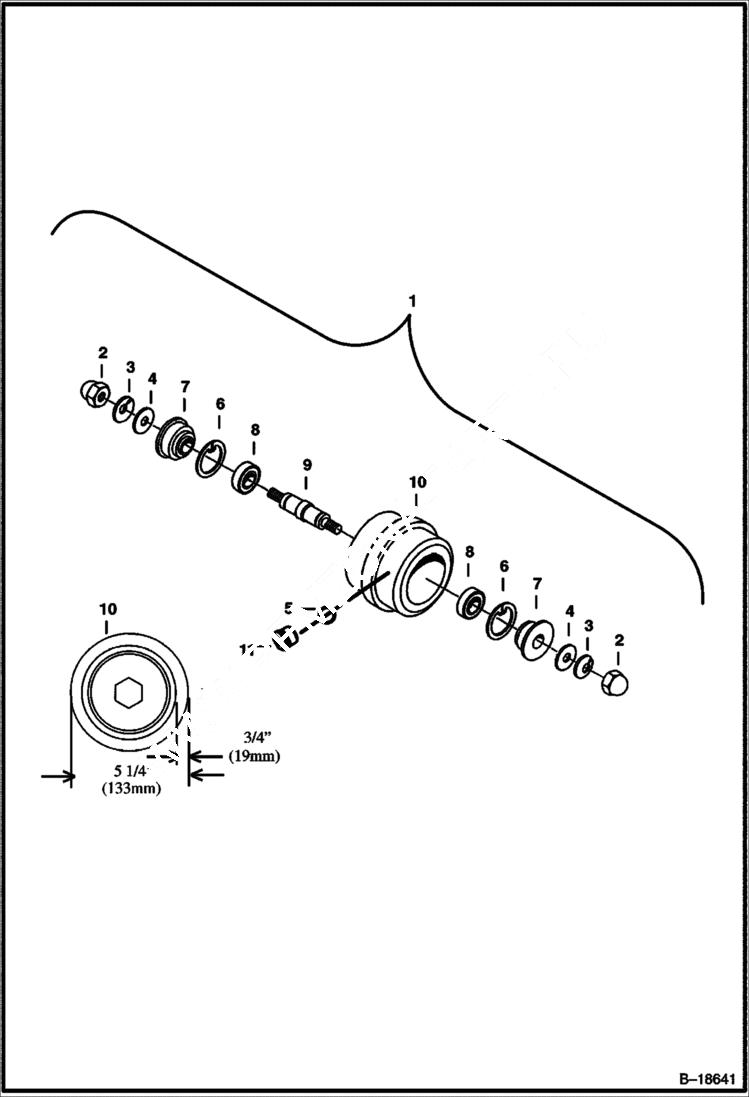

Запчасти Bobcat 231 TRACK ROLLER (Rubber Track) (W/ Oil Plug) (For All Rubber Tracks-Except for European Models) UNDERCARRIAGE

1

TRACK ROLLER See Illustration TRACK ROLLER/ NA2024 - NLA - Ref. 2-11 - Was 6810767 - A

1

TRACK ROLLER See Illustration TRACK ROLLER/ NA2024 - NLA - Ref. 2-11 - Was 6814882 - A

2

36DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

95K4

O-RING

6

7JM72

SNAP RING

7

6717802

SEAL

8

6655062

BEARING

9

6807918

SHAFT

10

6807917

ROLLER

11

90K3

PLUG Was 90KV3 - D
