FRONT IDLER (Rubber Track) (W/O Oil Plug)

Запчасти Bobcat 231 FRONT IDLER (Rubber Track) (W/O Oil Plug) UNDERCARRIAGE

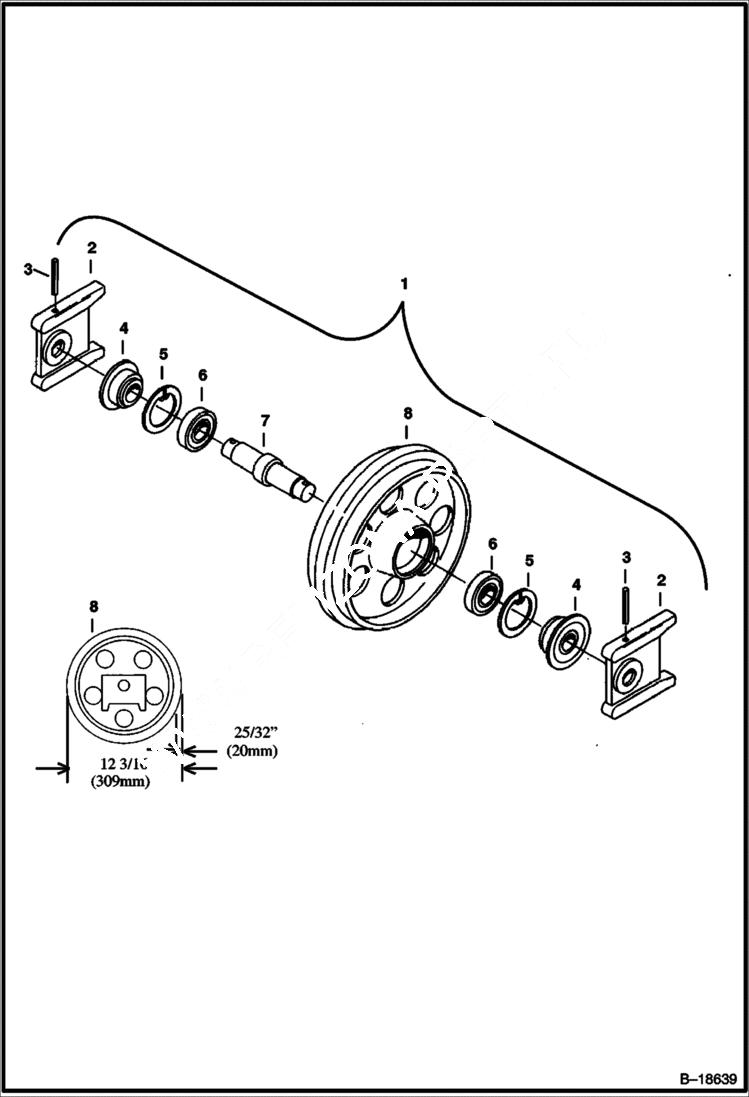

Схема запчастей Bobcat 231 - FRONT IDLER (Rubber Track) (W/O Oil Plug) UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FRONT IDLER NLA - Assy. - Ref. 2-8 - Order 6808137 - Was 6808137 - A

2

6588995

BLOCK Was 6535559 - A

3

2JM1060

PIN

4

6655061

SEAL

5

7JM72

SNAP RING Was 6655060 - A

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT Was 6535558 - A

8

IDLER NLA - Order 6808137 - Was 6589000 - A
