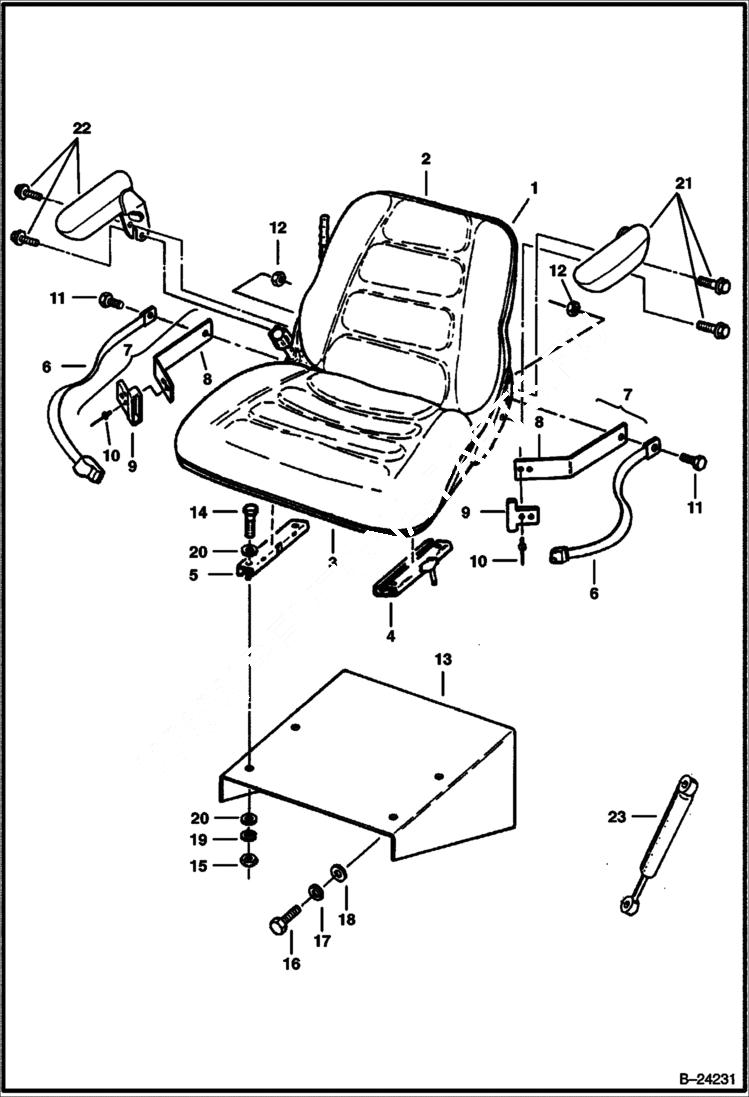

Запчасти Bobcat 231 SEAT MAIN FRAME

1

6632388

SEAT W/Ref. 2-5

2

3737081

BACKREST Backrest

3

3737010

CUSHION, SEAT Seat

4

3737000

TRACK W/Adjusting Handle

5

3737001

ADJUSTER W/O Adjusing Handle

6

6564774

SEAT BELT

7

6534812

GUIDE ASSY. Seat belt - W/Ref. 8-10

8

STRAP NSS

9

GUIDE NLA - Order 6703703 - Was 6565355

10

6630207

RIVET 5 Was 1662965 - A

11

1CM1020

BOLT

12

1DM10

NUT

13

6535509

MOUNT Seat

14

1CM820

BOLT

15

1DM8

NUT

16

1CM1030

BOLT

17

6EM100

WASHER

18

15EM100

WASHER

19

6EM80

WASHER, SPRING

20

15EM80

WASHER

21

6656006

BRACKET, ARM REST L.H. W/Bolt

22

6599515

ARM REST R.H. W/Bolt - Was 6657189 - A

23

6660348

GAS SPRING
