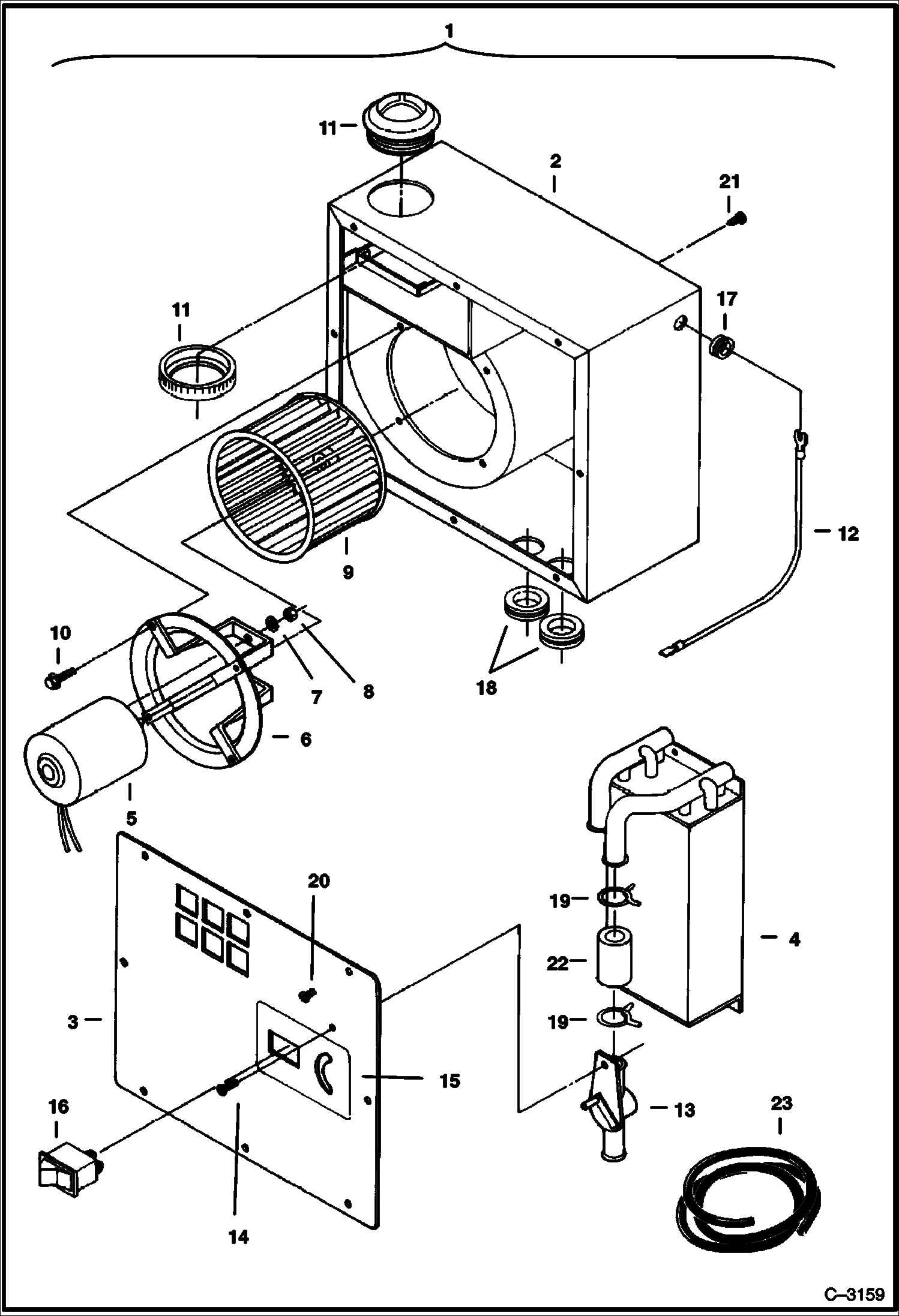

Запчасти Bobcat 231 HEATER (With Single Speed Fan Motor) MAIN FRAME

1

HEATER NLA - Assy. - Ref. 2-22 - Order 6658288 - Was 6654782 - A

1

HEATER NLA - assy - Was 6658288 - A

2

6654788

HOUSING

3

6654789

COVER

4

6654790

CORE Heater

5

6654187

MOTOR 12 v

6

6648467

MOUNT Motor

7

6641072

WASHER

8

6641073

NUT

9

6648468

FAN Blower

10

6641062

SCREW

11

LOUVER NLA - 51 mm (2'') - Was 6654791 - A

11

6654193

LOUVER 2.50 inch

12

6654188

WIRE

13

6654792

VALVE

14

85G808

SCREW

15

6654793

DECAL

16

6641061

SWITCH

17

6654196

GROMMET

18

6641056

GROMMET

19

6654192

CLAMP

20

6641066

SCREW

21

6654195

BOLT

22

HOSE NLA - 4'' (102 mm) - Order Ref. 23

23

889269

HOSE BULK/FT Bulk - Sold Per Foot
