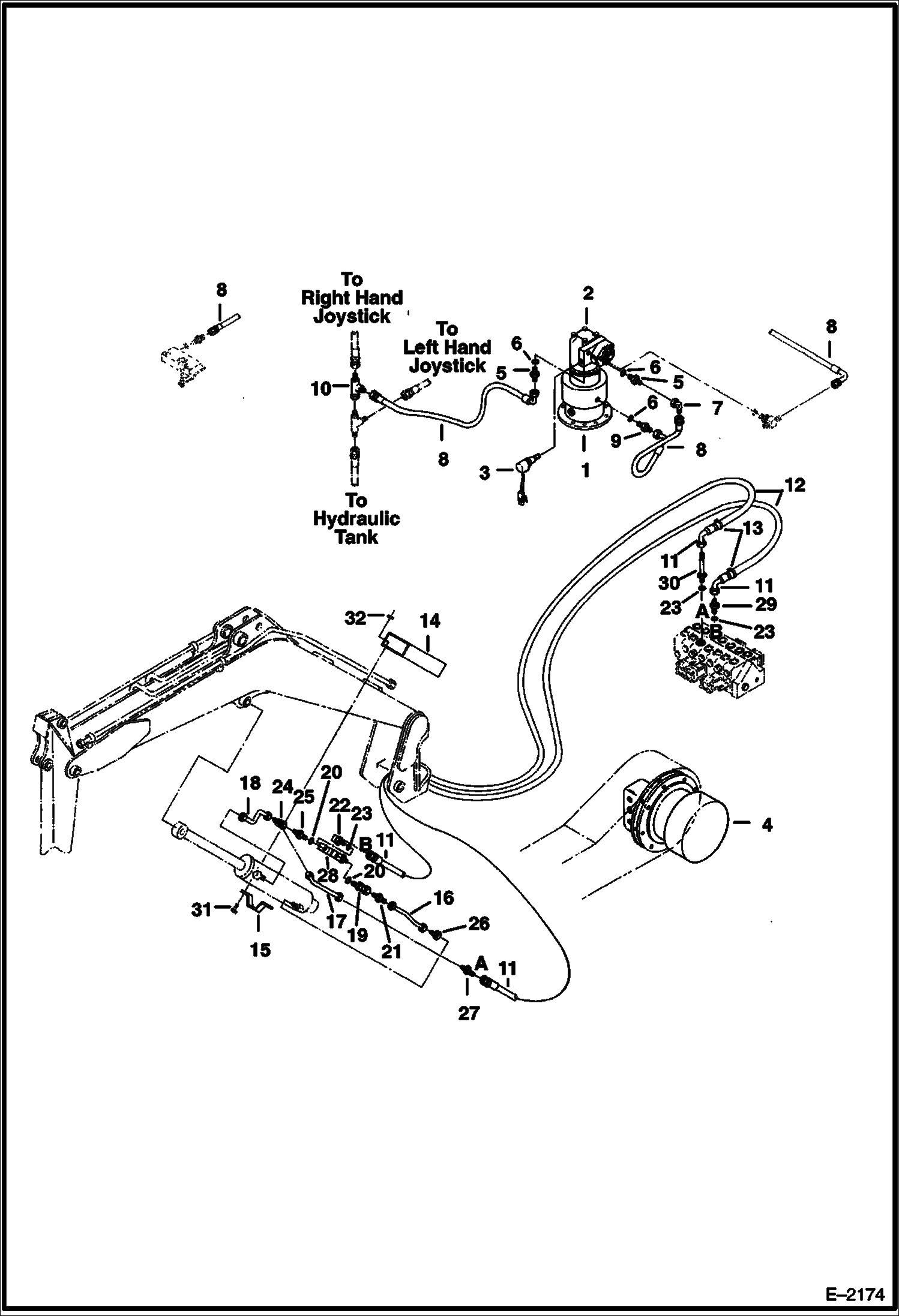

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (For Excavators Sold in Scandinavian Countries) ACCESSORIES & OPTIONS

1

TRANSMISSION See Illustration SWING TRANSMISSION/ D2174 NLA - Use 6657202 -- swing - nordic - Was 6659563 - A

2

6660968

MOTOR See Illustration SWING MOTOR/ B18569 nordic

3

6660935

SOLENOID

4

6659565

DRIVE MOTOR w/brake

5

15K5

FITTING W/Ref. 6

6

79K6

O RING 10

7

11K5

FITTING

8

6586582

HOSE

9

6654895

ADAPTER W/Ref. 6

10

13K5

TEE

11

6586559

HOSE

12

6656155

HOSE COVER bulk - sold per foot

13

6610510

TIE

14

6586549

COVER

15

6586550

RETAINER

16

6586553

TUBE

17

6586554

TUBE

18

6586555

TUBE

19

6646497

ELBOW W/Ref. 20

20

79K8

O RING 10

21

6660924

CHECK VALVE W/orifice

22

17K7

ELBOW W/Ref. 23

23

79K10

O RING 10

24

13K7

FITTING

25

731793

CONNECTR W/Ref. 20

26

784244

ADAPTOR

27

87F7

UNION

28

6658875

VALVE See Illustration DROP VALVE/ C3261

29

731794

CONNECTR W/Ref. 23

30

6646581

CONNECTOR W/Ref. 23

31

1CM830

BOLT

32

49DM8

NUT
