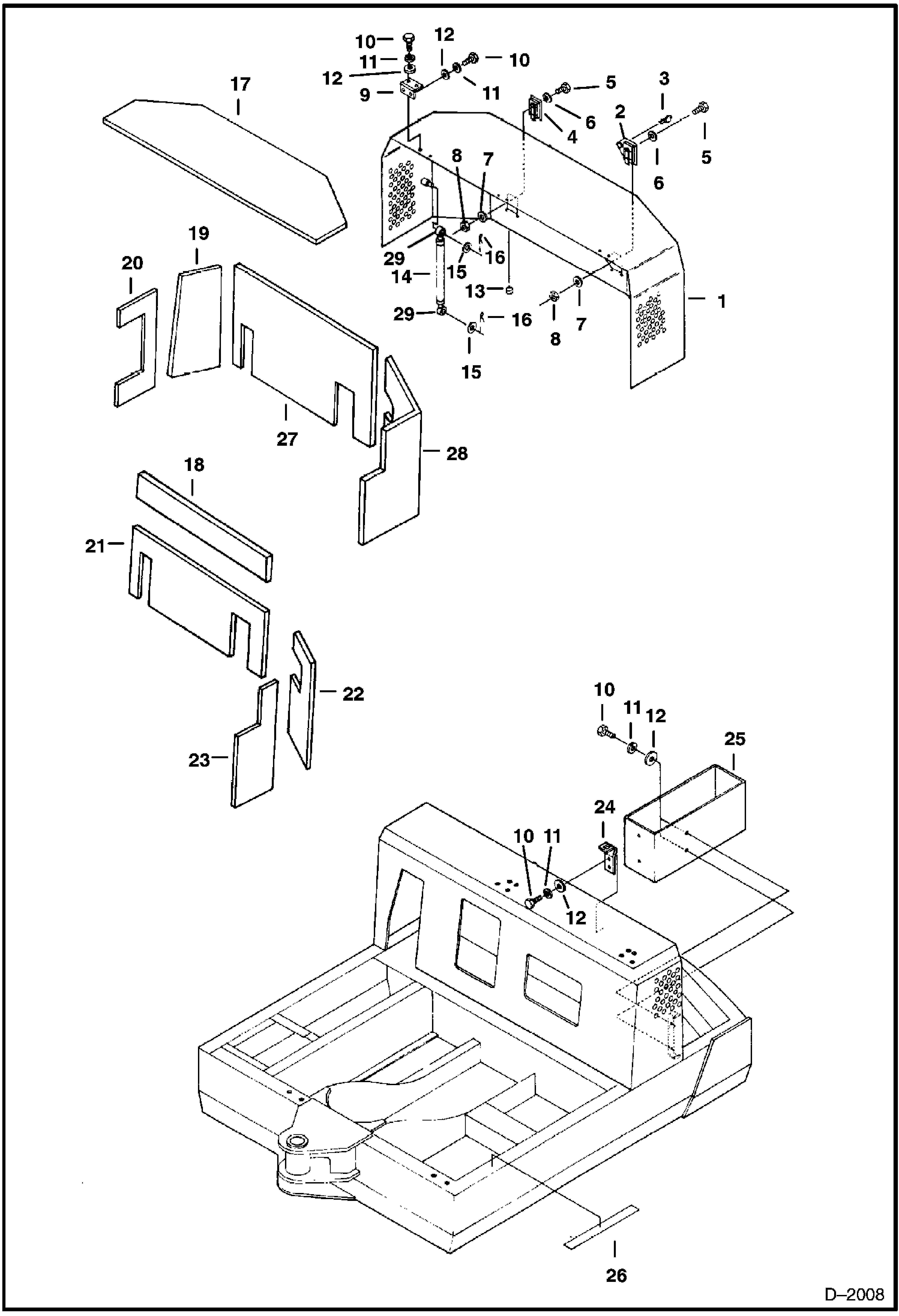

Запчасти Bobcat 231 MACHINE CANOPY & ENGINE COVER MAIN FRAME

1

HOOD NLA - Engine Cover - Order 6536166 (1), 6648421 (2), 6535606 (2), Ref. 17, 19, 20 , 27 & 28 - Was 6536095 - A

1

6536166

HOOD Engine cover

2

6535334

LATCH Locking - L.H.

3

6535362

KEY

3

6650683

KEY LL-24

4

6535002

LATCH Non-locking - R.H.

4

6660132

LATCH Locking - L.H. & R.H. - W/Ref. 3 should be serviced in pairs for appearance purposes - Was 6648421 - A

5

1CM820

BOLT

6

15EM80

WASHER

7

6EM80

WASHER, SPRING

8

1DM8

NUT

9

6533959

HINGE

10

1CM1020

BOLT

11

6EM100

WASHER

12

15EM100

WASHER

13

6653459

STOP Rubber

14

6654364

CYLINDER W/Ref. 29 - Was 6655249 - A

15

15EM80

WASHER

16

6535003

COTTER PIN

17

6536188

INSULATION Fastens Inside of Engine Cover - Was 6536157 - A

18

INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 27 - Was 6536158 - A

19

6535525

INSULATION Fastens Inside of Engine Cover

20

6536156

INSULATION Fastens Inside of Engine Cover

21

INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 27 - Was 6536159 - A

22

6535529

INSULATION Fastens Inside of Engine Cover

23

INSULATION NLA - Fastens Inside of Engine Cover - Order Ref. 28 - Was 6536160 - A

24

6533976

BRACKET

24

6535606

BRACKET

25

6537600

TOOL BOX Was 6536098 - A

26

6593245

TREAD

27

INSULATION NLA - Fastens inside of engine cover - Was 6536189 - A

28

INSULATION NLA - Fastens Inside of Engine Cover - Was 6536191 - A

29

6664042

CLEVIS
