Запчасти Bobcat 231 WATER FLANGE & THERMOSTAT POWER UNIT

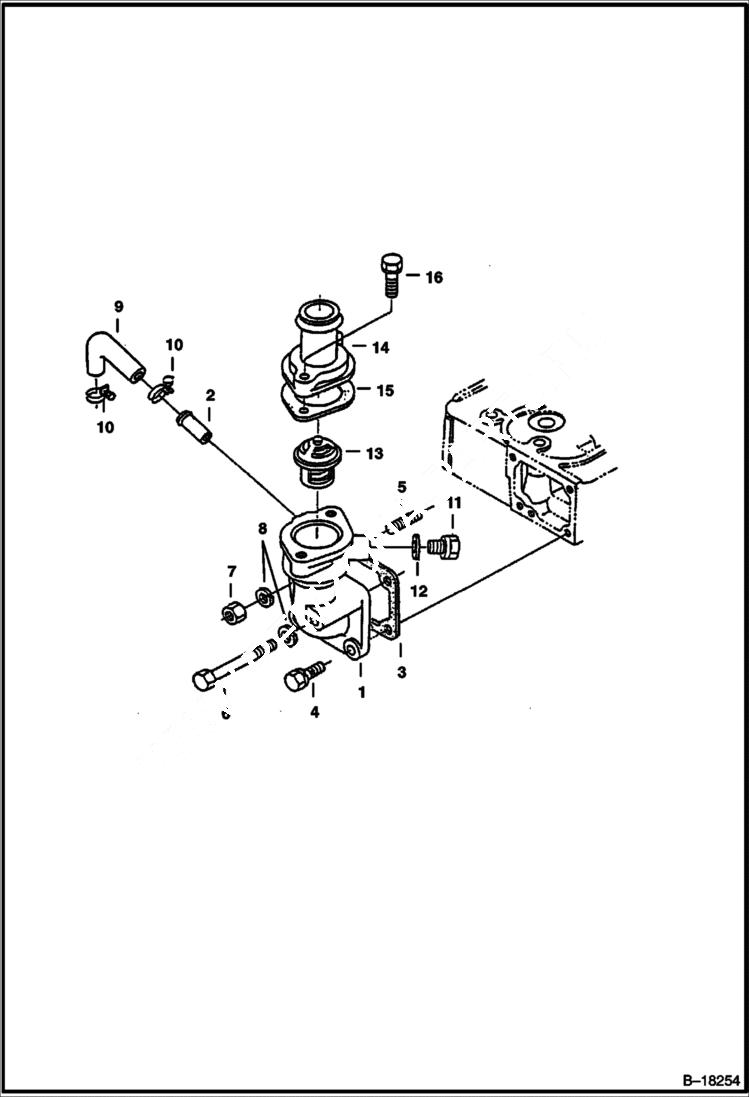

Схема запчастей Bobcat 231 - WATER FLANGE & THERMOSTAT POWER UNIT

Артикул

Название

Примечание

Количество

1

6653937

FLANGE W/Ref. 2 - Was 6655923 - A

2

6655880

PIPE

4

4CM822

BOLT

5

3974627

STUD

6

1CM870

BOLT

7

6652792

NUT

8

6EM80

WASHER, SPRING

9

3974988

PIPE

10

3974679

BAND

11

6649536

PLUG

12

6653562

GASKET

13

6653948

THERMOSTAT

14

6598118

COVER

15

6732199

GASKET See Illustration UPPER GASKET KIT/ C3255 - Included W/upper gasket kit - Was 6666790 - A

16

1CM835

BOLT

Выбрано товаров: 15
