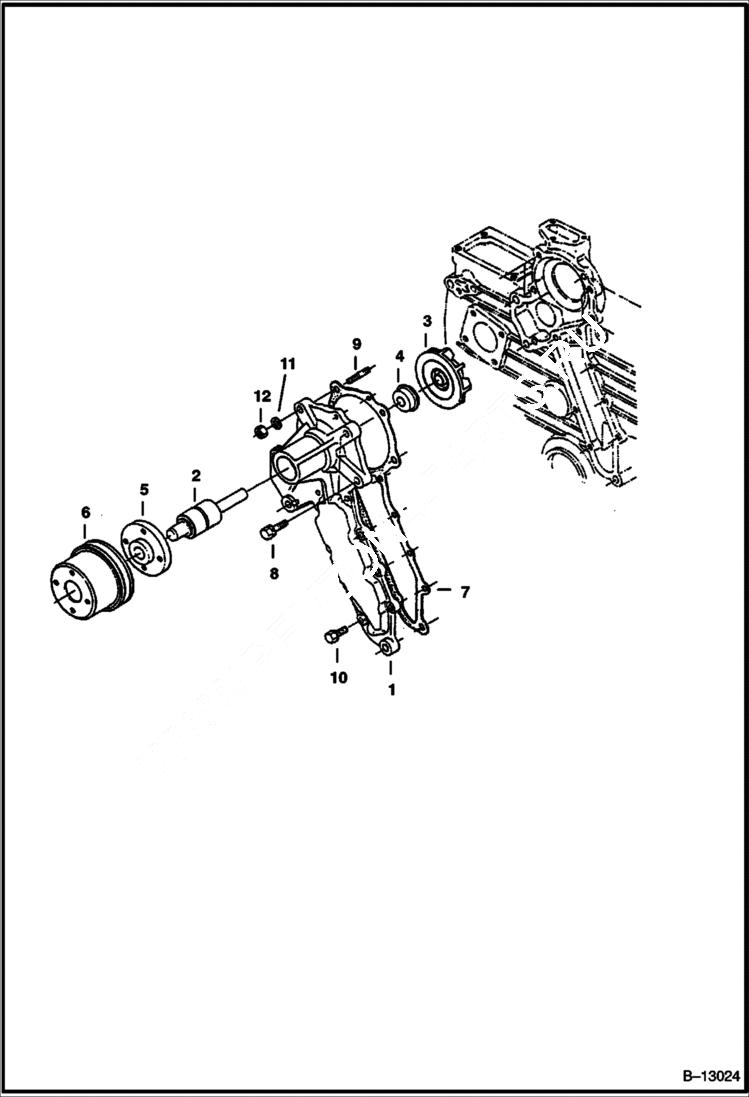

Запчасти Bobcat 231 WATER PUMP POWER UNIT

1

3974989

WATER PUMP W/Ref. 2-5

2

3974991

BEARING

3

6653577

IMPELLER

4

6653576

SET SEAL

5

3974992

FLANGE

6

6674169

PULLEY water pump - Was 6598155 - A

7

6666804

GASKET See Illustration LOWER GASKET KIT/ C3254 Included W/lower gakset kit - Was 3974995B - A

8

4CM828

BOLT

9

3974267

STUD Was 6653946 - A

10

4CM618

BOLT

11

6EM80

WASHER, SPRING

12

6652792

NUT
