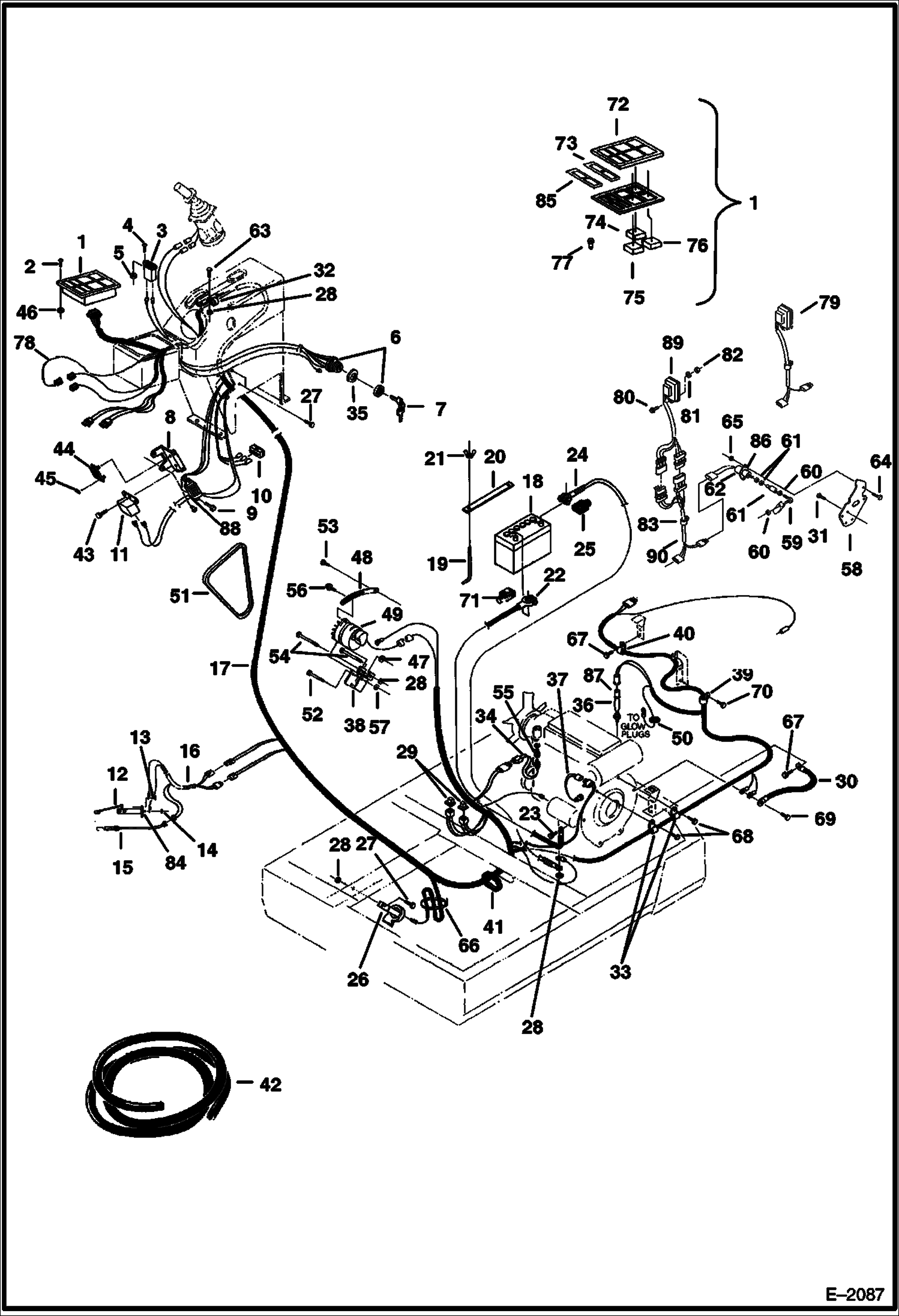

Запчасти Bobcat 231 ELECTRICAL SYSTEMS ELECTRICAL SYSTEM

1

6664268

PANEL dash - W/Refs. 72-77 & 85 - Was 6657056 - A

2

23GM520

BOLT

3

6664886

HOURMETER Was 6631657 - A

4

87G610

SCREW

5

12D6

NUT 10

6

SWITCH See BTIE-041 NLA - ignition - key code GC020 - Was 6519592 - A

6

SWITCH See BTIE-041 NLA - ignition - key code PK510 - Was 6661613 - A

6

6666548

SWITCH See BTIE-041 ignition - key code PK510

7

6512809

KEY ignition - key code GC020

7

6587458

KEY ignition - key code PK510

8

6537536

BRACKET

9

1CM516

BOLT

10

6673122

TIMER timed -start-up check, fuel level, oil pressure & water temp. lights - Was 6668736 - B

11

6644960

BUZZER warning -Activates w/water temp & oil pressure lights

12

6658223

SENDER fuel level

13

1CM512

BOLT

14

14D10

NUT

15

6534833

SWITCH low fuel

16

6537435

HARNESS fuel

17

6537436

HARNESS main

17

6587876

HARNESS main

18

6662222

BATTERY

19

6536738

BOLT battery

20

6535650

CLAMP

21

35DM80

NUT wing

22

6534798

CABLE negative - W/Ref. 71

23

5CM1220

SCREW

24

6534847

CABLE positive - W/Ref. 25

25

2356058

BOOT positive cable

26

6665105

ALARM Was 6662635 - A

27

1CM816

BOLT

28

1DM8

NUT

29

6651975

SWITCH magnetic

30

6565170

CABLE neg

31

5CM1020

SCREW

32

30H49

CLAMP

33

31H42

CLIP

34

6657082

SWITCH water temperature

35

6586598

PLATE ignition switch - used with NLA ignition switches 6519592 & 66661613 - Was 6537439 - A

35

6596218

PLATE ignition switch - used with ignition switch 6666548

36

6657287

SENDOR engine temperature - Was 6537502 - A

37

6657389

SWITCH oil pressure - Was 6537501 - A

38

6562257

MOUNT

39

30H46

CLIP harness

40

30H42

CLAMP harness

41

MOULDING NLA - 470 mm long - Order Ref. 42

42

MOULDING bulk - Sold Per Foot

43

1CM610

BOLT

44

HOLDER NLA - spare fuse - Was 6649124 - A

45

6654803

FUSE 5A

45

6654805

FUSE 10A Was 6961388 - A

45

6654806

FUSE, 15A

45

6625575

FUSE, 20A

45

6625597

FUSE 30 amp.

46

1DM5

NUT

47

6568877

WASHER

48

6579721

RETAINER

49

ALTERNATOR See Illustration ALTERNATOR/ B25158 See Illustration ALTERNATOR/ D1760

50

6610510

TIE

51

6657279

BELT alternator

52

1C648

BOLT

53

1CM870

BOLT

54

1CM885

BOLT

55

19F6

FITTING

56

35C516

BOLT 10

57

85D6

NUT, 5

58

6588966

BRACKET Was 6578085 - B

59

6578363

ROD END

60

62D4

NUT

61

6578366

BALL JOINT

62

6667993

SOLENOID fuel shut off - W/Ref. 86 - Was 6662993 - A

63

1CM820

BOLT

64

1CM616

SCREW

65

49DM6

NUT

66

6610510

TIE Was 1715312 - A

67

1CM1020

BOLT

68

5CM1030

BOLT

69

5CM1020

SCREW

70

1CM1065

BOLT

71

6599652

BOOT negative cable

72

6664022

COVER lens - W/gasket - Was 6661204 - D

73

LENS NLA - warning lights - fuel & brake - Was 6661205 - A

74

6661202

FUEL GAUGE

75

6661201

VOLTMETER

76

6661203

TEMP. GAUGE coolant

77

6665127

BULB warning lamp & back light - #194

78

6586429

WIRE gauge lights ROPS only See Service Letter 17 March 92

79

TIMER See Illustration FUEL STOP TIMER KIT/ C3319 NLA - Solenoid - Was 6669415 - A

80

29CM820

SCREW

81

2751101

WASHER NE

82

49DM8

NUT

83

30H42

CLAMP

84

6630972

GASKET

85

6661204

LENS warning lights - oil pressure & glow plugs

86

6664286

BOOT Also Order Ref. 50

87

6538534

WIRE resistance

88

6645835

BLOCK incl. W/Ref. 17

89

6669415

TIMER, SOLENOID

89

6702444

FUSE 25A 5 25 amp Was 6670808 - A

90

6713879

HARNESS 16'' (406,4 mm) Long
