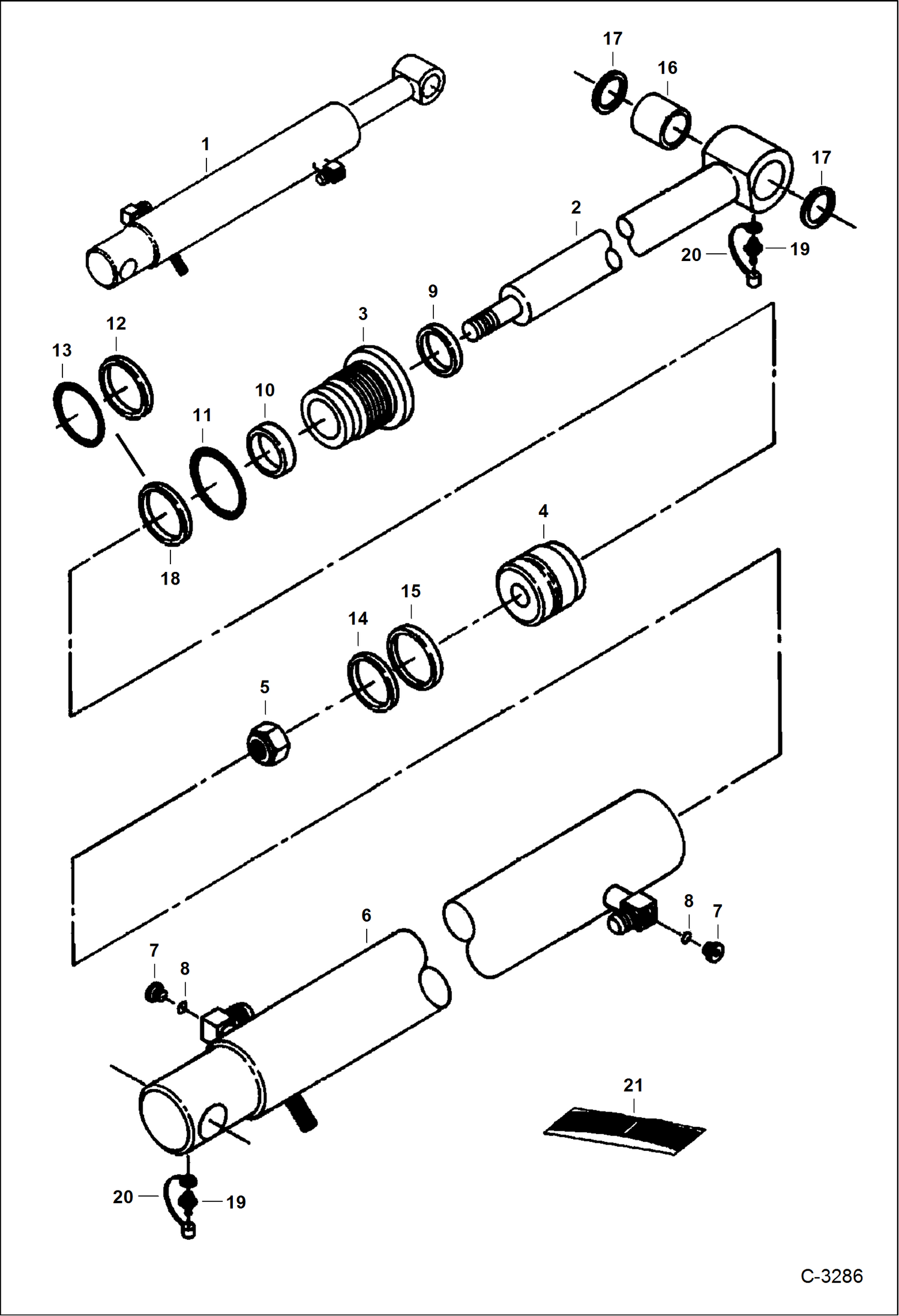

Запчасти Bobcat 231 BUCKET CYLINDER HYDRAULIC SYSTEM

1

6537289

CYLINDER Ref. 2-6, 9-15

2

6537292

ROD Also Order Ref. 16 & 17

3

6537294

HEAD

4

6537290

PISTON

5

92D20

NUT Was 86D000020B - D

6

6537291

HOUSING W/Ref. 7 & 8

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV5

PLUG tapered boss face

8

79K6

O RING 10 for flat boss face

8

95K6

O'RING for tapered boss face

9

6686998

WIPER, ROD CYL Was 6666545 - A

10

6667328

SEAL Was NSS - A

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG Sealing - Was NSS - A

16

6539220

BUSHING

17

6652915

SEAL, OIL

18

7008354

SEAL, QUAD

19

10H25

FITTING, GREASE 5

20

6652943

COVER grease fitting

21

7137966

SEAL KIT W/Ref. 5, 9-11, 14, 15, & 18 - Was 6810470 - A
