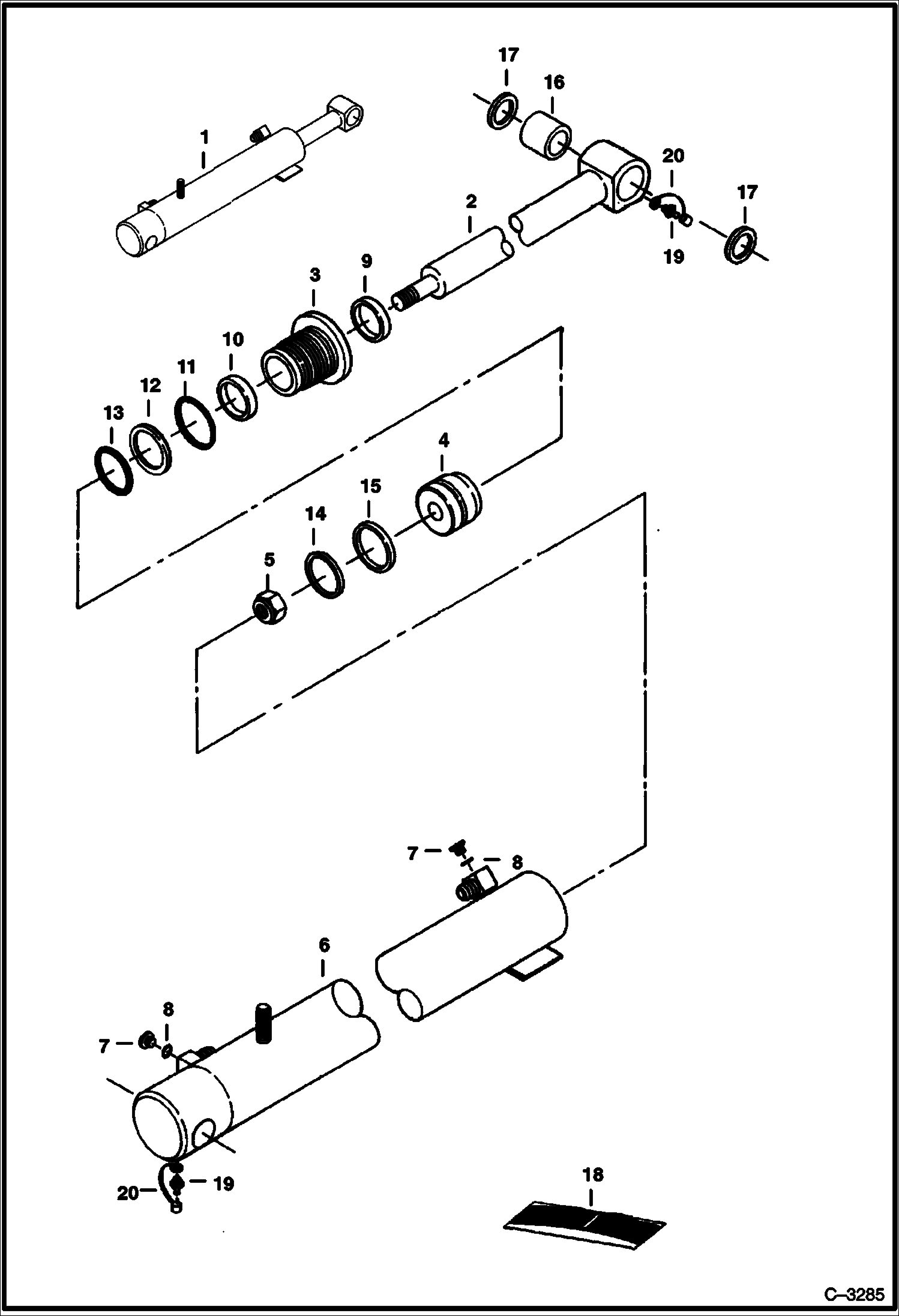

Запчасти Bobcat 231 BOOM CYLINDER HYDRAULIC SYSTEM

1

CYLINDER See Illustration BOOM CYLINDER/ C3501 NLA - Ref. 2-17 -Order 7156579 cylinder, 6596493 shield, 6596506 spacer, & 59CM01245B bolt - Was 6537359 - A

1

CYLINDER See Illustration BOOM CYLINDER/ C3501 NLA - Ref. 2-17 -Order 7156579 cylinder, 6596493 shield, 6596506 spacer, & 59CM01245B bolt - Was 6586747 - A

2

6537371

ROD W/Ref. 16 & 17 - W/1''-14 UNF threads

2

ROD NLA - W/Ref. 16 & 17 - W/1.125'' - 12 UNF threads - Order Ref. 1 - Was 6586753

3

6586570

HEAD Was 6537360

4

6587574

PISTON 1.002'' (25.45 mm) I.D. - Was 6537369 - A

4

6587573

PISTON 1.126'' (28.60 mm) I.D. - Was 6586760 - A

5

86D16

NUT

5

6810539

NUT Was 6804592 - A

6

HOUSING NLA - Order 7156579 cylinder, 6596493 shield, 6596506 spacer, & 29CM01245B bolt - Was 6537368 - A

6

HOUSING NLA - Order 7156579 cylinder, 6596493 shield, 6596506 spacer, & 29CM01245B bolt - Was 6587572 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV6

PLUG tapered boss face

8

79K6

O RING 10 for flat boss face

8

95K6

O'RING for tapered boss face

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6667327

SEAL Was NSS - A

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG Was NSS - A

16

6539220

BUSHING

17

6652915

SEAL, OIL

18

6661051

SEAL KIT Ref. 9 - for cyl. that use 1'' UNF Nut - Was 6537361 - B

18

7137965

SEAL KIT Ref. 5, 9-15 & 6810539 - for cyl. that use 1.125'' UNF Nut- Was 6816533 - A

19

10H25

FITTING, GREASE 5

20

6652943

COVER grease fitting
