END COVER (6 Spool Valve W/Dual Pressure Relief Valve) (S/N 12381 & Above)

Запчасти Bobcat 231 END COVER (6 Spool Valve W/Dual Pressure Relief Valve) (S/N 12381 & Above) HYDRAULIC SYSTEM

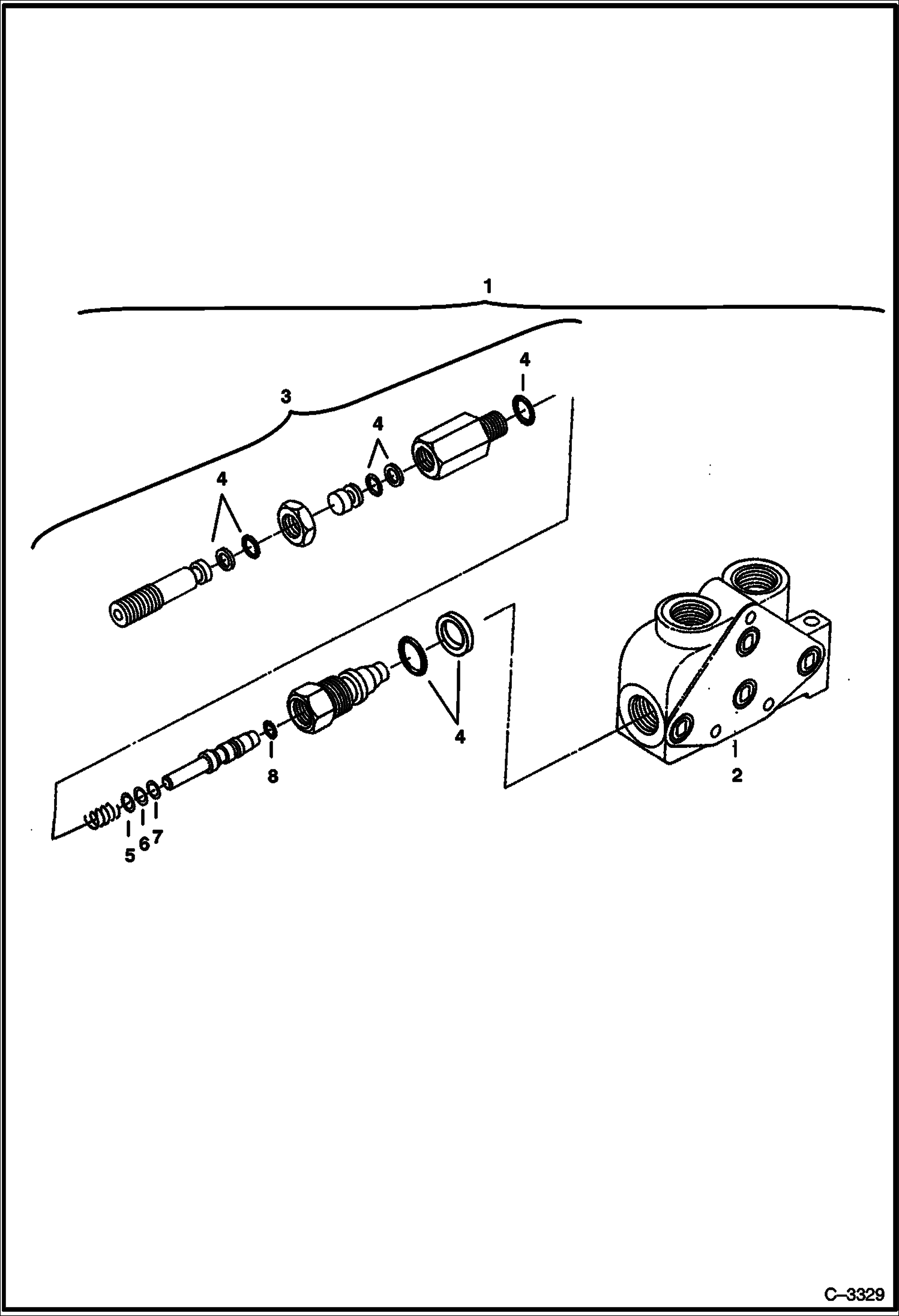

Схема запчастей Bobcat 231 - END COVER (6 Spool Valve W/Dual Pressure Relief Valve) (S/N 12381 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6664290

COVER end - W/Ref. 2-4

2

BODY NSS

3

6662320

RELIEF VALVE set at 2500/3000 PSI - W/Ref. 4-8

4

6664282

SEAL KIT

5

896265

SHIM .010'' (0,25 mm) thick

6

896264

SHIM .020'' (0,5mm) thick

7

896263

SHIM .040'' (1,0mm) thick

8

SEAL NLA - Order Ref. 3

Выбрано товаров: 8
