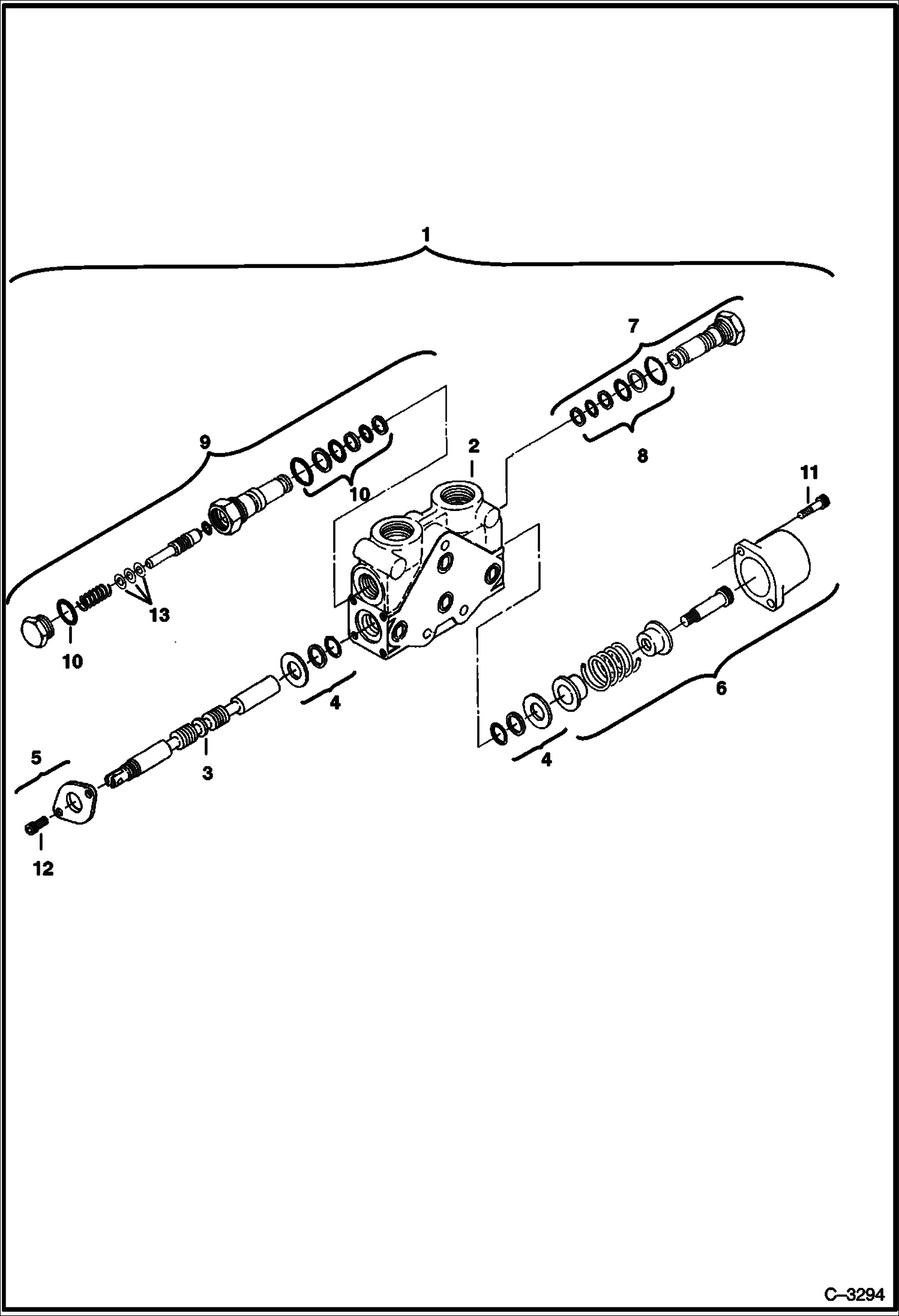

Запчасти Bobcat 231 VALVE SECTION (L. H. Travel (6 Spool Valve) W/Single Pressure Relief Valve) (S/N 12001-12380) HYDRAULIC SYSTEM

1

6660502

VALVE SECTION L.H. Travel - W/Ref. 2-12

2

BODY NSS

3

SPOOL NSS

4

6660741

SEAL KIT spool

5

6660740

RETAINER ASSY. W/Ref. 12

6

6660738

POSITIONER spool - W/Ref. 11

7

6660739

PLUG load check W/Ref. 8

8

6647719

SEAL KIT

9

6674319

RELIEF VALVE set at 2500 PSI - W/Ref. 10 & 13 - Was 6660749 - A

10

6647693

SEAL KIT

11

73G412

SCREW

12

73G408

SCREW

13

896265

SHIM .010'' (0.25 mm) thick

13

896264

SHIM .020'' (0,5 mm) thick

13

896263

SHIM .040'' (1,0 mm) thick
