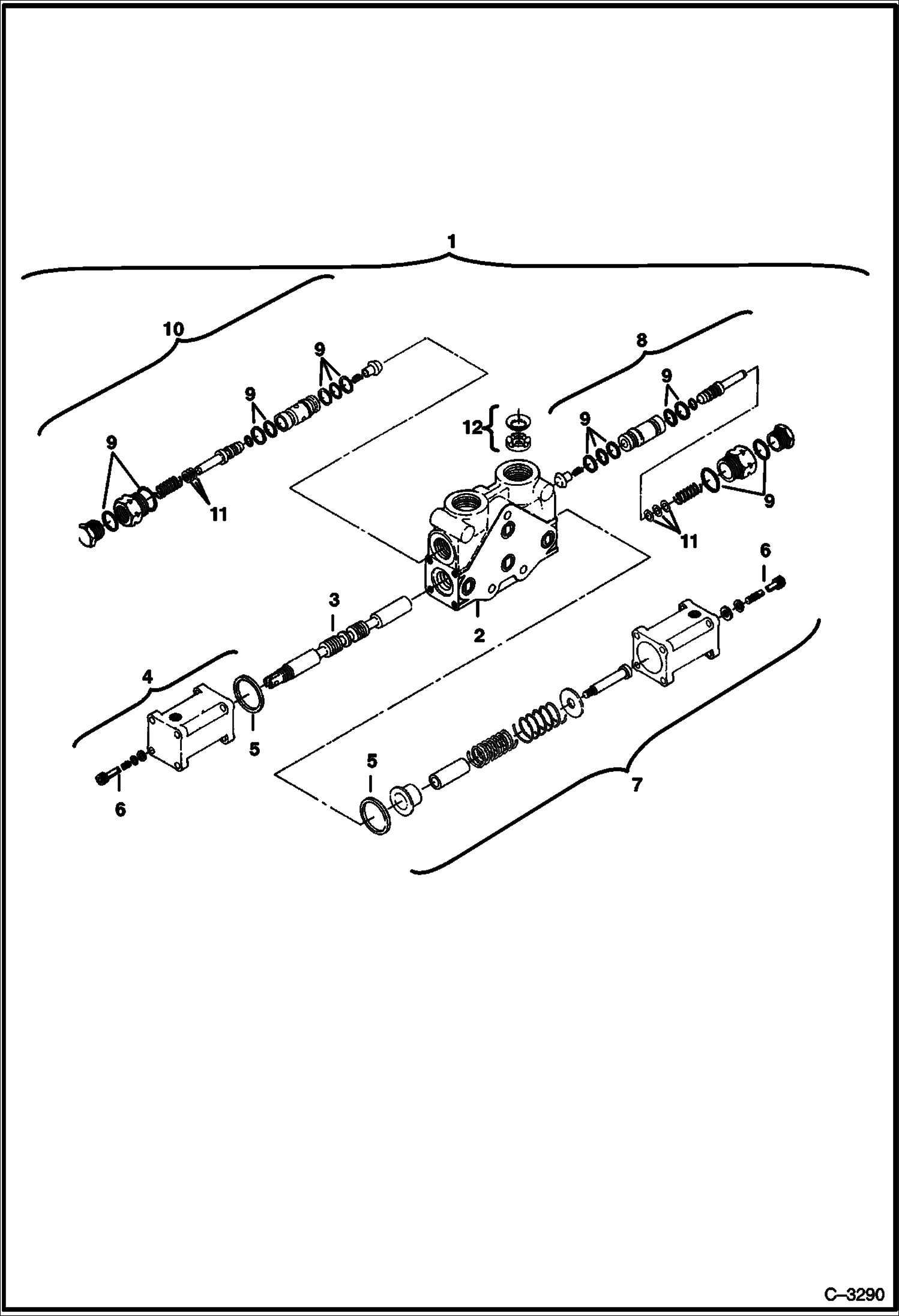

Запчасти Bobcat 231 VALVE SECTION (Boom) (6 Spool Valve) HYDRAULIC SYSTEM

1

6660498

VALVE SECTION boom - W/Ref. 2-11 - Was 6660488 - D

2

BODY NSS

3

SPOOL NSS

4

6660742

POSITIONER spool W/Refs. 5 & 6

5

6660743

SEAL positioner

6

6665439

SCREW Was 73G000448B - A

7

6660744

POSITIONER spool W/Refs. 5 & 6

8

6651653

RELIEF VALVE set at 2950 PSI - W/Ref. 9 & 11

9

6647693

SEAL KIT

10

6660746

RELIEF VALVE seat at 3400 PSI - W/Ref. 9 & 11

11

896265

SHIM .010'' (0,25 mm) thick

11

896264

SHIM .020'' (0,5 mm) thick

11

896263

SHIM .040'' (1,0 mm) thick

12

6660745

RESTRICTOR assy. (.125 inch) w/spring washer
