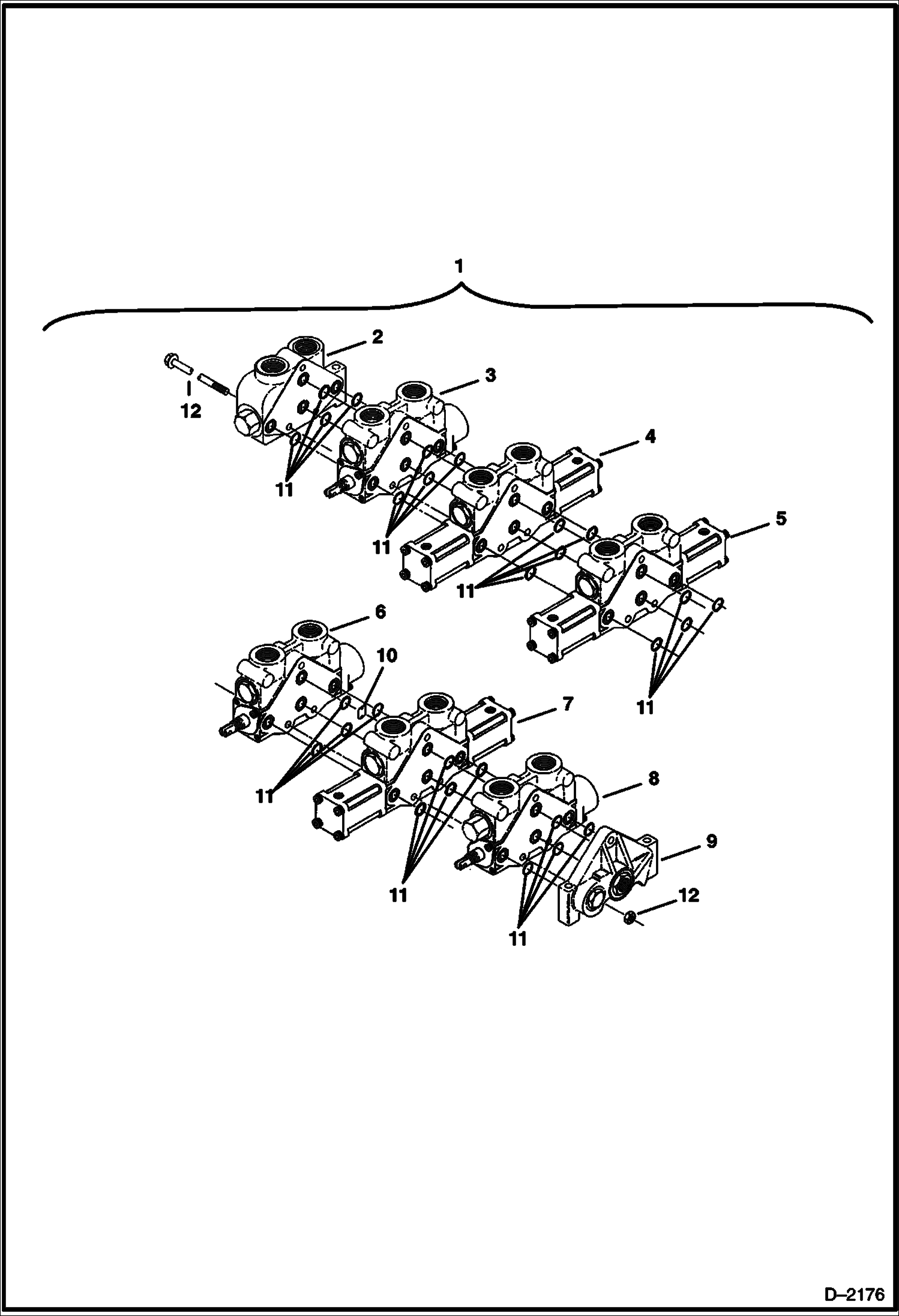

Запчасти Bobcat 231 6 SPOOL VALVE (S/N 12001 - 12380) HYDRAULIC SYSTEM

1

6660081

VALVE 6 spool - W/Refs. 2-12

2

6660496

COVER See Illustration END COVER/ B13672 end

3

6660497

VALVE SECTION See Illustration VALVE SECTION/ C3293 R.H. Travel

4

6660498

VALVE SECTION See Illustration VALVE SECTION/ C3290 boom

5

6660499

VALVE SECTION See Illustration VALVE SECTION/ C3291 bucket

6

6660500

VALVE SECTION See Illustration VALVE SECTION/ C3292 auxiliary

7

6660501

VALVE SECTION See Illustration VALVE SECTION/ B18899 arm - W/Ref. 10

8

6660502

VALVE SECTION See Illustration VALVE SECTION/ C3294 L.H. Travel

10

6660748

SEAL section block

11

6660750

SEAL KIT includes 4 O-rings

12

6660753

KIT bolt & nut - includes 3 of each
