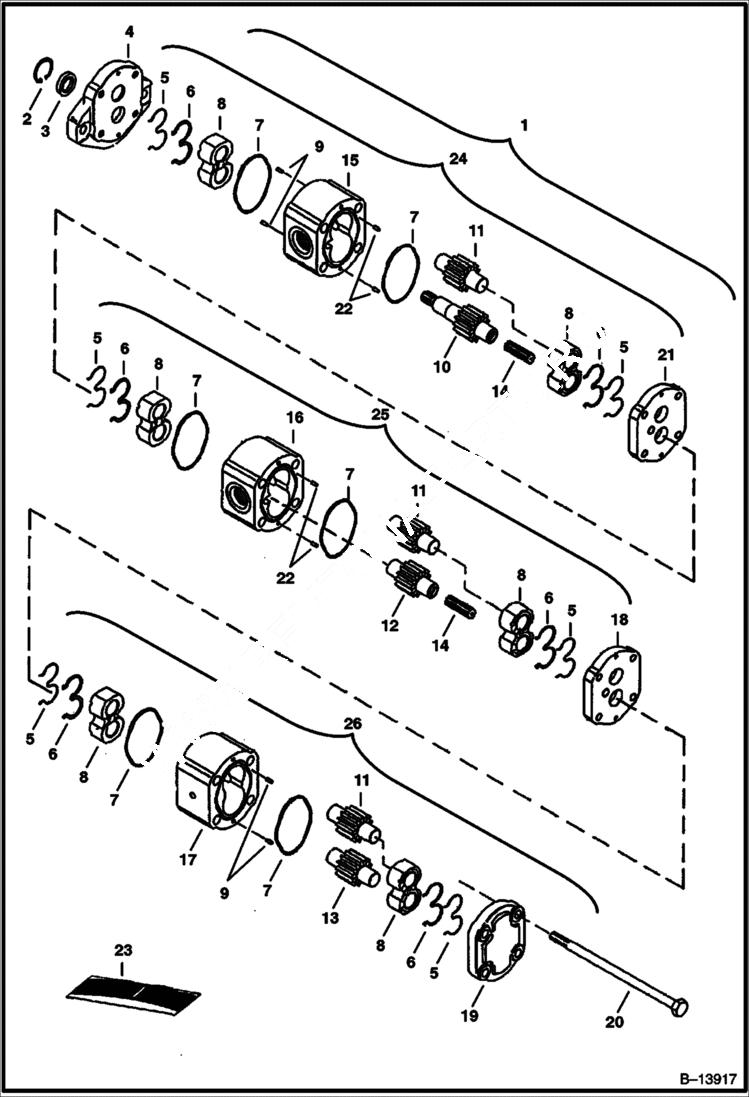

Запчасти Bobcat 231 TRIPLE GEAR PUMP (S/N 12469 & Above) HYDRAULIC SYSTEM

1

6666930

PUMP, GEAR TRIPLE assy. W/Refs. 2-22 - Was 6662769 - A

2

6662925

SNAP RING

3

6662926

SEAL incl. W/Ref. 23

4

6663978

COVER front

5

BACK-UP RING NSS - incl. W/Ref. 23

6

SEAL NSS - incl. W/Ref. 23

7

O-RING NSS - incl. W/Ref. 23

8

6663979

BEARING

9

6662929

DOWEL PIN .403 inch (10,25mm) long

10

GEAR NLA - drive - incl. W/Ref. 24 - Was 6663983 - A

11

GEAR NLA - idler - incl. W/Ref. 24, 25 or 26 - Was 6663980 - A

12

GEAR NLA - center pump - incl. W/Ref. 25 - Was 6663981 - A

13

GEAR NLA - end pump - incl. W/Ref. 26 - Was 6663982 - A

14

6663984

SHAFT drive

15

HOUSING NLA - front - Order Ref. 24 - Was 6663986 - A

16

HOUSING NLA - center - Order Ref. 25 - Was 6663987 - A

17

HOUSING NLA - end - Order Ref. 26 - Was 6663988 - A

18

6663989

PLATE

19

6662932

COVER end

20

6667554

BOLT Was 6663985 - A

21

6664583

PLATE

22

6665621

DOWEL PIN .716 inch (18,20mm) long

23

6663990

SEAL KIT Includes Refs. 3 (1), 5 (6), 6 (6) & 7 (6)

24

SECTION KIT NLA - front - incl. Refs. 5(2), 6(2), 7(2), 8(2), 9(2), 10(1), 11(1), 14(1) & 22 (2) - Was 6663986 - A

25

SECTION KIT NLA - center - includes (2) each of Refs. 5, 6, 7 & 8 (1) each of Refs. 11, 12 & 14 & (2) of Ref. 22 - Was 6663987 - A

26

6663988

SECTION KIT end - incl. Refs.5(2), 6(2), 7(2), 8(2), 9(2), 11(1) & 13(1)
