Запчасти Bobcat 231 TRIPLE GEAR PUMP (S/N 12001 - 12468) HYDRAULIC SYSTEM

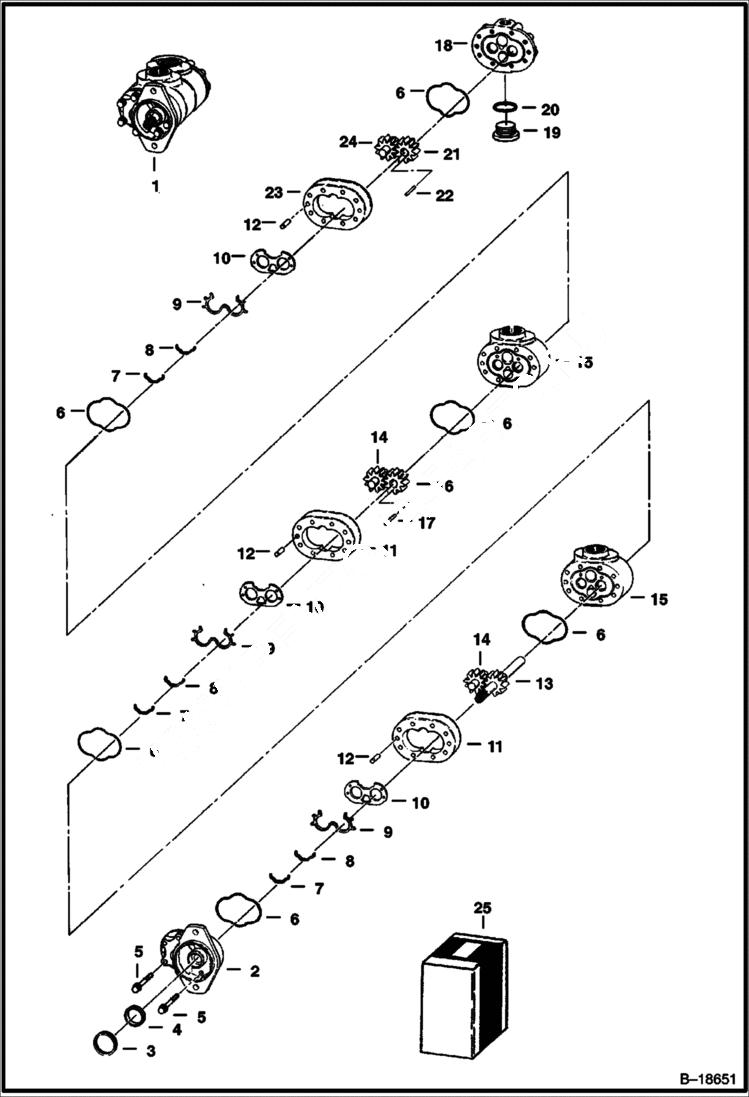

Схема запчастей Bobcat 231 - TRIPLE GEAR PUMP (S/N 12001 - 12468) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6657195

PUMP assy. - W/Ref. 2-20

2

PLATE NLA - front - Was 6648916 - A

3

SEAL NSS

4

WASHER NSS

5

6659919

BOLT

6

O-RING NSS

7

GASKET NSS

8

O-RING NSS - molded

9

SEAL NSS

10

PLATE NSS - wear

11

6632037

BODY W/Ref. 12

12

455536

DOWEL

13

6659920

SHAFT input - W/Gear

14

6659922

GEAR idler

15

6650614

PLATE adapter

16

6659921

GEAR slip

17

6659918

KEY

18

6631025

PLATE back

19

6657388

PLUG

20

79K16

O RING 10

21

6647737

GEAR drive

22

6647733

KEY

23

6647740

BODY

24

6647741

GEAR idler

25

6658961

SEAL KIT W/Ref. 3, 4, 6-10 & 20

Выбрано товаров: 25
