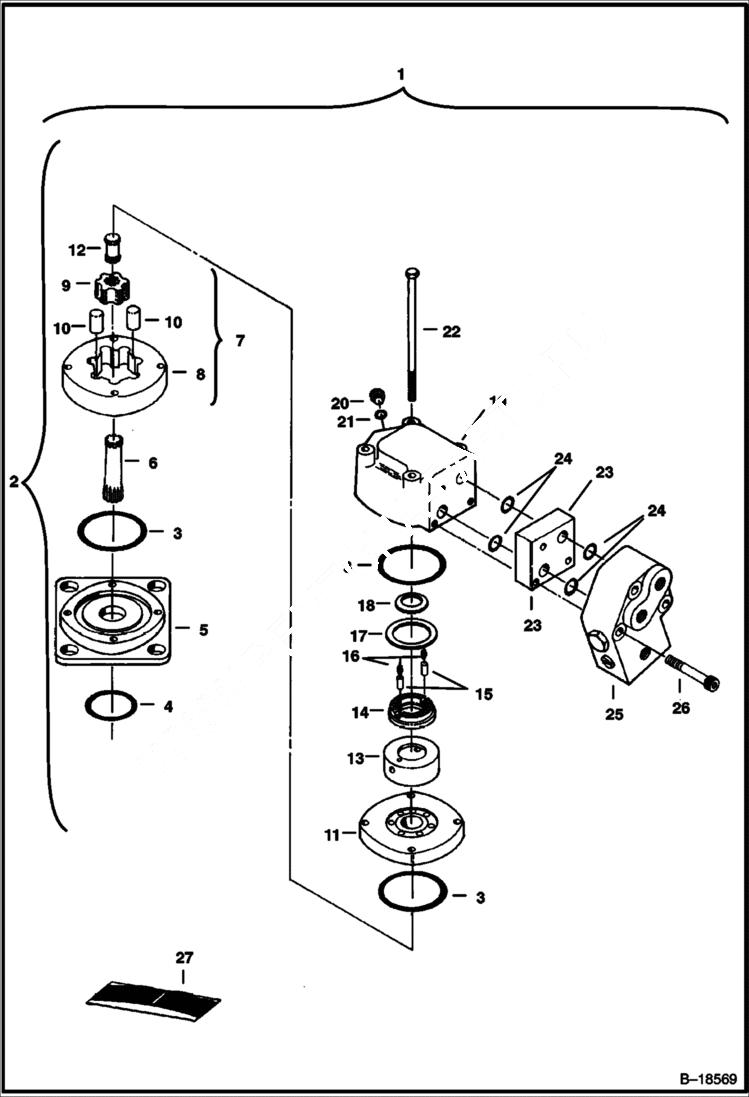

Запчасти Bobcat 231 SWING MOTOR (For Excavators Sold in Scandinavian Countries) HYDRAULIC SYSTEM

1

6660968

MOTOR assy. - W/Ref. 2-26

2

6658741

MOTOR assy. - W/Ref. 3-22

3

O-RING NSS - included W/Ref. 27

4

O-RING NSS - included W/Ref. 27

5

6661816

HOUSING

6

6658524

SHAFT

7

6658525

GEROLER assy. W/Ref. 8-10

8

RING NSS

9

STAR NSS

10

ROLLER NSS

11

6656368

PLATE

12

1991084

DRIVE

13

6632288

VALVE

14

6630027

BALANCE RING

15

1992102

PIN

16

1992088

SPRING

17

SEAL NSS - included W/Ref. 27

18

SEAL NSS - included W/Ref. 27

19

6632289

HOUSING

20

1992104

PLUG W/Ref. 21

21

79K4

O RING 10 included W/Ref. 27

22

6658526

BOLT

23

6661817

BLOCK

24

6658530

O-RING

25

VALVE See Illustration CROSSPORT RELIEF VALVE KIT/ C3492 See Illustration CROSSOVER RELIEF VALVE/ C3202 NLA - assy - Was 6660663 - A

26

6661818

BOLT

27

6658527

SEAL KIT W/Ref. 3, 4, 17, 18 & 21
