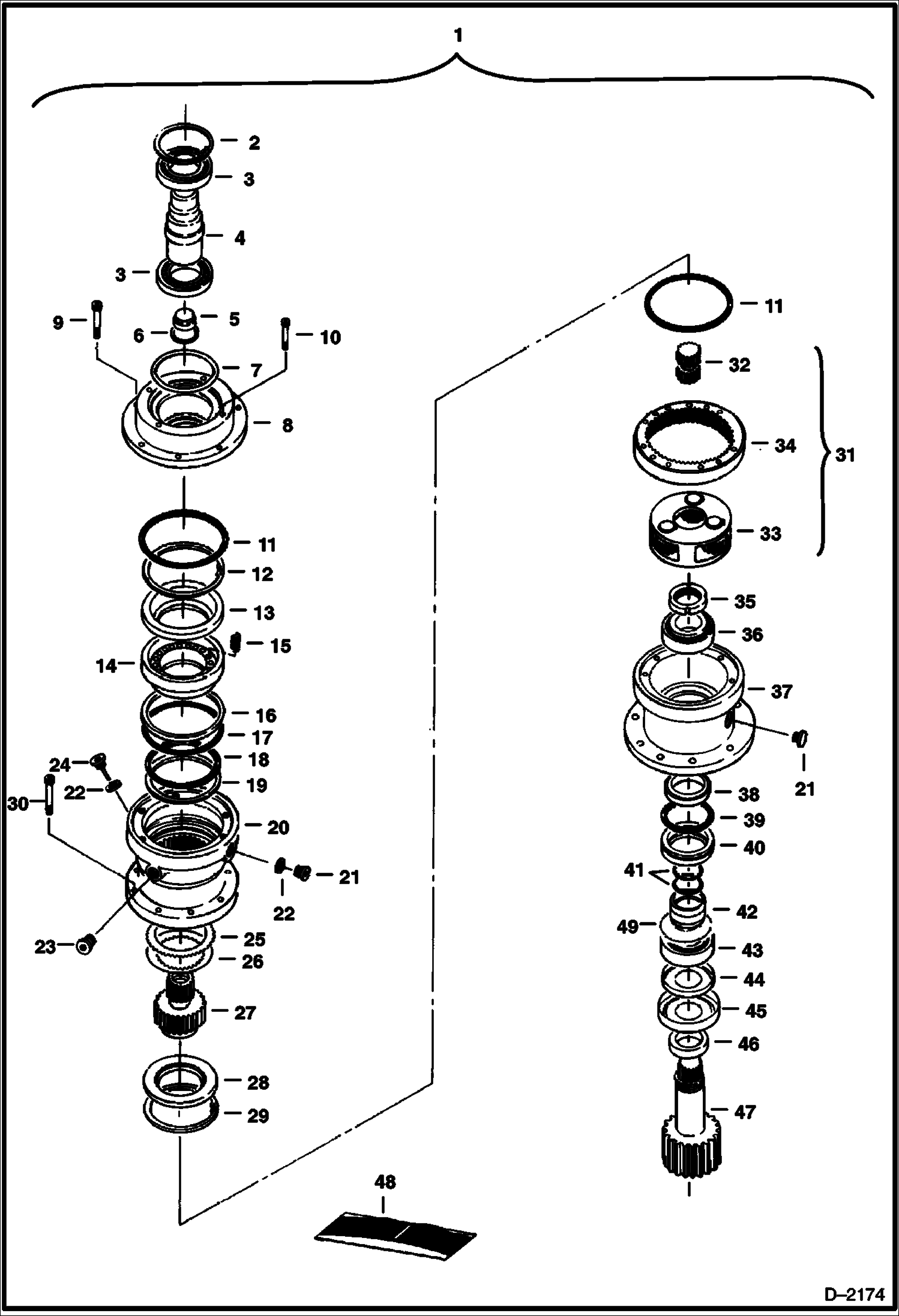

Запчасти Bobcat 231 SWING TRANSMISSION (W/Brake) (For Excavators Sold in Scandinavian Countries) HYDRAULIC SYSTEM

1

MOTOR See Illustration SWING MOTOR/ B18569 See Illustration SWING MOTOR/ C3252 swing

1

TRANSMISSION NLA - Use 6657202 - Swing With Brakes - W/Refs. 2-48 - Was 6539563 - A

2

6658408

SNAP RING

3

6658406

BEARING

4

6658407

COUPLING

5

6658409

SPACER

6

6658405

SNAP RING

7

6658404

O-RING

8

6658402

FLANGE

9

6658449

BOLT

10

6658403

BOLT

11

6658401

O-RING

12

6658459

SNAP RING

13

6658458

SPACER

14

6658456

PISTON

15

6658457

SPRING

16

BACK-UP RING NSS - included W/Ref. 48

17

O-RING NSS - included W/Ref. 48

18

O-RING NSS - included W/Ref. 48

19

BACK-UP RING NSS - included W/Ref. 48

20

6658461

HOUSING

21

6658393

PLUG

22

6658450

WASHER

23

6658462

PLUG

24

6658460

PLUG oil level check

25

6658463

DISC external tooth

26

6658464

DISC internal tooth

27

6658465

GEAR

28

6658466

SPACER

29

6658467

SNAP RING

30

6658449

BOLT

31

6660662

GEAR ASSY. W/Refs. 11(2) & 32-34

32

GEAR NSS

33

GEAR ASSY. NSS - planetary

34

GEAR NSS

35

6658395

NUT

36

6658394

BEARING

37

6658392

HOUSING

38

6658391

SEAL

39

6658390

O-RING

40

6658389

RING

41

6658388

O-RING

42

6658387

SPACER

43

6658386

BEARING

44

6658385

RING

45

6658384

COVER

46

6658396

SPACER

47

6660661

SHAFT

48

6658451

SEAL KIT W/Refs. 16-19

49

13EM4561

SHIM bearing (0.039'' - 0,10 mm thick)
