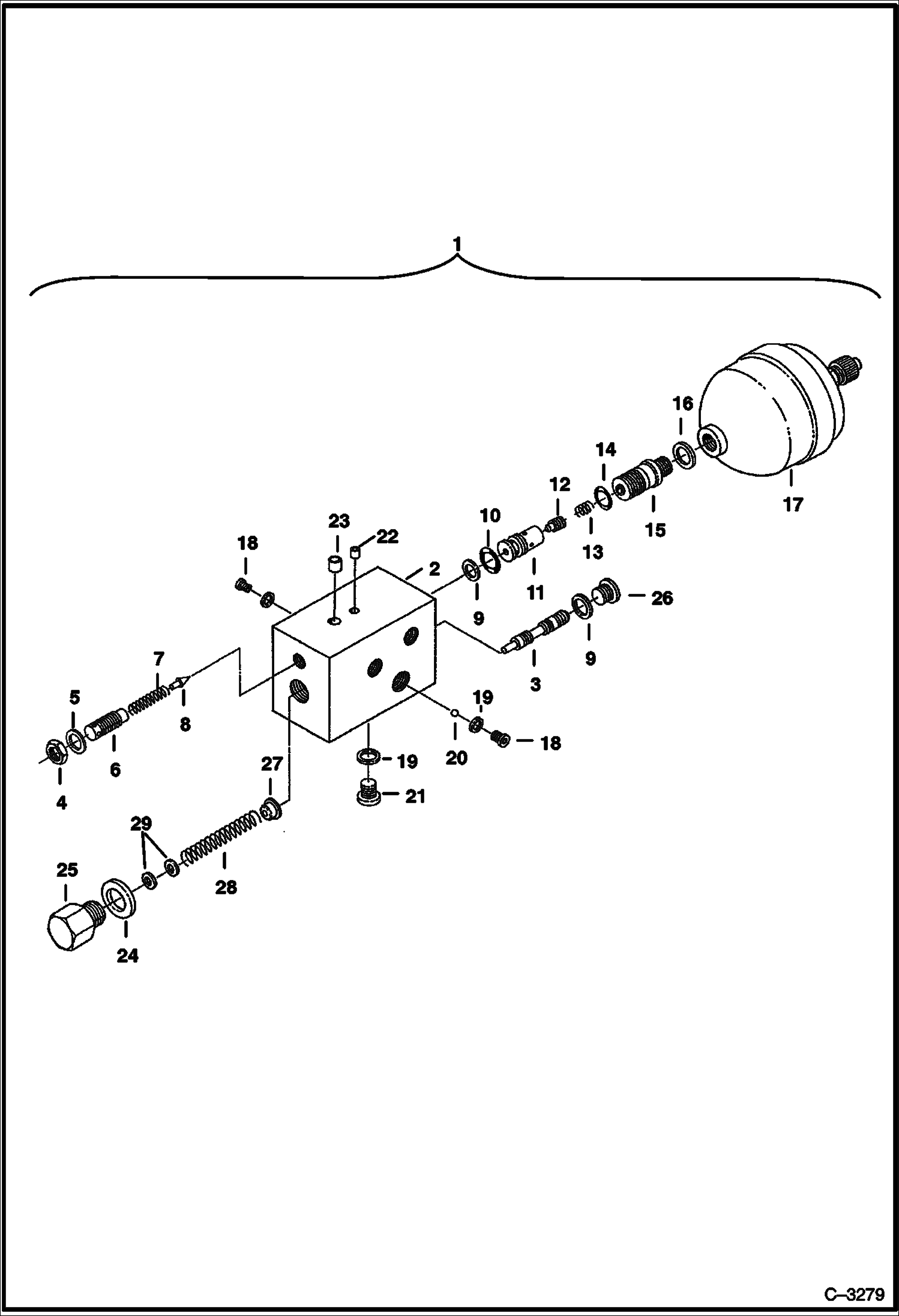

Запчасти Bobcat 231 ACCUMULATOR VALVE HYDRAULIC SYSTEM

1

6657208

VALVE ASSY. Assy. - W/Ref. 2-27

2

HOUSING NSS

3

SPOOL NSS

4

6660535

NUT

5

6660534

WASHER

6

6660533

SCREW

7

6660524

SPRING

8

VALVE NLA - Needle - Was 6660523 - A

9

6660531

WASHER Copper

10

O-RING NLA - Was 6660522 - A

11

6660529

SEAT Check Valve

12

6660521

CHECK VALVE

13

6660528

SPRING

14

6660527

O-RING

15

6660526

ADAPTER

16

SEAL NLA - Was 6660525 - A

17

6661381

ACCUMULATOR

18

6660539

PLUG

19

6660542

WASHER Copper

20

6660540

BALL

21

6660541

PLUG

22

PLUG NLA - small - Was 6660530 - A

23

6660532

PLUG Large

24

6660537

WASHER

25

6660538

PLUG

26

6660536

PLUG

27

6671032

RETAINER Spring

28

6671033

SPRING

29

6671034

SHIM
