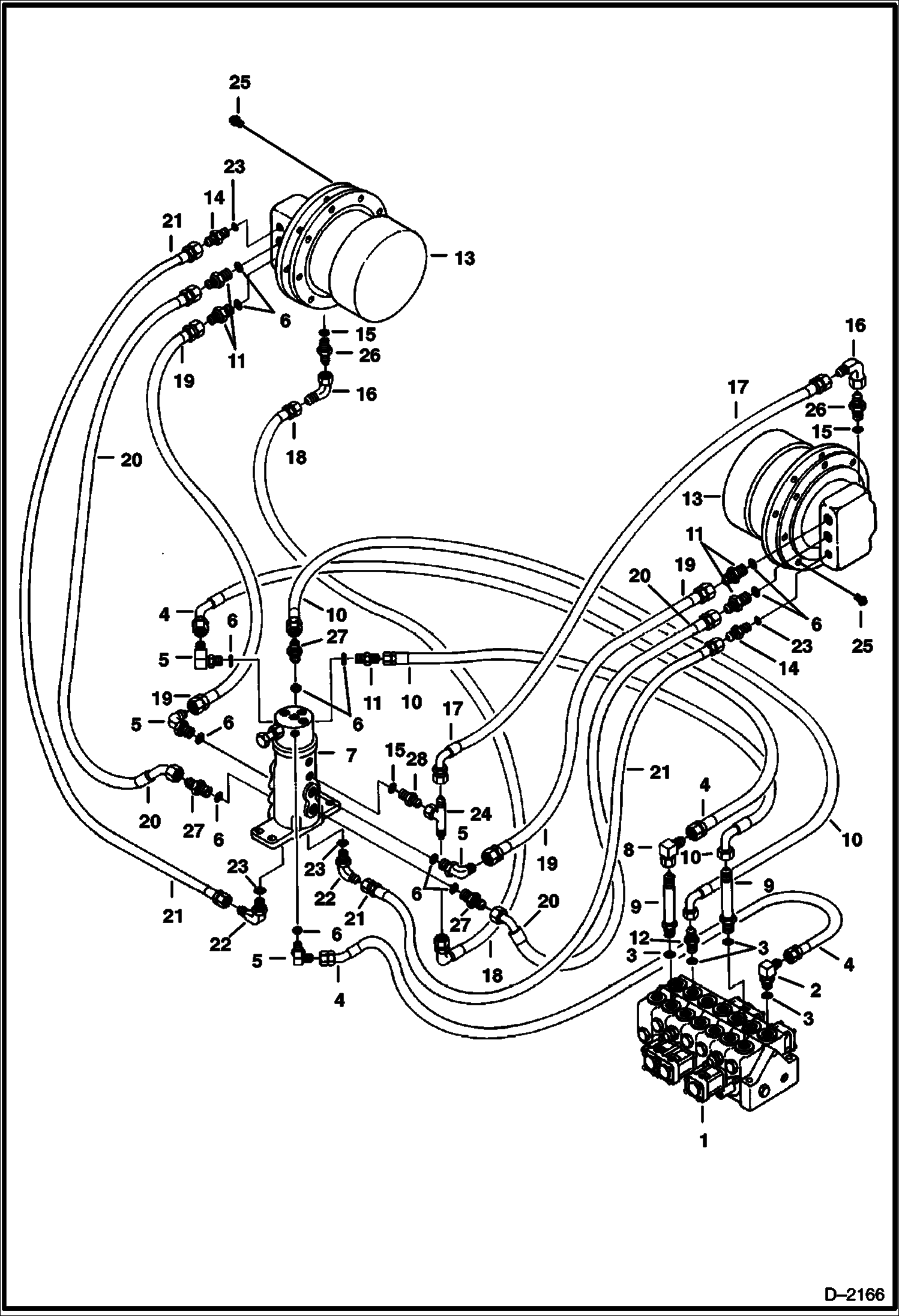

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Valve to Travel Motors) (S/N 12001 - 12380) HYDRAULIC SYSTEM

1

VALVE See Illustration 6 SPOOL VALVE/ D2225 assy

2

784568

ELBOW W/Ref. 3

3

79K10

O RING 10

4

6539834

HOSE

5

6654893

ELBOW W/Ref. 6 - Use W/swivel joint 6659566

5

17K6

ELBOW W/Ref. 6 - Use W/swivel joint 6664415

6

6655245

O-RING

7

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057

8

11K6

UNION

9

6646581

CONNECTOR W/Ref. 3

10

6539835

HOSE

11

6655835

ADAPTER W/Ref. 6

12

731794

CONNECTR W/Ref. 3

13

MOTOR See Illustration TRAVEL MOTOR/ D2172 drive

14

6654895

ADAPTER W/Ref. 23

15

6655250

O-RING

16

11K5

FITTING

17

6618198

HOSE

18

6532638

HOSE

19

6539849

HOSE

20

6539850

HOSE

21

6534012

HOSE

22

6657392

ELBOW W/Ref. 23 - Use W/swivel joint 6659566

22

17K5

ELBOW W/Ref. 23 - Use W/swivel joint 6664415

23

6655244

O-RING

24

14K5

TEE

25

1CM1235

BOLT

26

6654375

ADAPTER W/Ref. 15

27

6655835

ADAPTER W/Ref. 6 - Use W/swivel joint 6659566

27

15K6

ADAPTER W/Ref. 6 - Use W/swivel joint 6664415

28

6654895

ADAPTER W/Ref. 15 - Use W/swivel joint 6659566

28

15K6

ADAPTER W/Ref. 15 - Use W/swivel joint 6664415
