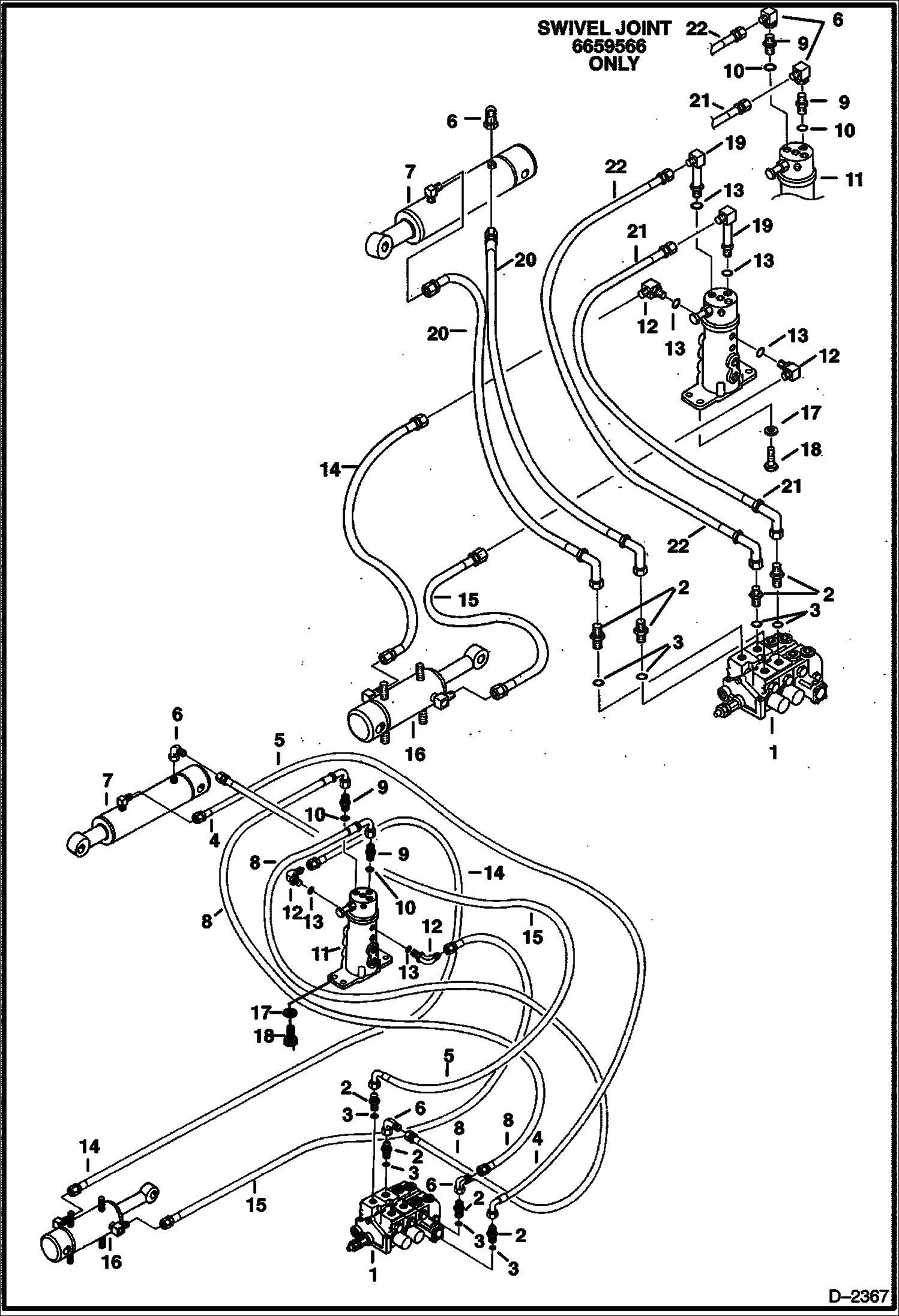

Запчасти Bobcat 231 HYDRUALIC CIRCUITRY (Valve to Blade Cylinder to Swing Cylinder) HYDRAULIC SYSTEM

1

VALVE See Illustration 6 SPOOL VALVE/ D2225 assy

2

743108

FITTING W/Ref. 3

3

79K8

O RING 10

4

HOSE See BTIE-044 NLA - Was 6537629 - A

5

HOSE See BTIE-044 NLA - Was 6537630 - A

6

11K5

FITTING Use W/swivel joint 665956 only

7

CYLINDER See Illustration SWING CYLINDER/ C3287 See Illustration SWING CYLINDER/ C3287A boom swing

8

HOSE See BTIE-044 NLA - Was 6537631 - A

9

6654895

ADAPTER W/Ref. 10 - Use W/swivel joint 6659566

9

15K5

FITTING W/Ref. 10 - Use W/swivel joint 6664415

10

6655250

O-RING

11

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057

12

6657392

ELBOW See BTIE-026 W/Ref. 13 - Use W/swivel joint 6659566

12

17K5

ELBOW W/Ref. 13 - Use W/swivel joint 6664415 - 37 degree flare

13

6655244

O-RING

14

6628365

HOSE See BTIE-044 Was 6589624 - A

15

6628364

HOSE See BTIE-044 Was 6589623 - A

16

CYLINDER See Illustration BLADE CYLINDER/ B18901 See Illustration BLADE CYLINDER/ B18901A blade

17

6EM120

WASHER

18

1CM1230

BOLT

19

6558510

ELBOW W/Ref. 13

20

6537631

HOSE

21

6640724

HOSE Was 6640744 - D

22

6539087

HOSE
