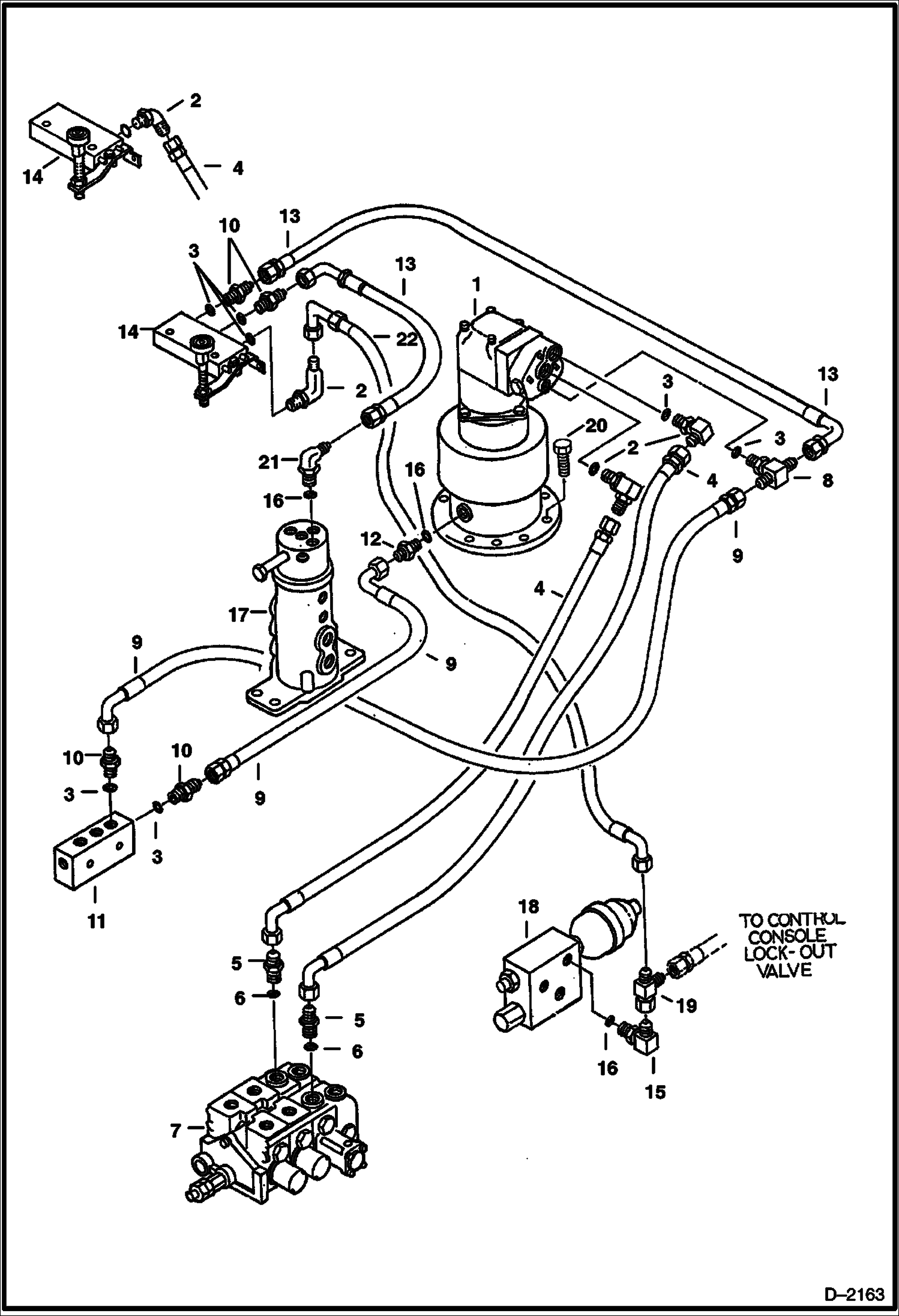

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Valve to Swing Motor to 2 Speed Valve) (S/N 12001-12468) HYDRAULIC SYSTEM

1

MOTOR See Illustration SWING TRANSMISSION/ D2174 swing

2

17K5

ELBOW W/Ref. 3

3

79K6

O RING 10

4

6640724

HOSE See BTIE-044 for hose from two speed valve to accumulator

5

743108

FITTING W/Ref. 6

6

79K8

O RING 10

7

VALVE See Illustration 6 SPOOL VALVE/ D2225 ASSY.

8

19K5

FITTING W/Ref. 3

9

6539841

HOSE

10

15K5

FITTING W/Ref. 3

11

6539695

MANIFOLD drain

12

6538386

CONNECTOR W/Ref. 16

13

6618195

HOSE

14

6539555

VALVE See Illustration 2 SPEED VALVE/ B18898 2 speed

15

6657392

ELBOW W/Ref. 16

16

6655244

O-RING

17

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057

18

VALVE See Illustration ACCUMULATOR VALVE/ C3279 accumulator

19

13K5

TEE

20

1CM1225

BOLT

21

6657392

ELBOW W/Ref. 16 - Use W/swivel joint 6659566

21

17K5

ELBOW W/Ref. 3 - Use W/swivel joint 6664415

22

6628152

HOSE See BTIE-044
