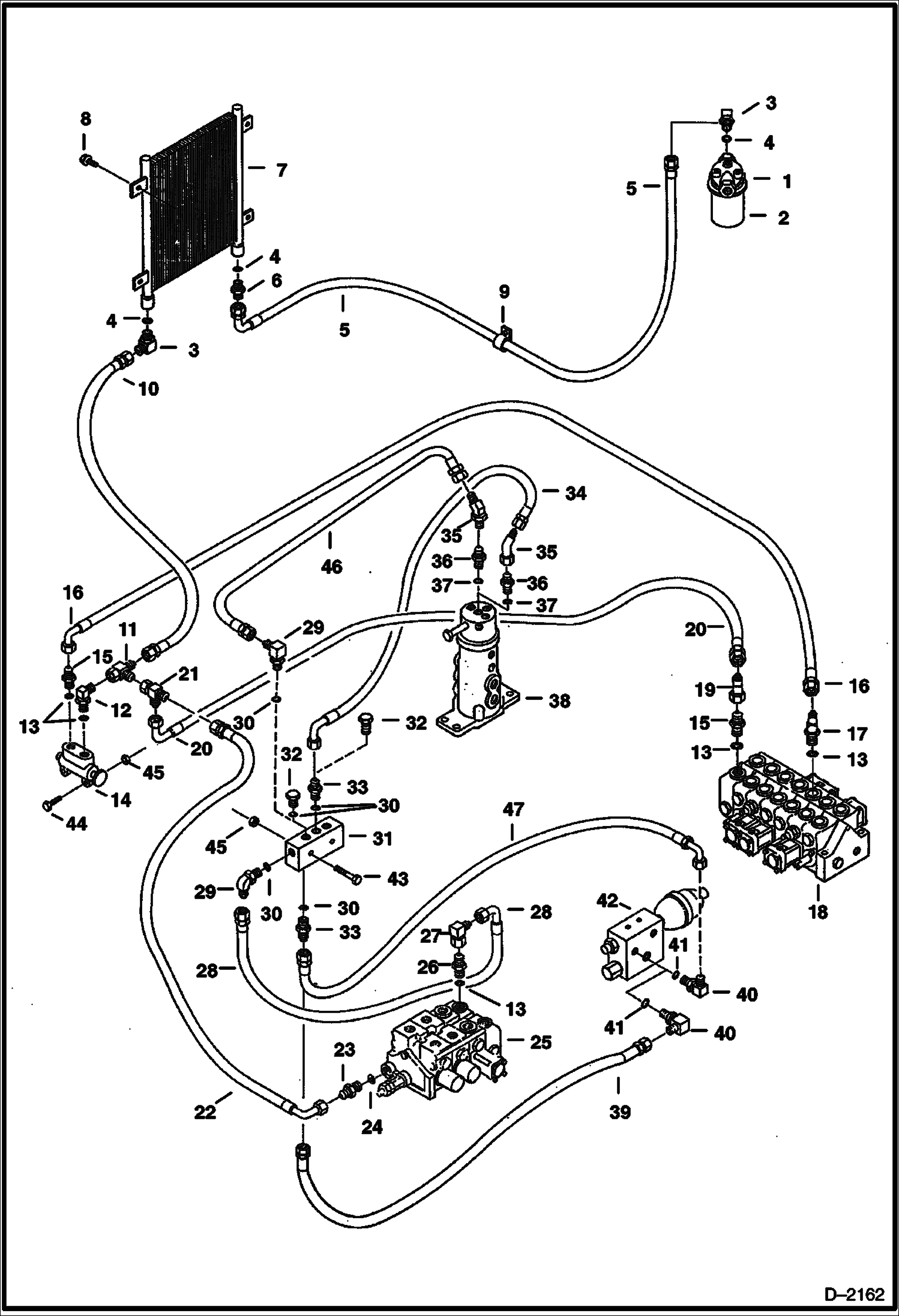

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Valves to Oil Cooler to Filter) HYDRAULIC SYSTEM

1

6654897

FILTER ASSY assy. - W/Ref. 2

2

6653336

ELEMENT filter

3

17K10

FITTING W/Ref. 4

4

79K16

O RING 10

5

6539848

HOSE

6

15K10

ADAPTOR W/Ref. 4

7

6660076

OIL COOLER

8

29CM816

SCREW

9

30H60

CLIP

10

6539847

HOSE

11

13K10

TEE

12

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 1300309 - A

12

17KB1612

FITTING, HYD ELBOW W/Ref. 13 - flat boss face

13

79K12

O RING 10

14

VALVE See Illustration 2 SPEED VALVE/ B18898 ASSY.

15

15K8

FITTING W/Ref. 13

16

6539846

HOSE

17

17K8

FITTING W/Ref. 13

18

VALVE See Illustration 6 SPOOL VALVE/ D2225 ASSY.

19

11K8

ELBOW

20

6584679

HOSE

21

6539795

TEE

22

6539839

HOSE

23

15K7

FITTING W/Ref. 24

24

79K10

O RING 10

25

VALVE See Illustration 6 SPOOL VALVE/ D2225 assy

26

CONNECTOR NLA - W/Ref. 13 - tapered boss face - Was 755054B - A

26

15KB0812

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

27

43K5

ADAPTER

27

11K6

UNION

28

6539840

HOSE

29

17K5

ELBOW W/Ref. 30

30

79K6

O RING 10

31

6539695

MANIFOLD drain

32

24K5

PLUG W/Ref. 30

33

15K5

FITTING W/Ref. 30

34

HOSE See BTIE-044 NLA - Was 6539841 - A

35

12K5

ADAPTER 45 degrees

36

6654895

ADAPTER W/Ref. 37 - Use W/swivel joint 6659566

36

15K5

FITTING W/Ref. 30 - Use W/swivel joint 6664415

37

6655250

O-RING

38

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057 See Illustration SWIVEL JOINT/ D2157

39

HOSE See BTIE-044 NLA - Was 6534012 - A

40

6657392

ELBOW W/Ref. 41

41

6655244

O-RING

42

VALVE See Illustration ACCUMULATOR VALVE/ C3279 accumulator

43

1CM855

BOLT

44

1CM845

BOLT

45

1DM8

NUT

46

6628153

HOSE

47

6618193

HOSE
