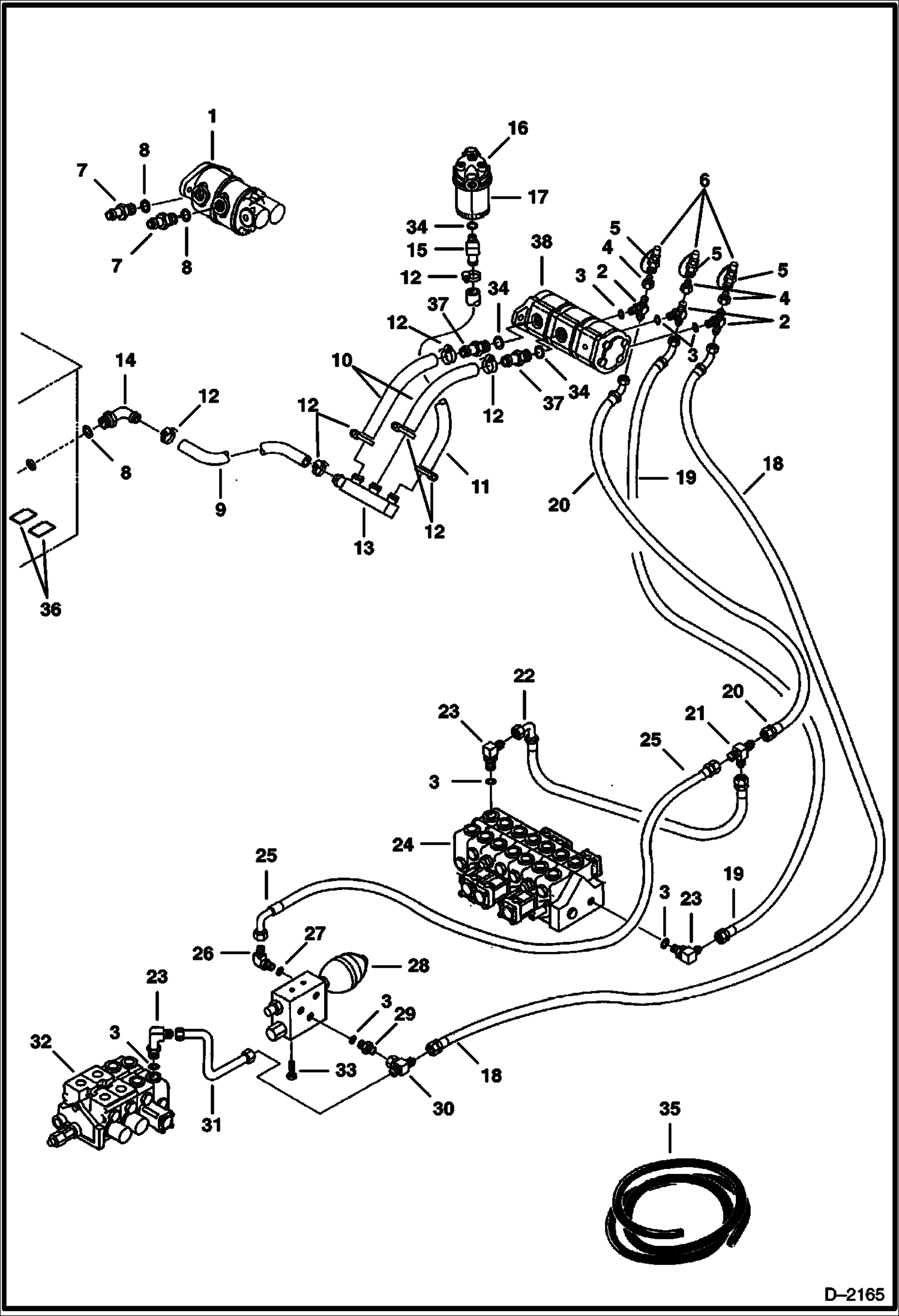

Запчасти Bobcat 231 HYDRAULIC CIRCUITRY (Tank to Pump to Valves) HYDRAULIC SYSTEM

1

PUMP See Illustration TRIPLE GEAR PUMP/ B18651 NLA

2

19K7

TEE W/Ref. 3

3

79K10

O RING 10

4

784244

ADAPTOR

5

6646635

COUPLER diagnostic

6

6630367

CAP dust

7

557492

ADAPTER W/Ref. 8

8

79K20

O RING 10

9

HOSE NLA - 39'' (991 mm) long - Order Ref. 35

10

HOSE NLA - 12'' (305 mm) long - Order Ref. 35

11

HOSE NLA - 25 1/2'' (648 mm) long - Order Ref. 35

12

42H24

CLAMP-5

13

6539793

MANIFOLD

14

6535627

ELBOW W/Ref. 8

15

1312337

ELBOW W/Ref. 34 - Was 6539794 - A

16

6654897

FILTER ASSY assy. - W/Ref. 17

17

6653336

ELEMENT filter

18

6539836

HOSE

19

6539837

HOSE

20

6539838

HOSE

21

10K7

TEE

22

6539866

HOSE

23

17K7

ELBOW

24

VALVE See Illustration 6 SPOOL VALVE/ D2225 assy

25

6539851

HOSE

26

6654893

ELBOW W/Ref. 27

27

6655245

O-RING

28

VALVE See Illustration ACCUMULATOR VALVE/ C3279 accumulator

29

6660343

CONNECTOR W/Ref. 3

30

14K7

TEE

31

6539852

TUBE

32

VALVE See Illustration 6 SPOOL VALVE/ D2225 assy

33

1CM816

BOLT

34

79K16

O RING 10

35

6673825

HOSE 1 1/4'' (32mm) bulk - Order Per Foot - Was 1310909B - A

36

6662317

MAGNET Inside hydraulic tank

37

6587972

FITTING W/Ref. 34

38

6666930

PUMP, GEAR TRIPLE See Illustration TRIPLE GEAR PUMP/ B13917 Was 6662769 - A
