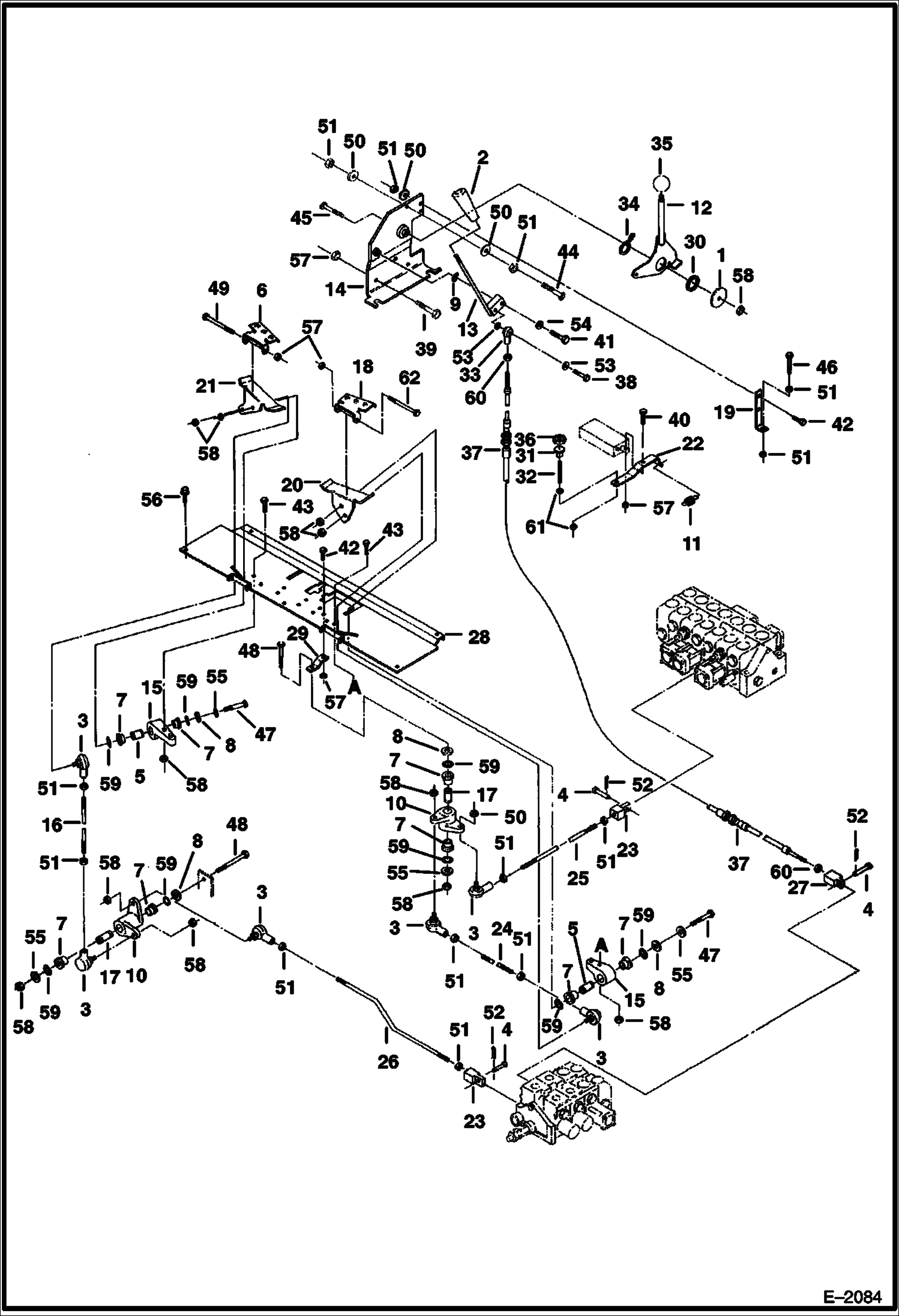

Запчасти Bobcat 231 BLADE, BOOMSWING, AUXILIARY & THROTTLE CONTROLS CONTROLS

1

616789

WASHER

2

6510093

HANDLE GRIP blade lever

3

6536531

BALL JOINT

4

6536543

PIN

5

6536545

SLEEVE

6

6536798

PEDAL LOCK pedal lock

7

6536801

BUSHING

8

6536802

WASHER

9

6536803

WASHER wave

10

6536831

LEVER bellcrank

11

SPRING NLA - Was 6537016 - A

12

6537423

LEVER throttle

13

6537426

LEVER blade

14

6537432

BRACKET

15

6537481

MOUNT

16

6537485

ROD

17

6537487

SLEEVE

18

6537640

PLATE pedal lock

19

6537647

ANGLE

20

6589586

PEDAL Was 6538890 - A

21

6589587

PEDAL Was 6538891 - A

22

6539557

LEVER

23

6539696

LINK

24

6539697

ROD

25

6539698

ROD

26

6539710

ROD

27

6539816

LINK

28

6539831

PLATE control mounting

29

6539900

BRACKET

30

6567962

WASHER friction

31

6583780

KNOB 2 speed - Was 6533780 - D

32

6539784

ROD

33

6593671

CONNECTOR

34

6630945

WASHER wave

35

6631564

KNOB speed control

36

6647642

CAP

37

6657715

CABLE

38

1CM620

BOLT

39

1CM816

BOLT

40

1CM835

BOLT

41

1CM1016

SCREW

42

1CM1020

BOLT

43

1CM1025

BOLT

44

1CM1035

BOLT

45

1CM1040

BOLT

46

1CM1050

SCREW

47

1CM1055

BOLT

48

1CM1070

BOLT

49

1CM8100

SCREW

50

15EM100

WASHER

51

1DM10

NUT

52

1F212

PIN

53

15EM60

WASHER

54

17EM100

WASHER

55

27E6

WASHER 5

56

29CM1030

BOLT

57

39DM8

NUT

58

49DM10

NUT

59

58K015

O-RING 10

60

62D4

NUT

61

62D8

NUT

62

1CM890

BOLT
