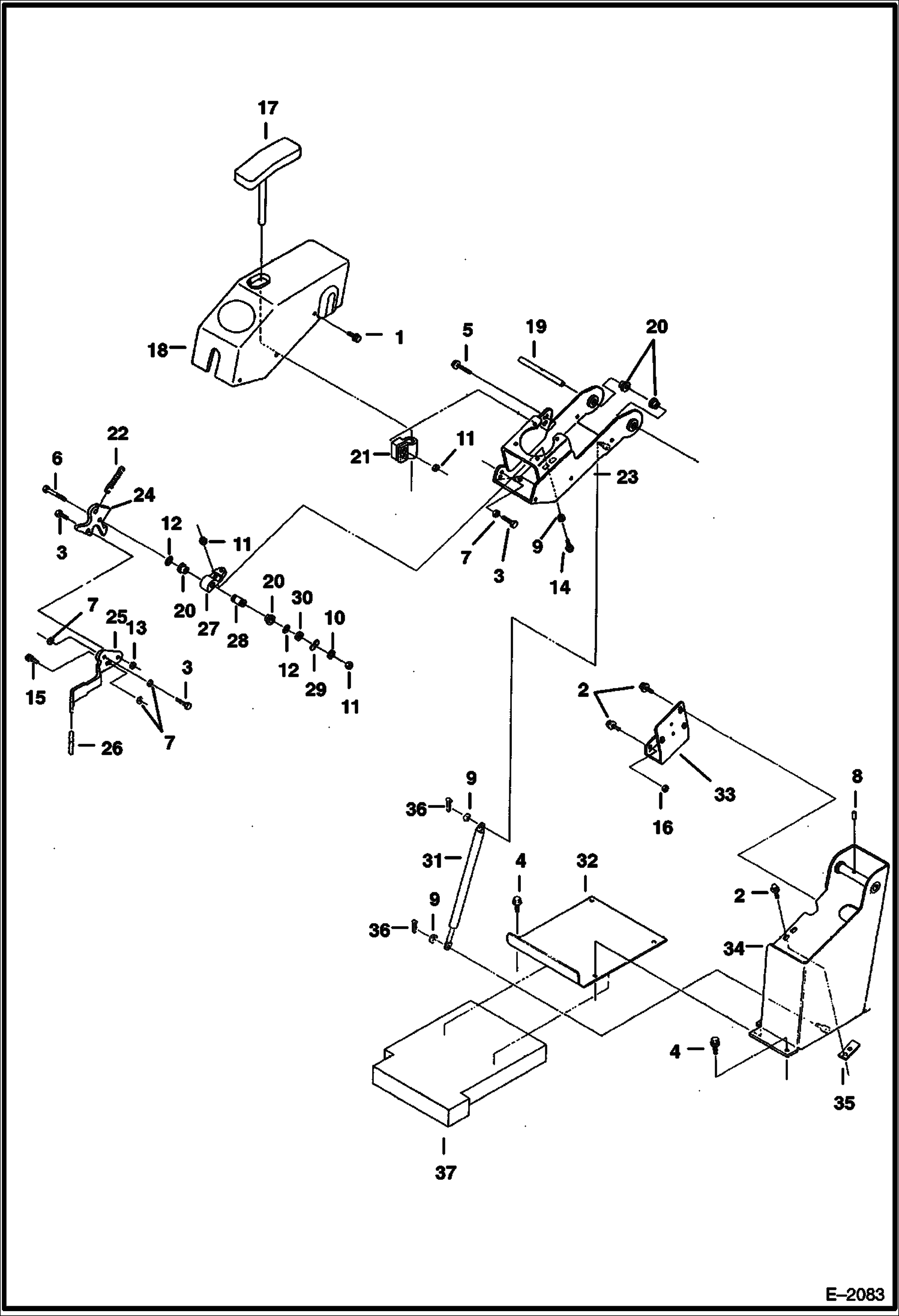

Запчасти Bobcat 231 CONTROL CONSOLE (Left Hand) CONTROLS

1

29CM616

BOLT

2

29CM816

SCREW

3

1CM830

BOLT

4

29CM1030

BOLT

5

1CM1045

BOLT

6

1CM1060

BOLT

7

1DM8

NUT

8

14J1820

PIN

9

15EM100

WASHER

10

27E6

WASHER 5

11

39DM10

NUT

12

58K015

O-RING 10

13

39DM8

NUT

14

1CM1030

BOLT

15

3GM820

SCREW Was 36M-820 - D

16

42DM8

NUT

17

6537510

ARM REST

18

6597752

COVER Was 6537553 - A

19

6537549

PIN

20

6536801

BUSHING

21

6537514

MOUNT arm rest

22

6535500

SPRING

23

6537691

CONSOLE pivot

24

6538335

LATCH

25

6538336

HANDLE

26

KNOB NLA - Was 6537562 - A

27

6537481

MOUNT

28

6536545

SLEEVE

29

6536803

WASHER wave

30

6536802

WASHER

31

6655965

CYLINDER gas spring

32

6537597

FLOOR PLATE

33

6538739

BRACKET support

34

6534018

CONSOLE L.H.

35

6537692

PLATE

36

13JM20025

COTTERPIN

37

6587617

INSULATION
