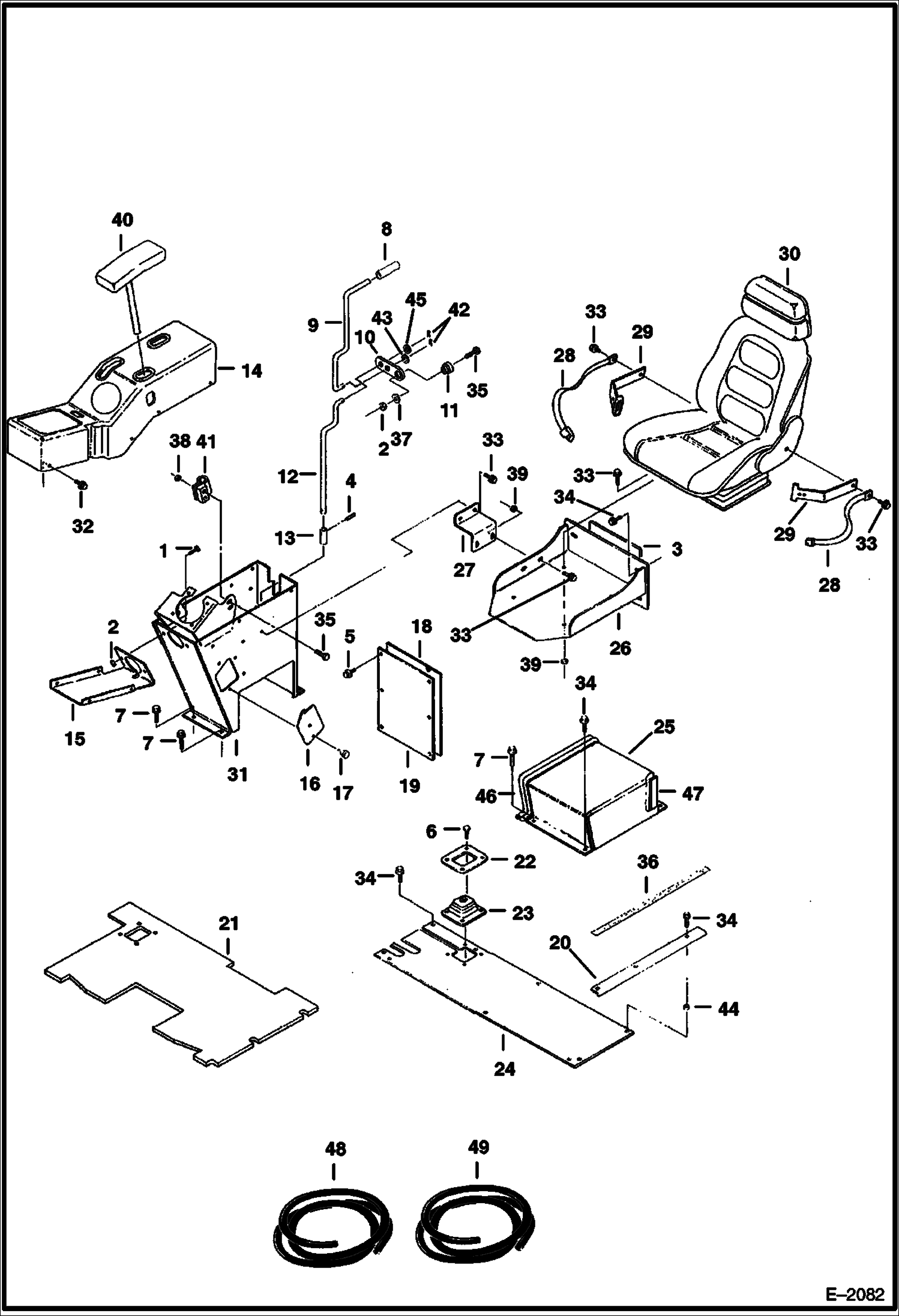

Запчасти Bobcat 231 CONTROL CONSOLE, FLOORBOARDS AND SEAT CONTROLS

1

1CM1020

BOLT

2

1DM10

NUT

3

6587155

INSULATION Was 6536193 - A

4

14J1820

PIN was 14K001820B - D

5

29CM820

SCREW

6

1CM512

BOLT

7

29CM1020

BOLT

8

KNOB NLA - Was 6658108 - A

9

6539766

ROD

10

6586716

PLATE Was 6539768 - A

11

6539769

BUSHING

12

6586765

ROD Was 6539767 - A

13

6586717

PIN swing lock - Was 6533957 - B

14

6596556

COVER See BTIE-041 - for ignition switch hole information - Was 6588771 - A

15

6537528

BRACKET gauge panel

16

6537544

COVER

17

6631000

THUMBSCREW

18

6587616

INSULATION Was 6536194 - A

19

6535628

PANEL

20

6537621

ANGLE

21

6539792

FLOORMAT cab

21

6539198

FLOORMAT canopy

22

6585301

RETAINER boot

23

BOOT NLA - Was 6585347 - A

24

6539790

PLATE floorboard

25

6587618

COVER swing motor - Was 6586944 - A

26

6538710

MOUNT

27

6539826

BRACKET support

28

6564774

SEAT BELT

29

GUIDE NLA - assy. - seat belt - Order 6539095, (2) 6630207 & (2) 6565355 - Was 6539096 - A

29

STRAP NSS - belt guide - Order (2) 6539095, (2) 6630207 & 6565355

29

GUIDE NLA - yellow plastic - Order 6703703 - Was 6565355 - A

29

6630207

RIVET 5 Was 1662965 - A

30

SEAT - NLA - assy - cloth covered - Order 6685657, redrill mounting holes as required - Was 6672519 - A

31

6539785

CONSOLE R.H.

32

29CM616

BOLT

33

29CM816

SCREW

34

29CM1030

BOLT

35

1CM1045

BOLT

36

6593245

TREAD

37

27E6

WASHER 5

38

39DM10

NUT

39

42DM8

NUT

40

6537510

ARM REST

41

6537514

MOUNT arm rest

42

13JM20025

COTTERPIN

43

15EM120

WASHER

44

6503451

SPACER

45

15EM160

WASHERS

46

SEAL NLA - 24'' (600mm) long - Order Ref. 48

47

INSULATION NLA - 6'' (153mm) long - Order Ref. 49

48

6513152

SEAL bulk - sold per foot

49

SEAL NLA - bulk - sold per foot - Was 6632217 - B
