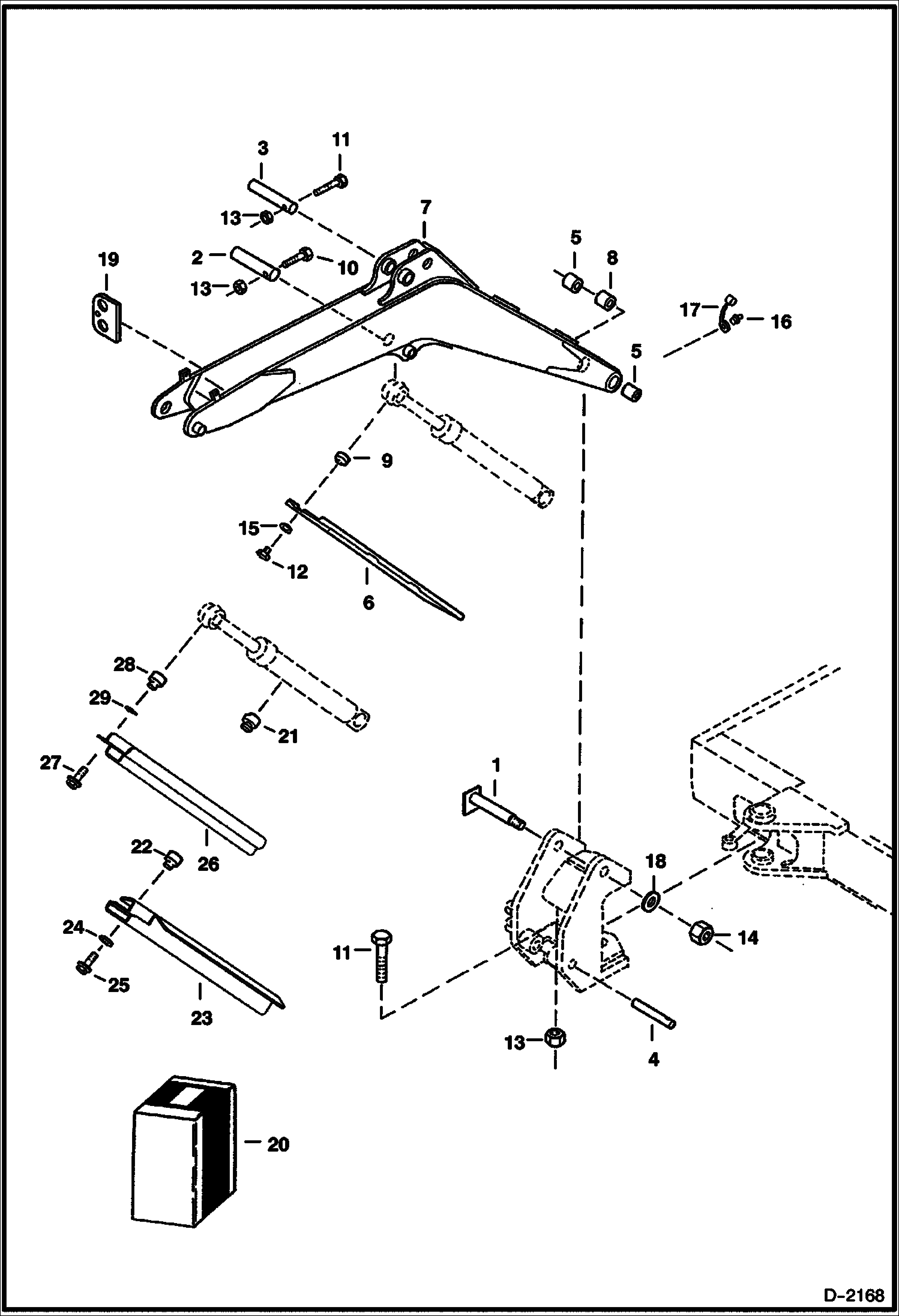

Запчасти Bobcat 231 BOOM WORK EQUIPMENT

1

6539197

PIN

2

6539100

PIN

3

6539101

PIN

4

6539534

PIN Was 6539472 - D

5

6539110

BUSHING, PRESS FIT

6

6539263

SHIELD

7

6539114

BOOM

8

6535976

TUBE

9

6539264

SPACER

10

1CM1070

BOLT

11

1CM1080

BOLT

12

7CM1255

BOLT Was 1CM01255B - B

13

39DM10

NUT

14

39DM30

NUT

15

17EM120

WASHER

16

12H15

FITTING, GREASE 5

17

6652943

COVER grease fitting

18

1EM300

WASHER

19

6589353

PLATE Welded on the boom

20

6800329

KIT Boom Cylinder Guard - W/Refs. 21 - 25 - See Service Letter dated

21

6628788

GUIDE Boom Cylinder - Weld on

22

6800138

SPACER for Use W/Ref.23 (NLA/6596493 shield)

23

SHIELD NLA - Order 7130856 shield - also order Ref. 27-29 - Was 6596493 - A

24

15EM120

WASHER for Use W/Ref.23 (NLA/6596493 shield)

25

59CM1245

BOLT for Use W/Ref.23 (NLA/6596493 shield)

26

7130856

SHIELD, W/A

27

7131273

SCREW for Use W/Ref. 26

28

7131109

SPACER for Use W/Ref. 26

29

6536803

WASHER spring washer - for Use W/Ref 26
