Запчасти Bobcat 231 TRACK ROLLER (For All Rubber Tracks -Except for European Models) (W/ Oil Plug) UNDERCARRIAGE

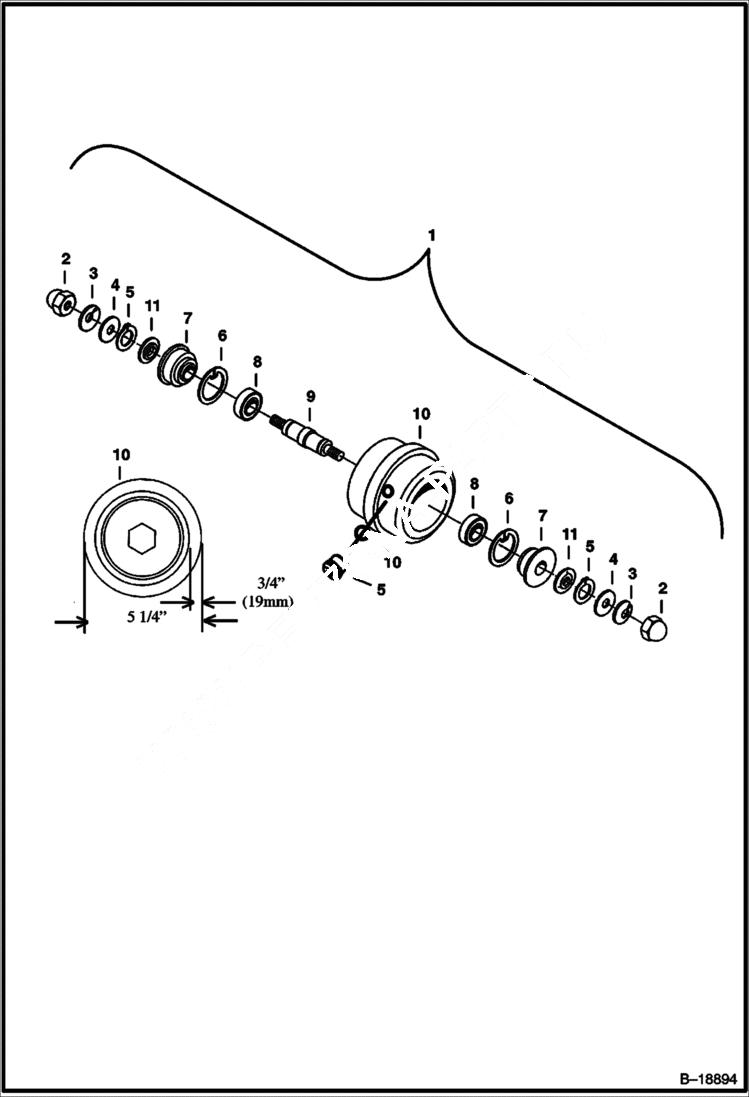

Схема запчастей Bobcat 231 - TRACK ROLLER (For All Rubber Tracks -Except for European Models) (W/ Oil Plug) UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

ROLLER ASSY - NLA - Ref. 2-11 - Was 6814882 - A

2

1DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

90K3

PLUG W/Ref. 11 - Was 90KV3 - D

6

7JM72

SNAP RING Was 6655060 - A

7

6717802

SEAL

8

6655062

BEARING

9

6810769

SHAFT Was 6807918 - A

10

6810768

ROLLER See Illustration TRACK ROLLER/ B22162 - check the outer diameter of roller before ordering parts

11

95K4

O-RING

Выбрано товаров: 11
