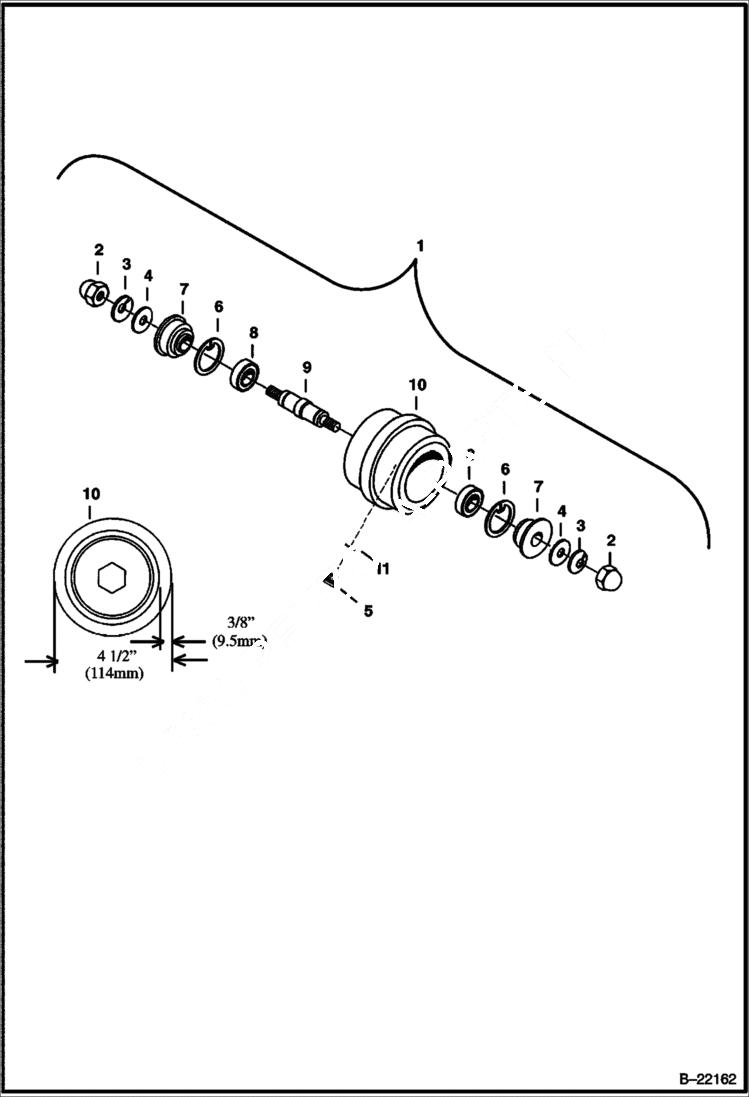

Запчасти Bobcat 231 TRACK ROLLER (For all Steel & for Rubber Tracks on European Models) (W/ Oil Plug) UNDERCARRIAGE

1

ROLLER See Illustration TRACK ROLLER/ NA2024 - NLA - Ref. 2-11 - Was 6810770 - A

2

1DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

90KV5

PLUG W/Ref. 11

6

7JM72

SNAP RING

7

6655061

SEAL

8

6655062

BEARING

9

6810769

SHAFT Was 6807918 - A

10

6810771

ROLLER ASSY See Illustration TRACK ROLLER/ B18894 - check the outer diameter of roll before ordering parts - Was 6808134 - A

11

95K4

O-RING
