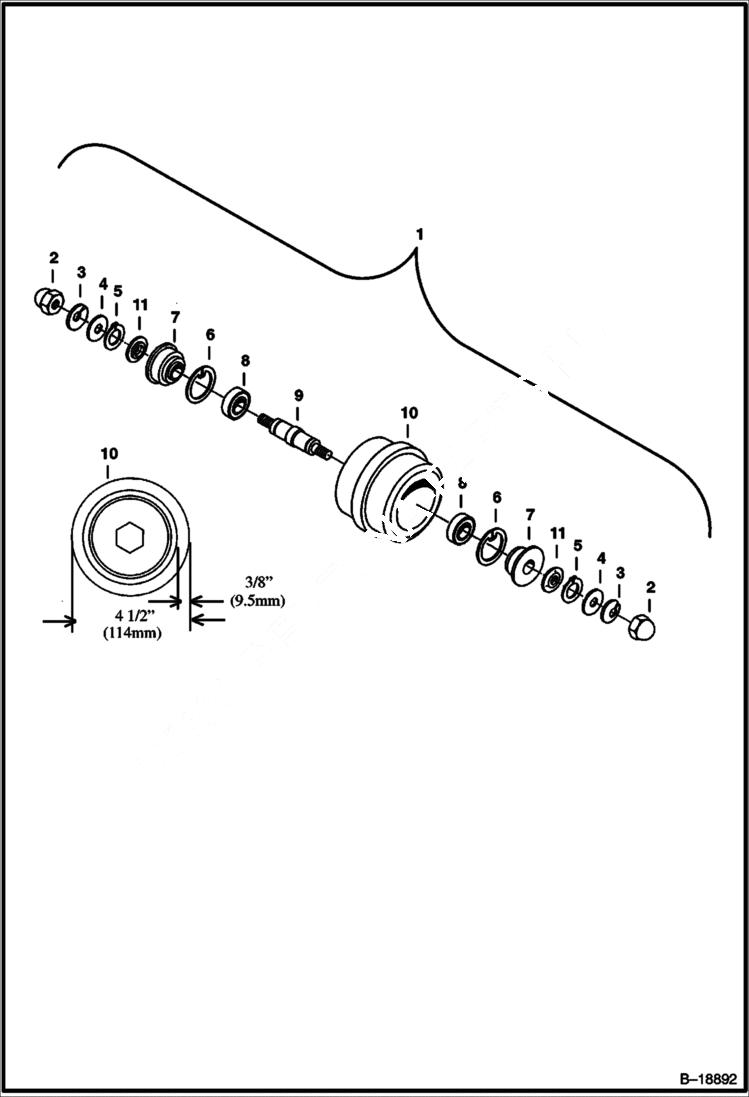

Запчасти Bobcat 231 TRACK ROLLER (For all Steel & for Rubber Tracks on European Models) (W/O Oil Plug) UNDERCARRIAGE

1

ROLLER ASSY. NLA - Assy. - Ref. 2-11 - Order 6810770 - Was 6589002 - A

2

36DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

5JM35

SNAPRING Was 6535562 - A

6

7JM72

SNAP RING Was 6535561 - A

7

6655061

SEAL

8

6655062

BEARING

9

SHAFT NLA - Order 6810770 - Was 6535562 - A

10

ROLLER See Illustration TRACK ROLLER/ B18894 - NLA - Order 6810770 - check the outer diameter of roller before ordering parts - Was 6535561 - A

11

6589646

SPACER Was 6535563 - A
