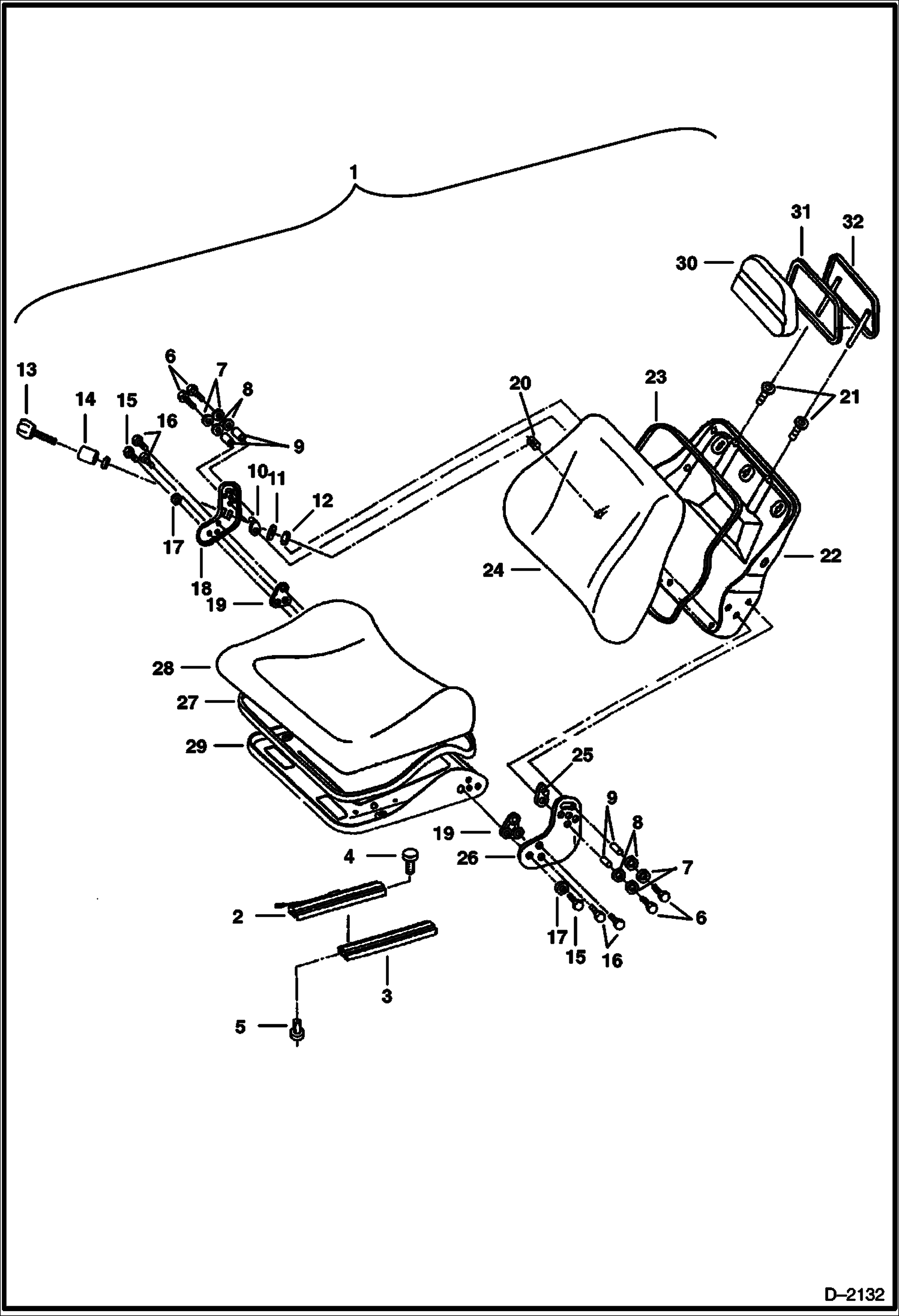

Запчасти Bobcat 231 SEAT MAIN FRAME

1

SEAT NLA - complete - cloth covered - Ref. 2-32 & Ref. 2-36 on Ill. B17486 - Order 6672519 - Was 6658850 - A

1

SEAT NLA - complete - vinyl covered - Ref. 2-32 & Ref. 2-36 on Ill. B17486 - Order 6672520 - WAS 6660414 - A

2

6659426

TRACK W/Adjuster

3

6659427

TRACK

4

6659428

SCREW

5

6659453

SCREW

6

6659430

BOLT

7

6659431

WASHER

8

6659432

WASHER

9

6659433

SPACER

10

BLOCK NLA - Was 6659434 - A

11

6659435

WASHER

12

6659436

NUT

13

6659437

SPINDLE adjustment

14

6659438

SPACER

15

6659439

BOLT

16

6659440

BOLT

17

6650477

WASHER

18

BRACKET NLA - Was 6659441 - A

19

6659442

PLATE

20

6659443

BOLT

21

6659444

BUSHING

22

6659445

SEAT BACK

23

6659446

MOLDING

24

6659447

CUSHION cloth covered

24

6670721

CUSHION vinyl

25

6659448

SPACER

26

6659449

PLATE

27

6659450

MOLDING

28

6659451

CUSHION, SEAT CLOTH seat - cloth covered

28

6664180

CUSHION seat - vinyl

29

6659452

PAN seat

30

CUSHION NLA - head rest - cloth covered - Was 6659454 - A

30

6670722

CUSHION head rest - vinyl - Was 6670722 - A

31

MOLDING NLA - Was 6659455 - A

32

6659456

HEADREST
