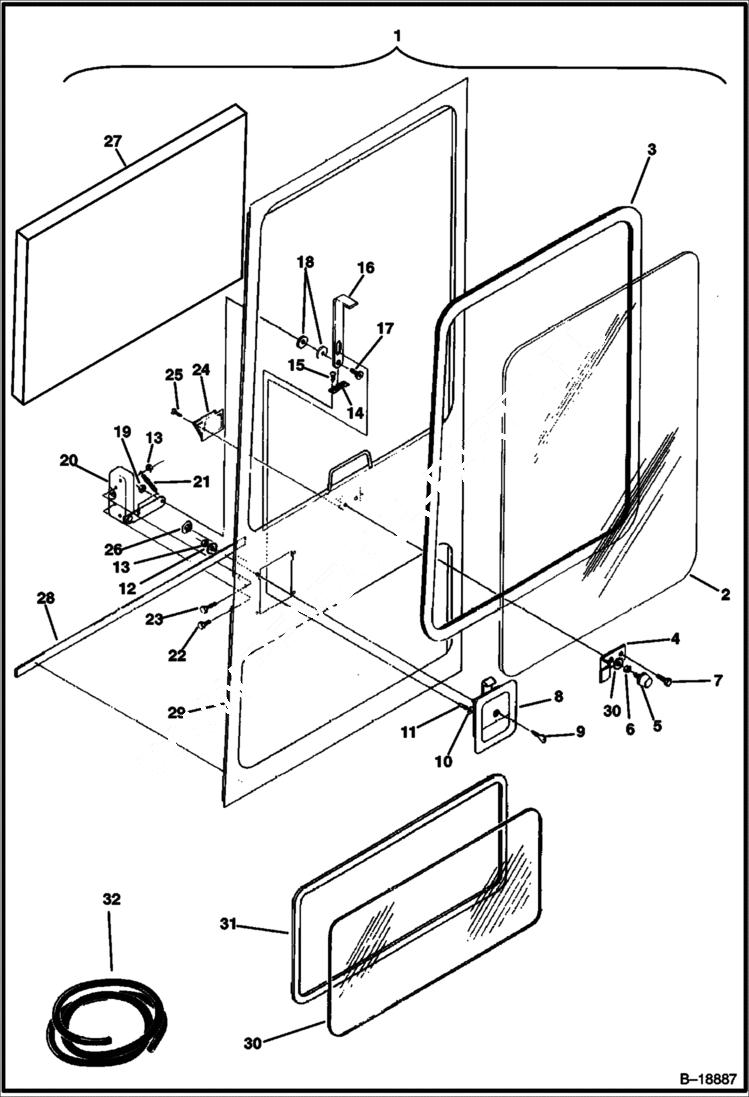

Запчасти Bobcat 231 OPERATOR CAB MAIN FRAME

1

6662022

DOOR assy. - Ref. 2-29 - Was 6654781 - D

2

6654174

GLASS

3

MOULDING NLA - 9' (2743 mm) long - Order Ref. 32

4

6657097

STRIKER Was 6654153 - D

5

6657098

BUMPER Was 45G001012B - D

6

WASHER NLA - Was 6662056 - A

7

6657099

BOLT Was 12D000010B - D

8

6648421

LATCH W/Ref. 9 - uses key LL-22 or LL-24

8

6661629

LATCH W/Ref. 9 - Uses key PK510

9

6650682

KEY LL-22

9

6650683

KEY LL-24

9

6587458

KEY PK-510

10

6EM60

WASHER, SPRING Was 6E000060B - D

11

6654154

BOLT striker

12

4E4

WASHER

13

61D4

NUT 5

14

6648413

BUSHING door

15

6632168

SCREW

16

6654171

CATCH

17

6534900

BOLT Was 6648408 - A

18

6648414

WASHER

19

85D5

NUT 5

20

6648417

LATCH

21

6654147

SPRING

22

17C412

BOLT 5

23

17C424

BOLT

24

6654785

ASH TRAY

25

6654142

SCREW

26

PLUG NLA - Was 6648354 - A

27

INSULATION NLA - used on doors without lower door glass only - Was 6654173 - A

28

6654162

SEAL

29

DOOR NLA - Order 6662022 - Was 6654786 - A

30

6662058

GLASS

31

MOULDING NLA - 6' (1829 mm) - Order Ref. 32

32

6648405

SEAL bulk - Order Per Foot
