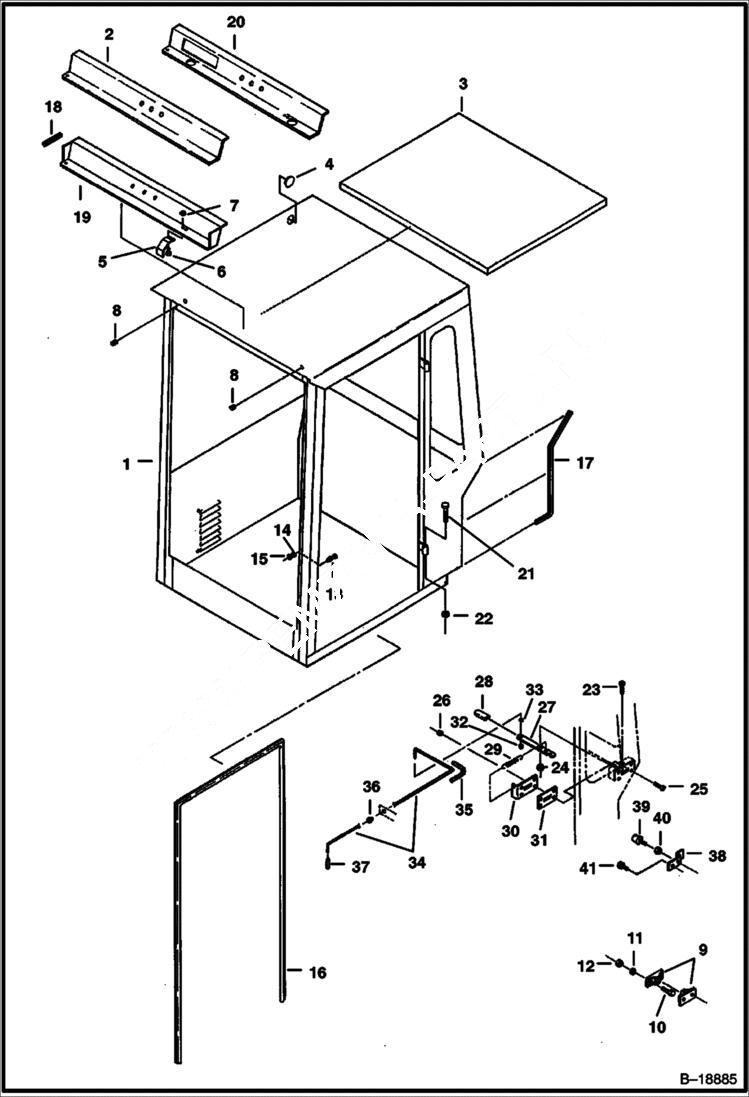

Запчасти Bobcat 231 OPERATOR CAB MAIN FRAME

1

6658284

CAB for use with fully equipped cab -Was 6654780 - A

1

6657705

CANOPY for use with bare cab

2

PANEL NLA - ontrol -w/o radio opening - Was 6658287 - A

3

6654172

INSULATION headliner

4

6654779

PLUG

5

6654177

BRACKET wiper rest

6

6532045

BOLT

7

NUT Was 6654145 - A

8

515069

GROMMET Was 6515109 - D

9

6654153

CATCH door

10

45G1012

SCREW

11

25E10

WASHER

12

12D10

NUT

13

6649483

STRIKER BOLT door latch - Was 6654170 - A

14

28E8

WASHER

15

61D7

NUT

16

SEAL NLA - Was 6654168 - A

17

6513152

SEAL bulk - sold per foot

18

6648404

TRIM edge

19

CONSOLE NLA - overhead - Order Ref. 2 - Was 6654179 - A

20

6587782

PANEL control -with radio opening

21

17C672

BOLT hinge

22

85D6

NUT, 5

23

6648408

BOLT

24

85D5

NUT 5

25

6657095

BOLT

26

6657089

NUT

27

6657094

LEVER

28

6657091

GRIP

29

6654147

SPRING

30

6657092

PLATE

31

6657088

SEAL

32

6660979

NUT

33

6660980

RETAINER retainer

34

6660976

ROD door release

35

6660977

SHIELD

36

6660975

GROMMET

37

6660978

CAP

38

6657097

STRIKER

39

6657098

BUMPER

40

61D5

NUT

41

6657099

BOLT
